A3200 CNC Operator Interface

This product is not recommended for new designs. Instead, please see the Automation1 MachineApps HMI Builder for all new designs. The Operator Interface provides a traditional CNC look and feel for operating a machine running G code.

Have questions? Contact an Aerotech expert.

Description

Specifications

Description

Path 7

Description

Specifications

Description

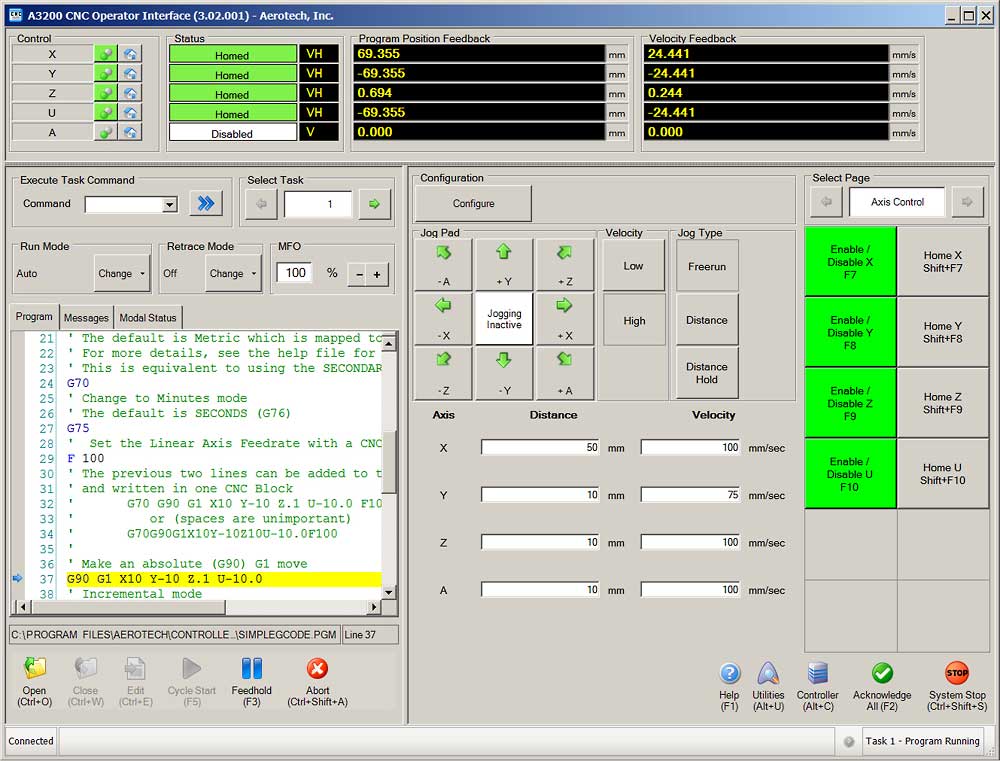

The interface provides a multi-axis readout with position, velocity shown in user units, immediate command, MFO, program scan during execution, modal status and a multi-axis jog screen. Typical cycle start, stop, feedhold and system stop buttons are included. The operator can open and load a new program, watch status and manually control the machine. All buttons are designed for use with a touchscreen or a mouse.
