A3200 iPC Intelligent Industrial PC

This product is not recommended for new designs. Instead, please see the Automation1-iPC for all new designs. The Automation1 iPC is a part of the Automation1 Precision Motion Control Platform, which includes the new Automation1 Software-Based Machine Controller and Automation1 Motion Development Kit. The A3200-iPC intelligent industrial PC is a factory-optimized PC for high-performance A3200 control systems. Built off of embedded roadmap industrial PCs and running Windows 10 Long-Term Service Branch (LTSB) operating system, the A3200-iPC is the stable, reliable, high-performance PC you’ve been looking for.

Have questions? Contact an Aerotech expert.

Description

Specifications

Dimensions

Ordering Info

Downloads

Description

Path 7

Description

Specifications

Dimensions

Ordering Info

Downloads

Description

Design Features

  • One vendor, simple selection, easy integration
  • A stable platform—embedded roadmap industrial PCs running Windows 10 LTSB
  • HyperWire™ fiber optic bus easily integrates with A3200 fiber optic drives
  • Form factor to match Aerotech’s hardware product offering
  • Intel® CORE™ i7 processor
  • HMI packages available
  • Optional EtherCAT™ and PROFINET™ interfaces
  • 512 GB solid-state disk drive

Solutions Not Problems

The PC is the heart of your industrial control system. Picking the right industrial PC has risk associated with it. Why create a problem? Instead, invest in a solution: the A3200-iPC intelligent industrial PC.

All A3200-iPC products are shipped with a fully tested and verified installation of Aerotech’s A3200 motion controller.

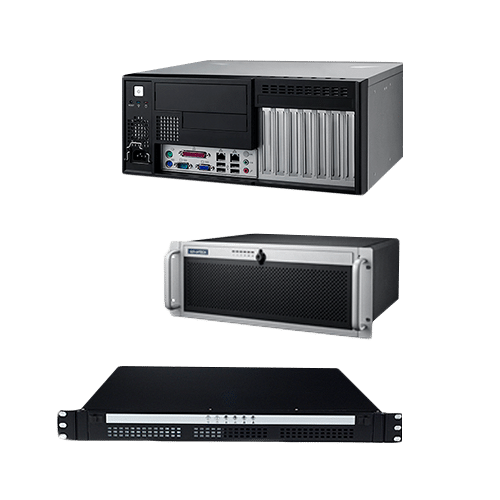

Aerotech’s lineup of industrial PCs include 1U rack mount PCs, 4U rack mount PCs, and Desktop PCs.

System Integration Made Easy

The A3200-iPC works right out of the box, greatly reducing integration hours spent on your machine build. All Windows 10 optimizations, bios settings, and installation settings for A3200 are handled by the professionals at Aerotech, greatly reducing the burden on your development team.

Fieldbus Support

Communicate with EtherCAT or PROFINET I/O devices with an optional universal dual-port Ethernet adapter. A real-time enabled Ethernet port can also be installed to communicate with intelligent cameras and other peripherals through Modbus®/TCP.

Dimensions

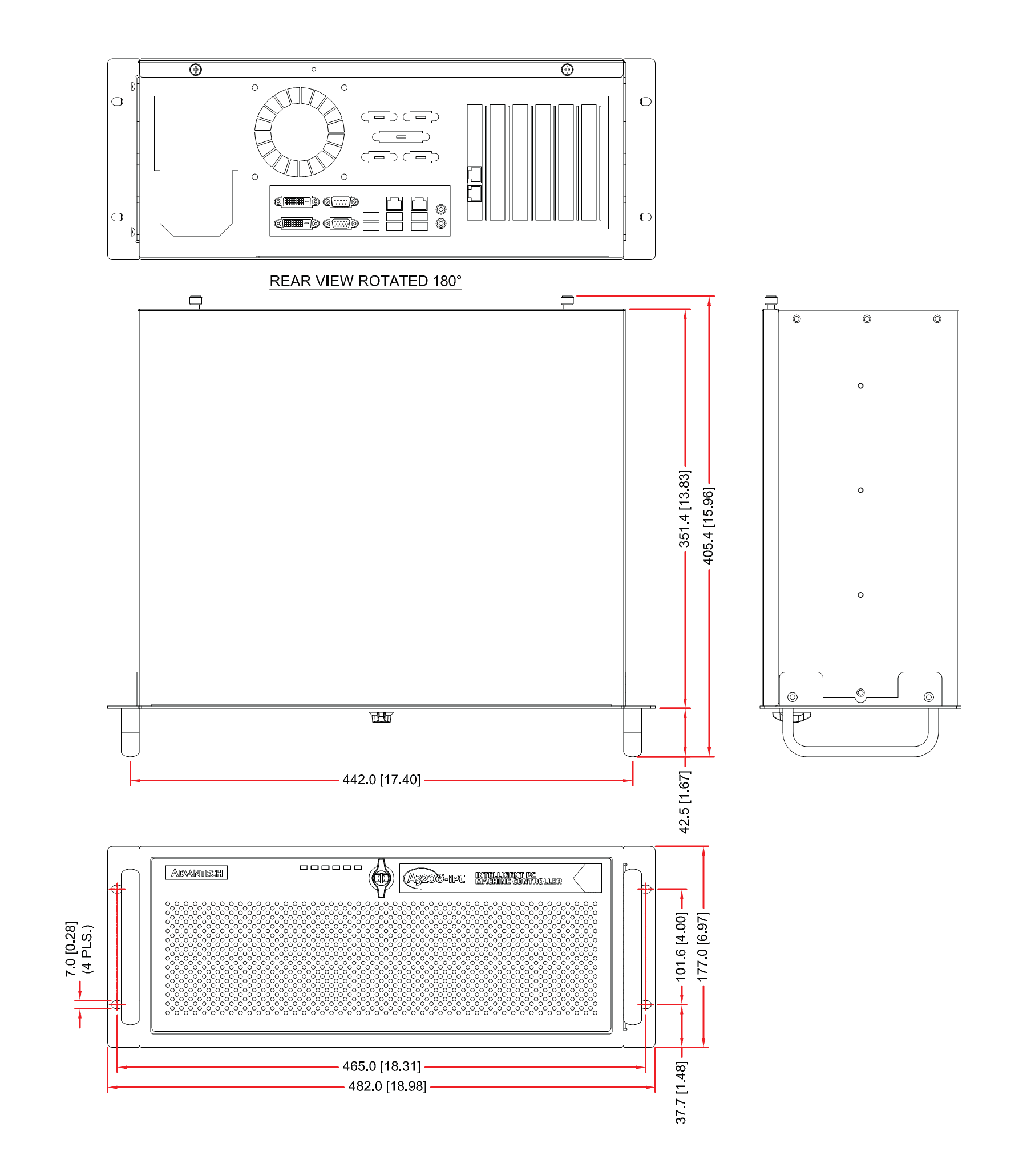

A3200-iPC, -R402 Hardware Option

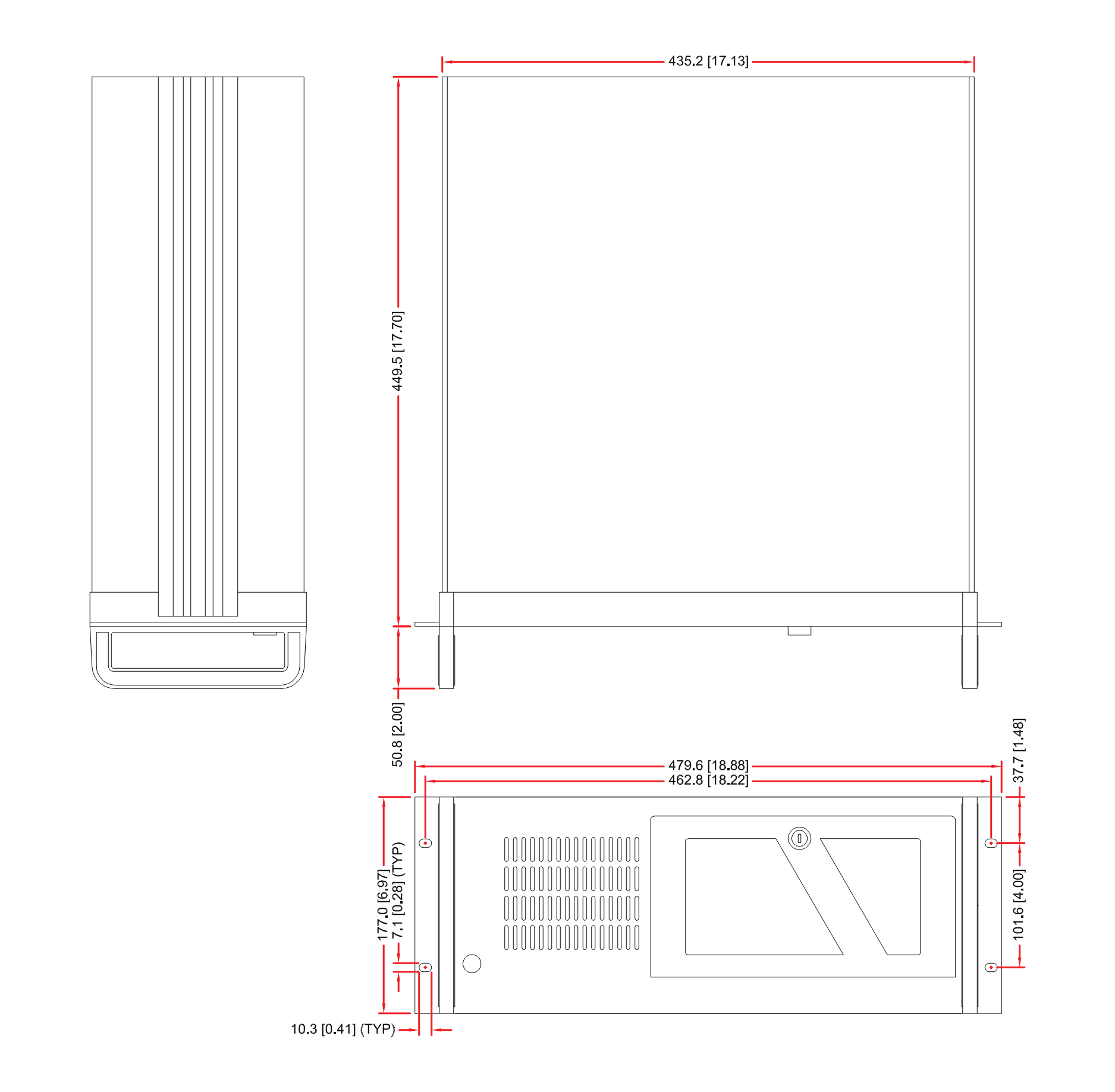

A3200-iPC, -R401 Hardware Option

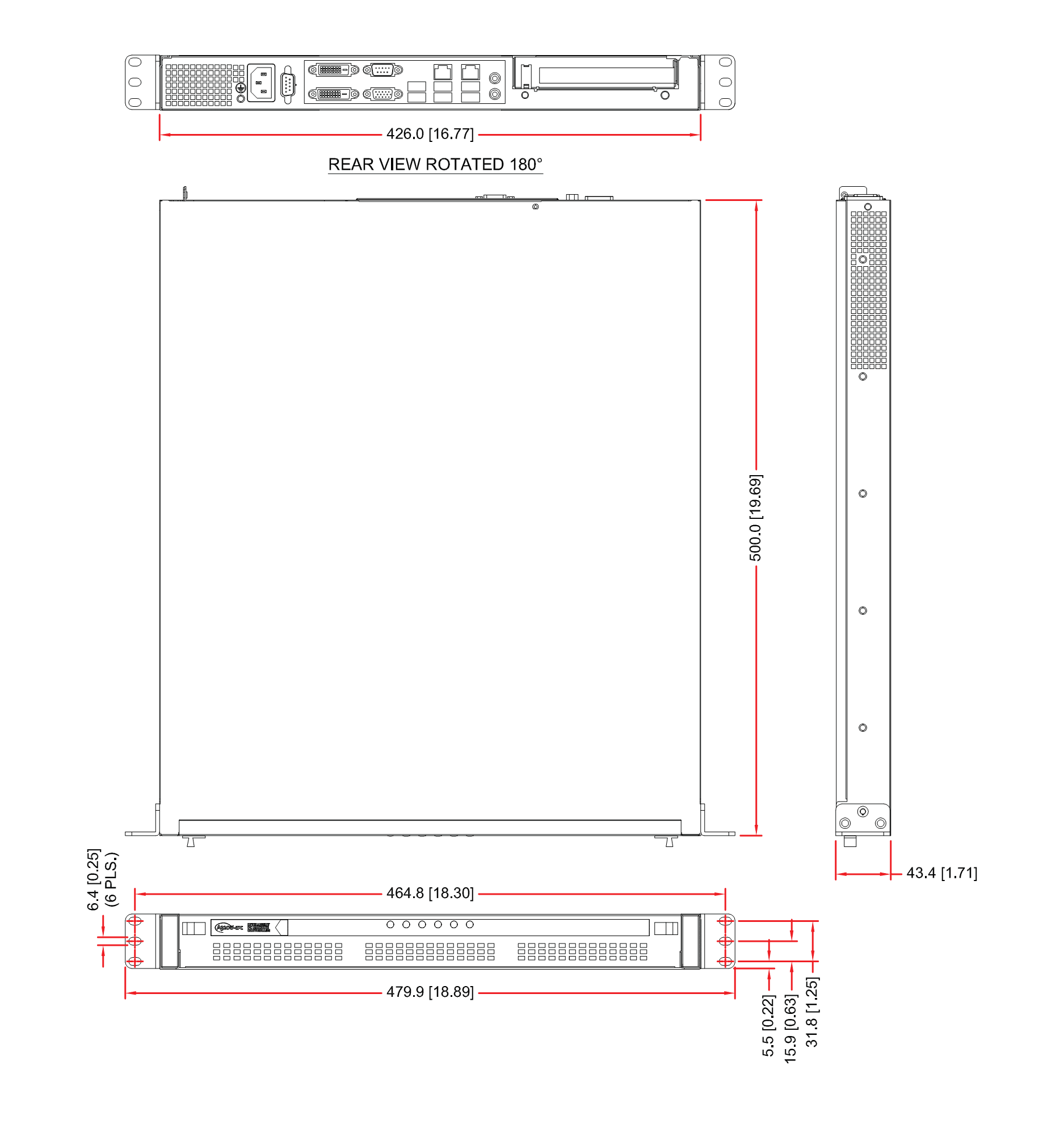

A3200-iPC, -R103 Hardware Option



A3200-iPC, -R102 Hardware Option

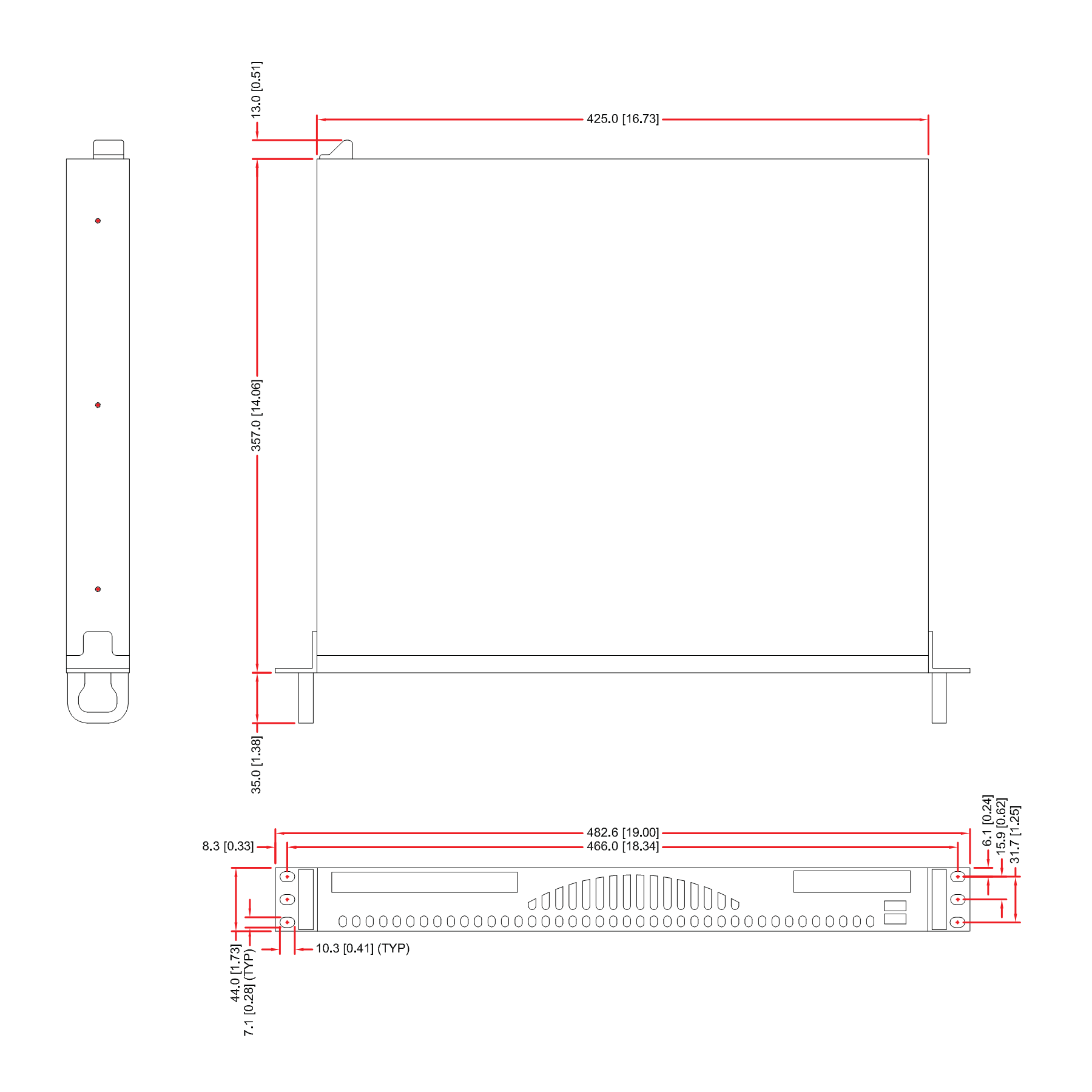

A3200-iPC, -R101 Hardware Option

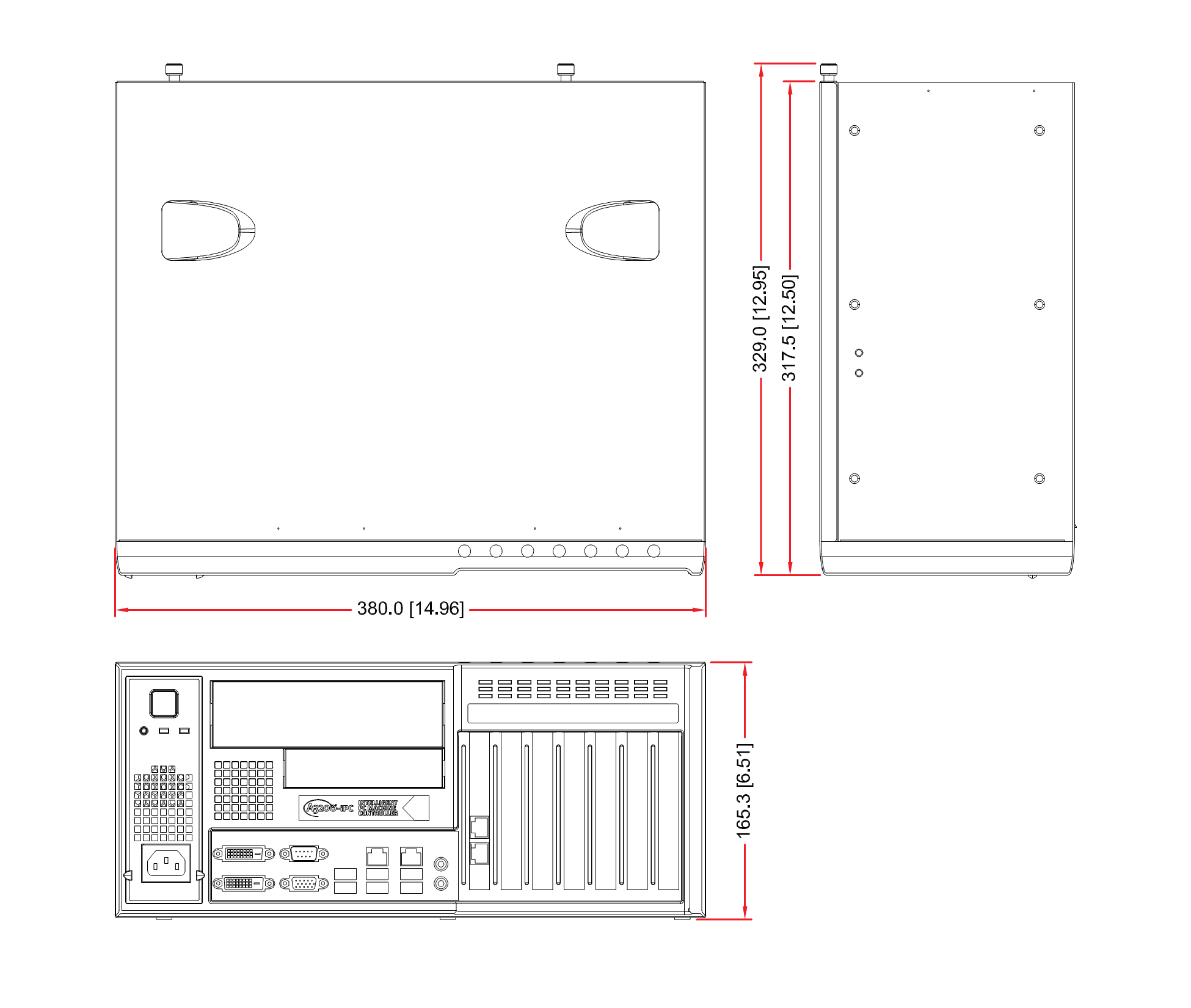

A3200-iPC, -DT01 Hardware Option



Ordering Information

A3200-iPC

Option Description
A3200-iPC A3200-iPC - intelligent machine controller industrial PC

Hardware

Option Description
-R402 4U 19" rack mount IPC. i7. SSD. A3200 6.03 minimum
-R401 4U 19" rack mount IPC. i7. HDD. A3200 legacy
-R103 1U 19" rack mount IPC. i7. SSD. A3200 6.03 minimum
-R102 1U 19" rack mount IPC. i7. SSD. A3200 legacy
-R101 1U 19" rack mount IPC. i7. HDD. A3200 legacy
-DT01 Desktop tower IPC. i7. SSD. A3200 6.03 minimum

Software

Option Description
-SW01 A3200 software installed as per A3200 line item (default)
-SW00 No A3200 software installed

Operating System

Option Description
-OS03 Windows 10 64-bit operating system (default)
-OS02* Windows 8.1 (minimum) 64-bit operating system
-OS01* Windows 7 64-bit operating system
Note:
  1. *Windows 8.1 and Windows 7 not available with -CC03, -CC02, -R402, -R103, or DT01 hardware

Option Description
-MB03* HyperWire motion bus via PCIe interface card
-MB02 Firewire motion bus via PCI interface card
-MB01 Firewire motion bus via PCIe interface card (default)
Note:
  1. *HyperWire motion bus supported on -CC03, -CC02, -R402, -R103, and -DT01 hardware

Automation Bus Hardware

Option Description
-AB03* EtherCAT/PROFINET interface card and Ethernet expansion card
-AB02* EtherCAT/PROFINET interface card
-AB01* Ethernet expansion card
-AB00 No EtherCAT/PROFINET interface card or Ethernet expansion cards (default)
Note:
  1. *Ethernet expansion card can be used for PC Modbus connections

HMI Package

Option Description
-HMI04 24” LED monitor, USB keyboard with integral touch pad
-HMI03 24” LED monitor, USB keyboard, and mouse
-HMI02 USB keyboard with integral touch pad
-HMI01 USB keyboard and mouse
-HMI00 No HMI package (default)

Line Cord*

Option Description
-LC0 No line cord (default)
-LC1 USA 115 VAC compatible line cord
-LC2 USA 230 VAC compatible line cord
-LC3 German compatible line cord
-LC4 UK compatible line cord
-LC5 Israel compatible line cord
-LC6 India compatible line cord
-LC7 Australia compatible line cord
A3200 iPC Data Sheet A3200 iPC Intelligent Industrial PCHardware Manual A3200 iPC CAD Download (-R402 Option) A3200 iPC CAD Download (-R103 Option) A3200 iPC CAD Download (-DT01 Option)
