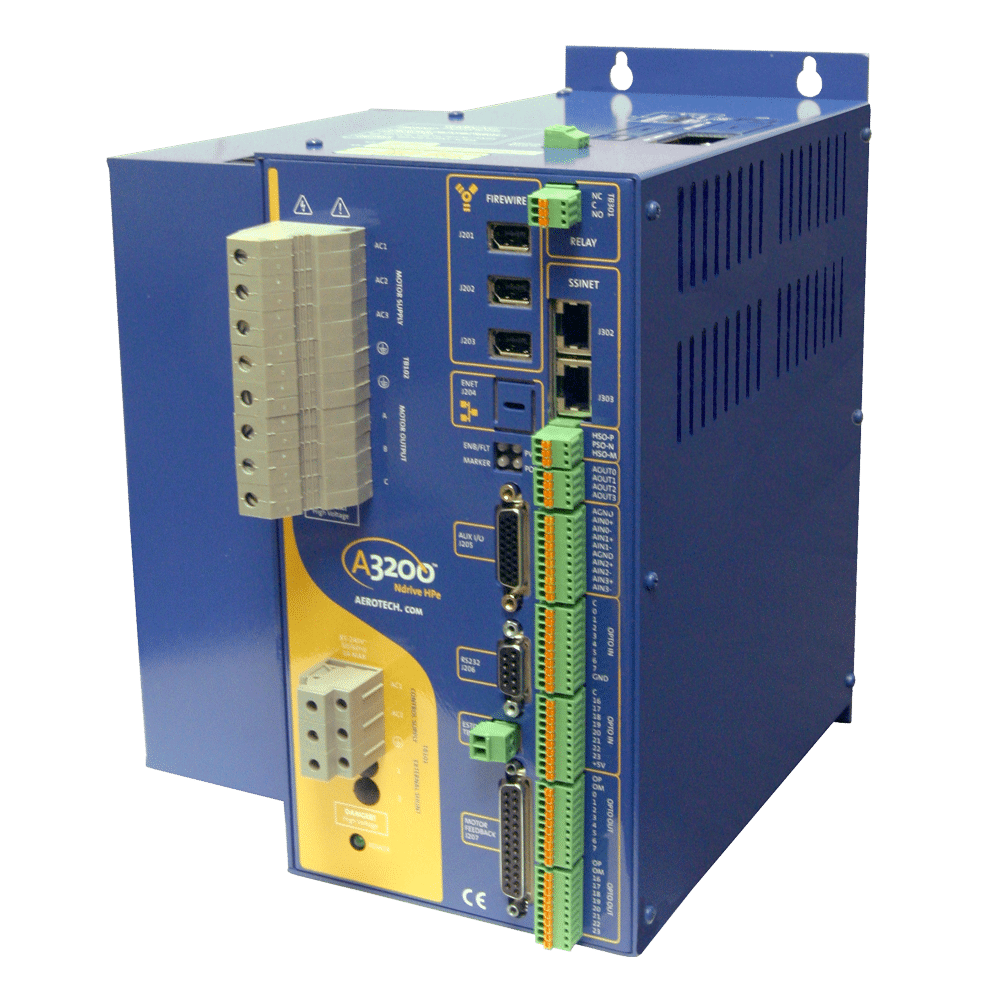

Ndrive HPe High-Performance PWM Digital Drive
Not recommended for new designs. See the new Automation1 XC6e. The Ndrive® family of digital servo amplifiers are high performance discrete drives used with the A3200 motion controller. These drives are capable of controlling brushless, DC brush and stepper motors over a wide range of operating voltages and currents. The Ndrive HPe is the highest-performance PWM drive providing a host of features not available on the other PWM drives, and is available in output current ranges from 50 A to 200 A peak.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Design Features
- Wide output power range from 50 A peak to 200 A peak at 320 VDC
- 3-phase AC line input
- CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive
- PWM power stages
- Digital current, velocity, and position loops for improved motion stability
- Optional integrated encoder multiplier for higher throughput and reduced wiring
- Flexible design provides ability to drive brushless and DC brush-type servomotors as well as stepping motors
- Encoder or resolver feedback
Based on a common architecture, Ndrive amplifiers perform both current- and position-loop closures digitally.
The use of high-performance double-precision processors allows these drives to generate ultra-smooth motion profiles. Servo system response is optimized with the use of up to eight second-order loop-shaping filters, precise time-aligned feed-forward and other proprietary techniques with loop closure rates up to 20 kHz.
The Ndrive family is offered in a number of highly efficient PWM versions. The Ndrive MP (Non-current) is a low power, small footprint PWM drive ideal for space-sensitive applications. The Ndrive CP is a medium-power PWM drive capable of running directly from AC mains voltage and is optimized for cost-sensitive applications. The Ndrive HPe is the highest performance PWM drive providing a host of features not available on the other PWM drives, and is available in output current ranges from 50 A to 200 A peak.
Options for the Ndrive family include integral encoder interpolation, one- to three-axis position synchronized output (PSO), automatic brake control, digital and analog I/O expansion, absolute encoder interface, and one- or two-channel resolver interfaces. An optional dedicated ethernet port is available on the HPe drives for connection to third-party I/O expansion devices. This provides the potential to connect to a large number of I/O points typically required for PLC-type applications.
Any combination of Ndrive amplifiers may be connected to the Automation 3200 FireWire® network, allowing the system to be customized as needed.
Dimensions

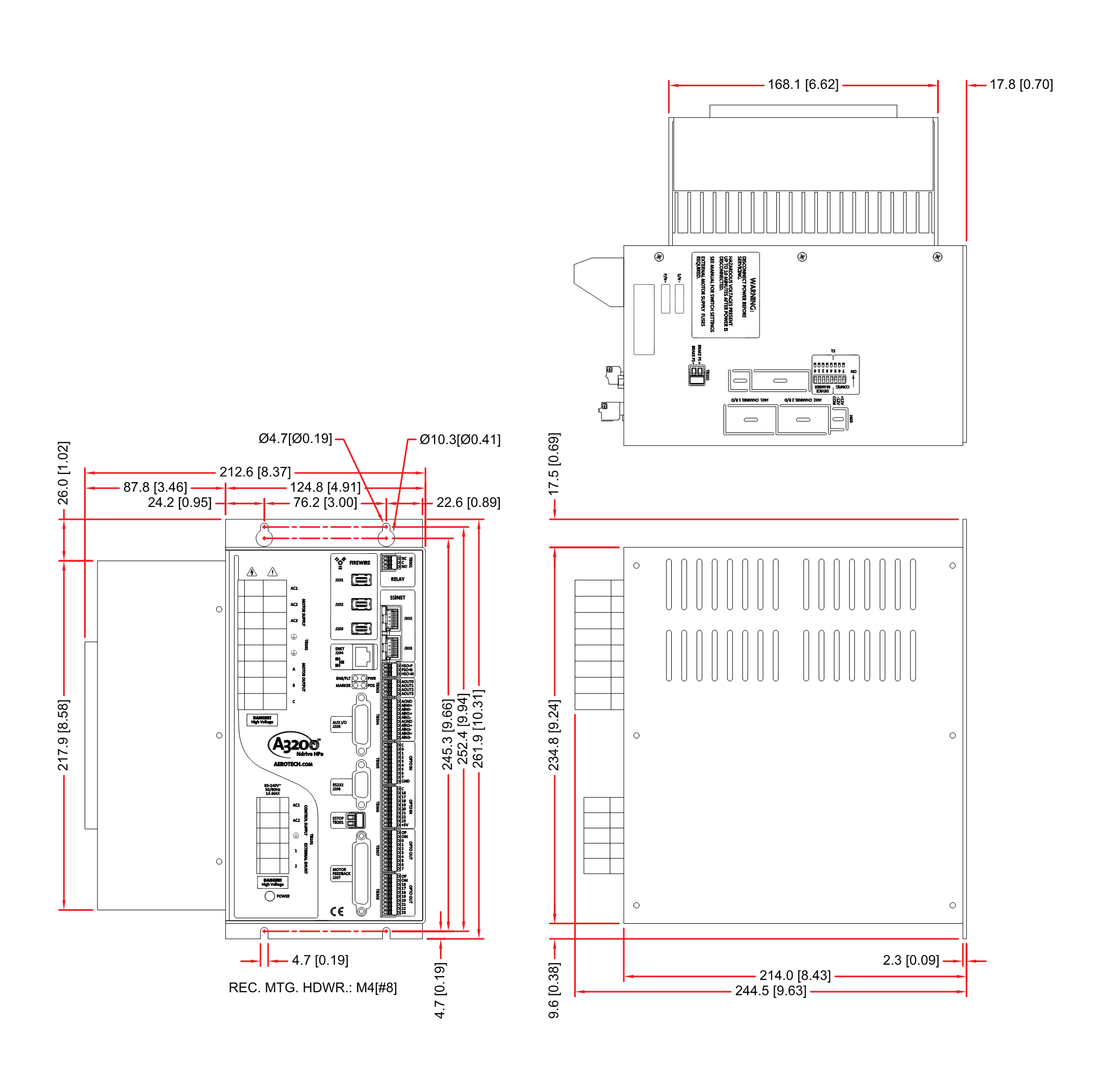

Ndrive HPe 50/75/100, With -IO Option

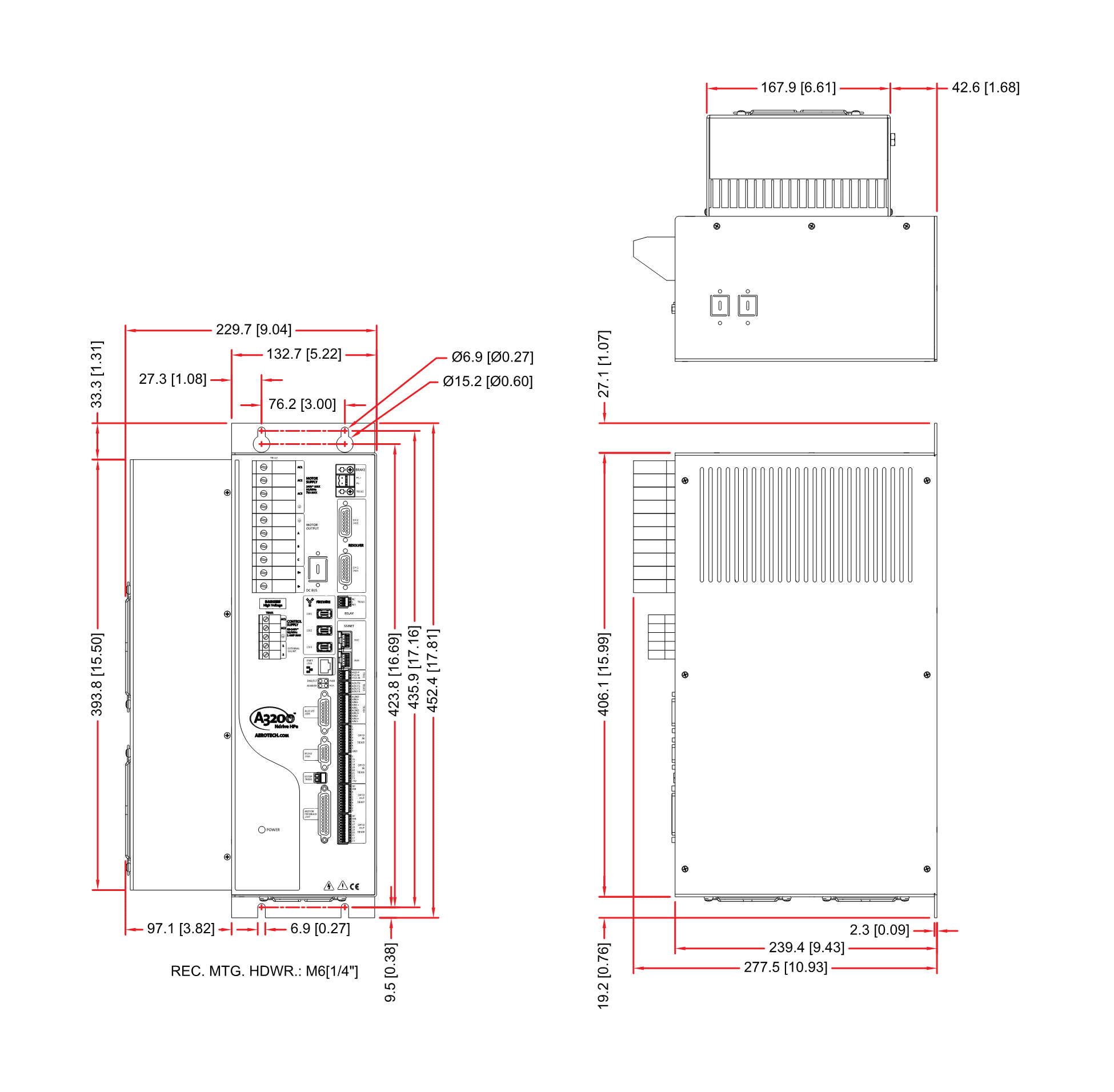

Ndrive HPe 150/200, With -IO Option
Ordering Information
Ndrive HPe Power Stage Options
| Option | Description |
| 50-S | 50 A peak; 25 A continuous; 440 W continuous internal shunt resistor; requires FAN-115 or FAN-230 option |
| 75-S | 75 A peak; 37.5 A continuous; 440 W continuous internal shunt resistor; requires FAN-115 or FAN-230 option |
| 100-S | 100 A peak; 50 A continuous; 440 W continuous internal shunt resistor; requires FAN-115 or FAN-230 option |
| 150-S | 150 A peak; 75 A continuous; 440 W continuous internal shunt resistor; requires FAN-115 or FAN-230 option |
| 200-S | 200 A peak, 75 A continuous, 440 W continuous internal shunt resistor; shared DC bus wiring interface; fan cooling |
Ndrive HPe Drive Options
| Option | Description |
| -S | 40 W continuous; 400 W peak internal shunt resistor network for HPe10/20 (only valid on HPe10/20) |
| -EXTSHUNT | Two-pin connector for external shunt on HPe10/20/30/50/75/100; external shunt not provided |
| -ESH | Two-pin connector for external shunt on HPe150/200; external shunt not provided |
| -HS | Heat sink with fins; standard on the Ndrive HPe50/75/100/150 |
| -FAN-115 | 115 VAC external cooling fan; required with Ndrive HPe50/75/100; included on Ndrive HPe150/200 (not valid on any other drive products) |
| -FAN-230 | 230 VAC external cooling fan; required with Ndrive HPe50/75/100; include on Ndrive HPe150/200 (not valid on any other drive products) |
Ndrive HPe I/O and Feedback Options
| Option | Description |
| -IO | Expansion board with 16 opto-isolated inputs (sinking or sourcing); 16 outputs (sinking or sourcing); three 16-bit differential analog inputs (±10 V); three 16-bit analog outputs (±10 V); 2 SSI Net; absolute encoder interface; one mechanical brake relay |
| -MXH | Programmable encoder multiplier up to x16384 (x65536 after quadrature); supports single/dual axis PSO and real-time encoder quadrature output |
Ndrive HPe Drive Options
| Option | Description |
| -DUALPSO | Two-axis PSO firing; second encoder input through AUX connection on Ndrive or through SSINET on I/O board |
| -TRIPLEPSO | Three-axis PSO firing; second and thrid encoder input through AUX connection on Ndrive or through SSINET on I/O board |
| -ENET | 10/100 BASE-T Ethernet port |
| -PSONC | Normally closed PSO output (default normally open) |
Ndrive HPe Resolver Options
| Option | Description |
| RDP1-10K | Ndrive one-channel resolver to digital feedback card with dynamic resolution switching capability; 10 kHz carrier frequency |
| RDP1-7.5K | Ndrive one-channel resolver to digital feedback card with dynamic resolution switching capability; 7.5 kHz carrier frequency |
| RDP1-5K | Ndrive one-channel resolver to digital feedback card with dynamic resolution switching capability; 5 kHz carrier frequency |
| RDP2-10K | Ndrive two-channel resolver to digital feedback card with dynamic resolution switching capability; 10 kHz carrier frequency |
| RDP2-7.5K | Ndrive two-channel resolver to digital feedback card with dynamic resolution switching capability; 7.5 kHz carrier frequency |
| RDP2-5K | Ndrive two-channel resolver to digital feedback card with dynamic resolution switching capability; 5 kHz carrier frequency. |
