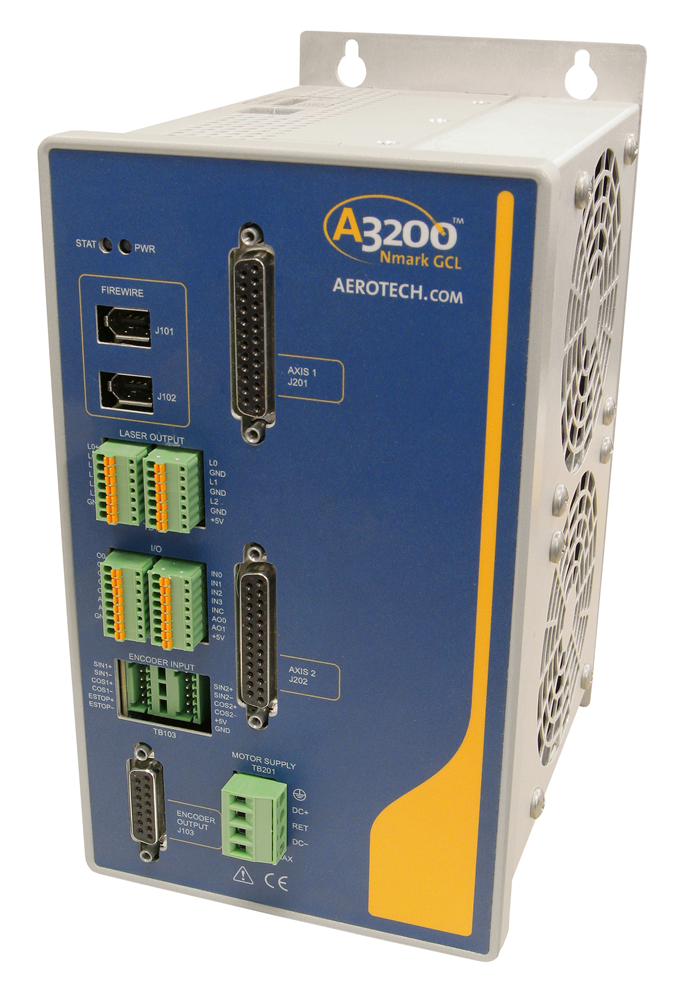

Nmark GCL High-Performance Galvo Control
Not recommended for new designs. See the new Automation1 GL4. The Nmark® GCL provides an optimized platform for controlling Aerotech’s family of AGV scanners. Industry leading settling times, long-term thermal stability and micron-level tracking accuracy are possible due to advanced features such as full state feed-forward, 192 kHz servo rates and look-ahead-based velocity control.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications

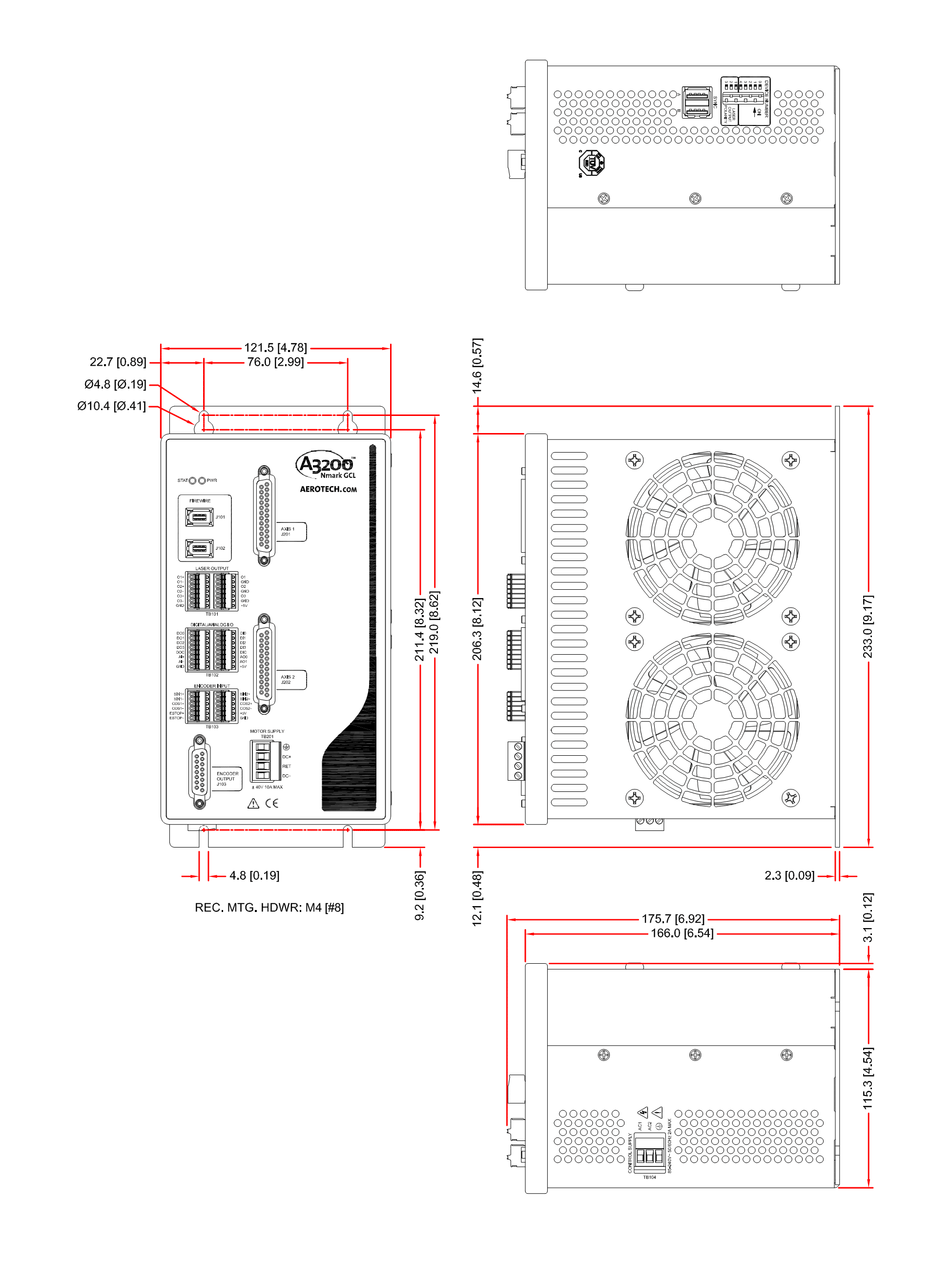

Dimensions
Ordering Info
Downloads
Description
Design Features
- Closed-loop, two-axis servo drive for Aerotech's AGV series scanners
- Infinite Field of View (IFOV) seamlessly combines AGV and servo motion to expand the scanner work area
- Full servo state control with "zero-tracking error" eliminates speed-related part distortion such as necking on circles and rounding of corners
- Position-based laser firing (PSO) with windowing maintains consistent spot spacing over a wide range of operating speeds
- External clock input for synchronization with mode-locked lasers
- Part-Speed Position Synchronized Output (PSO) included
High-Resolution Feedback
The AGV-HP has thermally stable feedback transducers with virtually no gain or offset drift. The Nmark GCL uses advanced interpolation electronics to provide up to 26-bits of effective resolution. Onboard real-time 2D calibration ensures accurate beam placement over the entire field of view.
Position Synchronized Output
The ability to accurately place a laser spot as a function of X/Y axis position is a key feature of Aerotech’s linear positioning stages for laser processing applications (Figures 1 and 2). With the release of the Nmark GCL, this functionality is now available for scanner applications. The ability to accurately trigger the laser as a function of position removes the need to program mark, jump, and polygon delays, resulting in reduced programming complexity. By using the Position Synchronized Output functionality, scanner-based processes can now be programmed in the same fashion as traditional X/Y stage-based applications.
Remote Power Devices
Most competitive scanners have the power devices integrated directly into the head, along with the galvos and feedback devices. These power devices can inject considerable thermal energy into the scanner head causing drift in the feedback positions and changing offsets between the mirrors, all of which detract from marking accuracy. Some systems use PWM power stages to minimize heat input. However, this approach results in reduced tracking accuracy due to nonlinear effects that are present when the galvo motors and control currents reverse polarity. By moving the power stage out of the head, it is possible to use higher performing transistors to drive the galvos and the heat source is effectively removed from the scanner resulting in improved system accuracy (Figures 3 and 4).
Additional Resources
Galvo Calibration File Converter (GCFC) – Use the GCFC to create new, optimize existing, or convert third-party calibration files for operation with the Nmark GCL and Nmark SSam.
You may be interested in Aerotech's recent webcast, Accuracy of Combined Scanning and Servo Systems.
Summary: Linear and rotary actuators are often used to expand the effective working area of scanner/galvo marking heads. This presentation will discuss alignment, scaling, rotation, and stitching-induced errors and their combined impact on final part quality. Advanced error correction, path planning, and laser triggering techniques that help to minimize these errors will also be presented.
Ordering Information
mark GCL Series (Required)
Option | Description |
NMARK-GCL | Dual linear stage amplifier designed to operate Aerotech’s AGV family of scanners |
