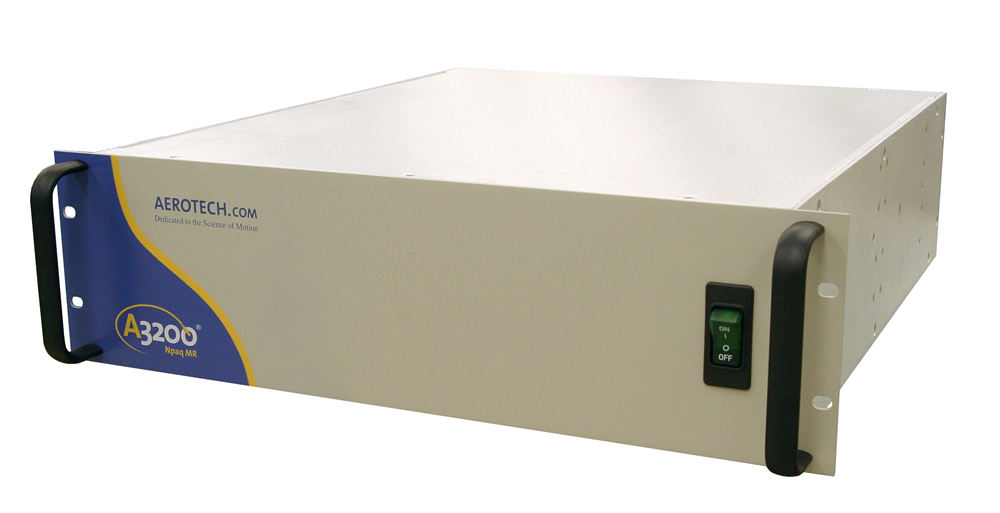

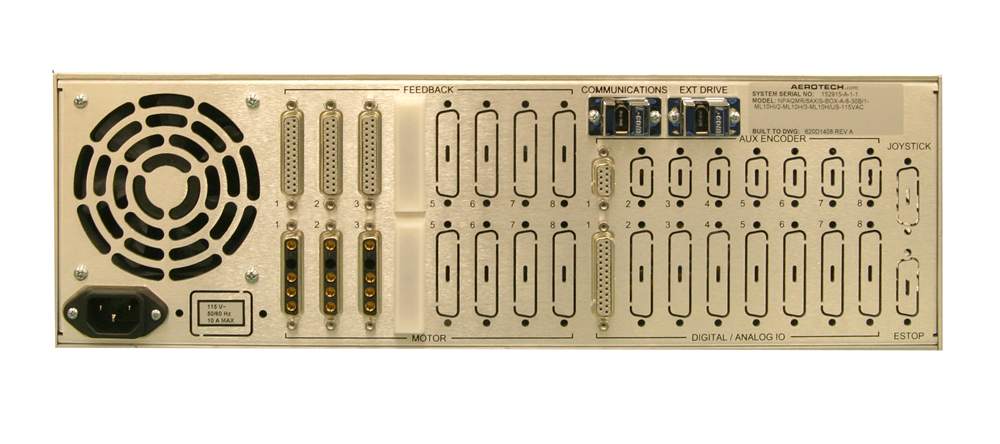

Npaq MR Drive Rack
This product is not recommended for new designs. Instead, please see consider Automation1 drives and drive racks for all new designs. Automation1 drives and drive racks are a part of the Automation1 Precision Motion Control Platform, which includes the new Automation1 Software-Based Machine Controller and Automation1 Motion Development Kit. The Npaq® MR is a cost-effective, high performance, 4- or 8- axis drive rack. All versions are 3U in size, rack-mountable and compatible with the A3200 motion platform. Featuring high-performance double-precision DSPs, the Npaq MR family performs both current loop and servo-loop closures digitally to ensure the highest level of positioning accuracy and repeatability.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Design Features
- 3U, 19-inch rack-mount design with integral drives
- Flexible design provides the ability to drive brush, brushless, or stepper motors with the same amplifier
- 5 A continuous, 10 amp peak output current
- PWM or linear amplifiers
- Integral power supplies
- IEEE-1394 FireWire interface
- Digital current, velocity, and position loops for improved motion stability
- Optional Ethernet for I/O expansion
- Integrated encoder multiplier for higher throughput and reduced wiring
- CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive
Featuring high-performance double-precision DSPs, the Npaq MR family performs both current loop and servo-loop closures digitally to ensure the highest level of positioning accuracy and rate stability. It is this processing capability that allows the Npaq MR to provide loop closure rates up to 20 kHz and to handle both digital and analog I/O processing, data collection, laser firing and encoder multiplication tasks in real time.
Standard options for the Npaq MR include integrated encoder multiplication, per axis brake control logic, I/O expansion and integrated emergency stop circuitry.
The Npaq MR uses integral amplifiers supporting both linear and PWM topologies to control brushless, DC brush or stepper motor types. The Npaq MR supports one integrated motor operation voltage with mains turn-on current limiting.
The Npaq MR supports single-axis position synchronized output (PSO) for precise synchronizing of external devices, and supports per axis I/O options with up to 64 opto-isolated inputs and outputs available to the user.

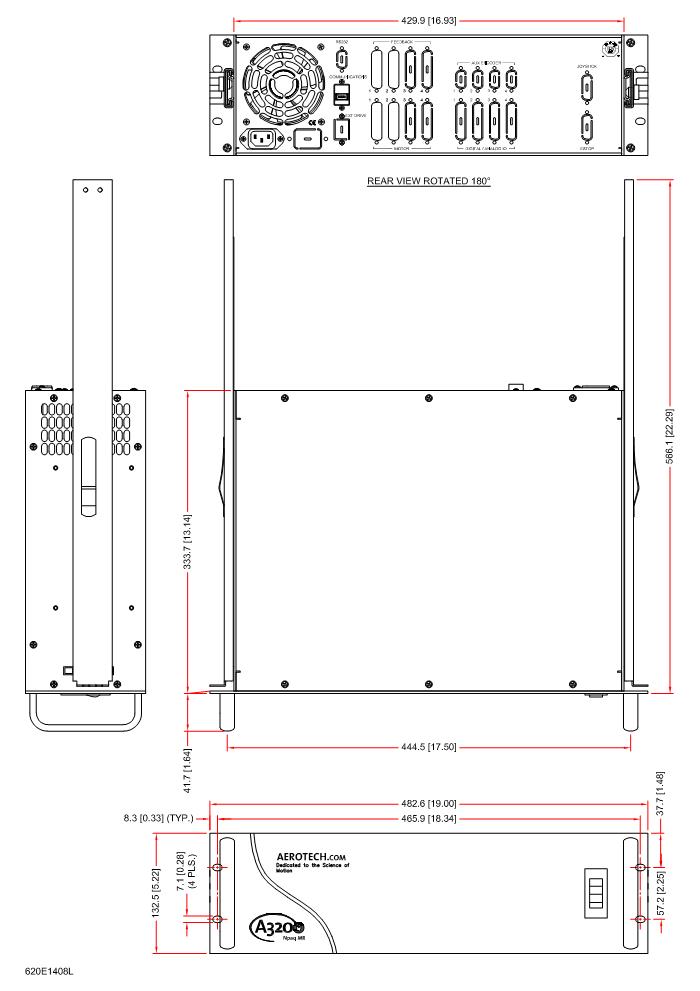

Dimensions
Npaq MR, 4-Axis Chassis
Npaq MR, 8-Axis Chassis
Ordering Information
Ordering Options
| Base | Package | Line Voltage | Bus Power Supply | Axis 1 Amp | Axis 2 Amp | Axis 3 Amp | Axis 4 Amp | Axis 5 Amp | Axis 6 Amp | Axis 7 Amp | Axis 8 Amp | Line Cord | Brake Options |
| Npaq MR | /4AXIS-BOX /8AXIS-BOX |
-A -B -C -D |
-4-40LP -4-80LP -4-40 -4-80 -4-10B -4-20B -4-30B -4-40B -8-40LP -8-80LP -8-40 -8-80 -8-10B -8-20B -8-30B -8-40B |
/1-MP10 /1-MP10I /1-MP10M /1-MP10MI /1-MP10HB /1-MP10IHB /1-MP10MHB /1-MP10MIHB /1-ML10 /1-ML10I /1-ML10M /1-ML10MI /1-ML10H /1-ML10HI |
/2-MP10 /2-MP10I /2-MP10M /2-MP10MI /2-MP10HB /2-MP10IHB /2-MP10MHB /2-MP10MIHB /2-ML10 /2-ML10I /2-ML10M /2-ML10MI /2-ML10H /2-ML10HI |
/3-MP10 /3-MP10I /3-MP10M /3-MP10MI /3-MP10HB /3-MP10IHB /3-MP10MHB /3-MP10MIHB /3-ML10 /3-ML10I /3-ML10M /3-ML10MI /3-ML10H /3-ML10HI |
/4-MP10 /4-MP10I /4-MP10M /4-MP10MI /4-MP10-HB /4-MP10I-HB /4-MP10M-HB /4-MP10MI-HB /4-ML10 /4-ML10I /4-ML10M /4-ML10MI /4-ML10H /4-ML10HI |
/5-MP10 /5-MP10I /5-MP10M /5-MP10MI /5-MP10-HB /5-MP10I-HB /5-MP10M-HB /5-MP10MI-HB |
/6-MP10 /6-MP10I /6-MP10M /6-MP10MI /6-MP10-HB /6-MP10I-HB /6-MP10M-HB /6-MP10MI-HB |
/7-MP10 /7-MP10I /7-MP10M /7-MP10MI /7-MP10-HB /7-MP10I-HB /7-MP10M-HB /7-MP10MI-HB |
8-MP10 /8-MP10I /8-MP10M /8-MP10MI /8-MP10-HB /8-MP10I-HB /8-MP10M-HB /8-MP10MI-HB |
/ENGLAND /GERMANY /ISRAEL /INDIA /AUSTRALIA /US-115VAC /US-230VAC /NO-LINECORD |
/BRAKE-1 /BRAKE-2 /BRAKE-3 /BRAKE-4 /BRAKE-5 /BRAKE-6 /BRAKE-7 /BRAKE-8 |
Npaq MR
| Option | Description |
| Npaq MR | Rack-mount digital amplifier chassis with integral DC power supply and FireWire® interface. Supports 4 or 8 axes of brush, brushless, or stepper motor amplifiers. Dedicated I/O per axis includes: CW, CCW, and home limits, sin, cos, mkr, Hall effect sensors, motor over-temperature, ext fault User defined I/O included on I/O option board: 8 opto-isolated inputs (sinking or sourcing), 8 outputs (sinking or sourcing), one 12-bit analog input, one 16-bit analog output and brake relay |
Package
| Option | Description |
| /4AXIS-BOX | Supports up to 4 axes of motion |
| /8AXIS-BOX | Supports up to 8 axes of motion |
Line Voltage
| Option | Description |
| -A | 115 VAC line |
| -B | 230 VAC line |
| -C | 100 VAC line |
| -D | 200 VAC line |
Bus Power Supply
| Option | Description |
| -4-40LP | Four-axis rack with 40 VDC bus; up to 300 watts |
| -4-80LP | Four-axis rack with 80 VDC bus; up to 300 watts |
| -4-40 | Four-axis rack with 40 VDC bus; up to 600 watts |
| -4-80 | Four-axis rack with 80 VDC bus; up to 600 watts |
| -4-10B | Four-axis rack with ±10 VDC bus; up to 400 watts |
| -4-20B | Four-axis rack with ±20 VDC bus; up to 400 watts |
| -4-30B | Four-axis rack with ±30 VDC bus; up to 400 watts |
| -4-40B | Four-axis rack with ±40 VDC bus; up to 800 watts |
| -8-40LP | Eight-axis rack with 40 VDC bus; up to 500 watts |
| -8-80LP | Eight-axis rack with 80 VDC bus; up to 500 watts |
| -8-40 | Eight-axis rack with 40 VDC bus; up to 500 watts |
| -8-80 | Eight-axis rack with 80 VDC bus; up to 1000 watts |
| -8-10B | Eight-axis rack with ±10 VDC bus; up to 400 watts |
| -8-20B | Eight-axis rack with ±20 VDC bus; up to 400 watts |
| -8-30B | Eight-axis rack with ±30 VDC bus; up to 400 watts |
| -8-40B | Eight-axis rack with ±40 VDC bus; up to 600 watts |
Axis 1 Amplifier Options
| Option | Description |
| /1-MP10 | Digital PWM amplifier, 10 A peak, 5 A continuous |
| /1-MP10I | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O option |
| /1-MP10M | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /1-MP10MI | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and I/O option |
| /1-MP10-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with half bus option |
| /1-MP10I-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O and half bus option |
| /1-MP10M-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and half bus option |
| /1-MP10MI-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O and half bus option |
| /1-ML10 | Linear amplifier, 10 A peak, 5 A continuous |
| /1-ML10I | Linear amplifier, 10 A peak, 5 A continuous with I/O option |
| /1-ML10M | Linear amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /1-ML10MI | Linear amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O option |
| /1-ML10H | Digital linear amplifier, 10 A peak, 5 A continuous; x65536 MXH(1) |
| /1-ML10HI | Digital linear amplifier, 10 A peak, 5 A continuous; x65536 MXH(1) with I/O option |
Note:
- Effective multiplication factor specified after quadrature decoding (if applicable).
Axis 2 Amplifier Options
| Option | Description |
| /2-MP10 | Digital PWM amplifier, 10 A peak, 5 A continuous |
| /2-MP10I | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O option |
| /2-MP10M | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /2-MP10MI | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and I/O option |
| /2-MP10-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with half bus option |
| /2-MP10I-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O and half bus option |
| /2-MP10M-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and half bus option |
| /2-MP10MI-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O and half bus option |
| /2-ML10 | Linear amplifier, 10 A peak, 5 A continuous |
| /2-ML10I | Linear amplifier, 10 A peak, 5 A continuous with I/O option |
| /2-ML10M | Linear amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /2-ML10MI | Linear amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O option |
| /2-ML10H | Digital linear amplifier, 10 A peak, 5 A continuous; x65536 MXH(1) |
| /2-ML10HI | Digital linear amplifier, 10 A peak, 5 A continuous; x65536 MXH(1) with I/O option |
Note:
- Effective multiplication factor specified after quadrature decoding (if applicable).
Axis 3 Amplifier Options
| Option | Description |
| /3-MP10 | Digital PWM amplifier, 10 A peak, 5 A continuous |
| /3-MP10I | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O option |
| /3-MP10M | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /3-MP10MI | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and I/O option |
| /3-MP10-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with half bus option |
| /3-MP10I-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O and half bus option |
| /3-MP10M-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and half bus option |
| /3-MP10MI-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O and half bus option |
| /3-ML10 | Linear amplifier, 10 A peak, 5 A continuous |
| /3-ML10I | Linear amplifier, 10 A peak, 5 A continuous with I/O option |
| /3-ML10M | Linear amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /3-ML10MI | Linear amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O option |
| /3-ML10H | Digital linear amplifier, 10 A peak, 5 A continuous; x65536 MXH(1) |
| /3-ML10HI | Digital linear amplifier, 10 A peak, 5 A continuous; x65536 MXH(1) with I/O option |
Note:
- Effective multiplication factor specified after quadrature decoding (if applicable).
Axis 4 Amplifier Options
| Option | Description |
| /4-MP10 | Digital PWM amplifier, 10 A peak, 5 A continuous |
| /4-MP10I | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O option |
| /4-MP10M | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /4-MP10MI | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and I/O option |
| /4-MP10-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with half bus option |
| /4-MP10I-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O and half bus option |
| /4-MP10M-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and half bus option |
| /4-MP10MI-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O and half bus option |
| /4-ML10 | Linear amplifier, 10 A peak, 5 A continuous |
| /4-ML10I | Linear amplifier, 10 A peak, 5 A continuous with I/O option |
| /4-ML10M | Linear amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /4-ML10MI | Linear amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O option |
| /4-ML10H | Digital linear amplifier, 10 A peak, 5 A continuous; x65536 MXH(1) |
| /4-ML10HI | Digital linear amplifier, 10 A peak, 5 A continuous; x65536 MXH(1) with I/O option |
Note:
- Effective multiplication factor specified after quadrature decoding (if applicable).
Axis 5 Amplifier Options
| Option | Description |
| /5-MP10 | Digital PWM amplifier, 10 A peak, 5 A continuous |
| /5-MP10I | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O option |
| /5-MP10M | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /5-MP10MI | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and I/O option |
| /5-MP10-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with half bus option |
| /5-MP10I-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O and half bus option |
| /5-MP10M-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and half bus option |
| /5-MP10MI-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O and half bus option |
Note:
- Effective multiplication factor specified after quadrature decoding (if applicable).
Axis 6 Amplifier Options
| Option | Description |
| /6-MP10 | Digital PWM amplifier, 10 A peak, 5 A continuous |
| /6-MP10I | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O option |
| 6-MP10M | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /6-MP10MI | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O option |
| /6-MP10-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with half bus option |
| /6-MP10I-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O and half bus option |
| /6-MP10M-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and half bus option |
| /6-MP10MI-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O and half bus option |
Note:
- Effective multiplication factor specified after quadrature decoding (if applicable).
Axis 7 Amplifier Options
| Option | Description |
| /7-MP10 | Digital PWM amplifier, 10 A peak, 5 A continuous |
| /7-MP10I | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O option |
| /7-MP10M | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /7-MP10MI | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and I/O option |
| /7-MP10-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with half bus option |
| /7-MP10I-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O and half bus option |
| /7-MP10M-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and half bus option |
| /7-MP10MI-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O and half bus option |
Note:
- Effective multiplication factor specified after quadrature decoding (if applicable).
Axis 8 Amplifier Options
| Option | Description |
| /8-MP10 | Digital PWM amplifier, 10 A peak, 5 A continuous |
| /8-MP10I | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O option |
| /8-MP10M | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) |
| /8-MP10MI | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and I/O option |
| /8-MP10-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with half bus option |
| /8-MP10I-HB | Digital PWM amplifier, 10 A peak, 5 A continuous with I/O and half bus option |
| /8-MP10M-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and half bus option |
| /8-MP10MI-HB | Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) with I/O and half bus option |
Note:
- Effective multiplication factor specified after quadrature decoding (if applicable).
Line Cord (must select one)
| Option | Description |
| /ENGLAND | UK compatible line cord |
| /GERMANY | German compatible line cord |
| /ISRAEL | Israel compatible line cord |
| /AUSTRALIA | Australia compatible line cord |
| /US-115VAC | US 115 VAC line cord |
| /US-230VAC | US 230 VAC line cord |
| /NO-LINECORD | No line cord |
Brake Options (up to 4 selections allowable)
| Option | Description |
| /BRAKE-1 | Axis 1 wired for 24 V, 1 A brake |
| /BRAKE-2 | Axis 2 wired for 24 V, 1 A brake (amp must have “I” or “MI” option) |
| /BRAKE-3 | Axis 3 wired for 24 V, 1 A brake (amp must have “I” or “MI” option) |
| /BRAKE-4 | Axis 4 wired for 24 V, 1 A brake (amp must have “I” or “MI” option) |
| /BRAKE-5 | Axis 5 wired for 24 V, 1 A brake (amp must have “I” or “MI” option) |
| /BRAKE-6 | Axis 6 wired for 24 V, 1 A brake (amp must have “I” or “MI” option) |
| /BRAKE-7 | Axis 7 wired for 24 V, 1 A brake (amp must have “I” or “MI” option) |
| /BRAKE-8 | Axis 8 wired for 24 V, 1 A brake (amp must have “I” or “MI” option) |
Options (multiple selectons allowable)
| Option | Description |
| -ESTOP1 | Controller stops motion, then disables servo control. Internal positive guided relay with monitor contact disconnects AC power source from motor. Operator risk assessment is the responsibility of the end user or integrator. |
| -ESTOP2 | Same as ESTOP1 but uses two relays |
| -ESTOP3 | Same as ESTOP2 but contains 1 second bus discharge resistors |
| -SLIDE | Rack-mount slides |
Integration (Required)
Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.
| Option | Description |
| -TAS | Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration. |
| -TAC | Integration - Test as components Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system. |
