Terminal Blocks

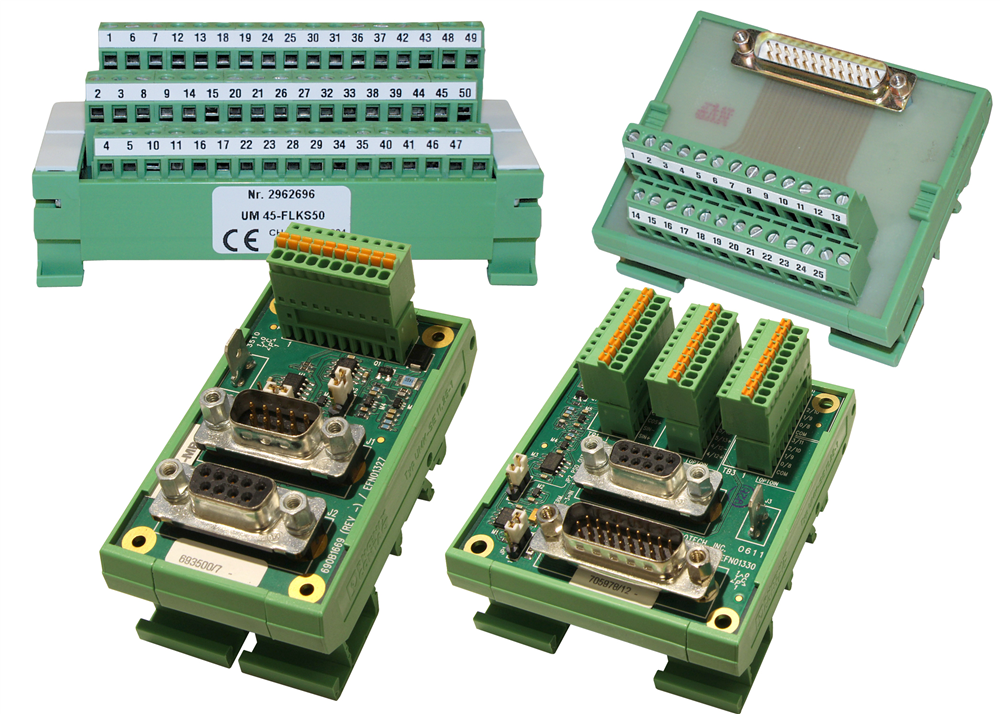

Our 25- and 37-pin terminal blocks for direct access to I/O on A3200 drive products come with DIN rail mounting features and a convenient screw-terminal or quick connect/release wiring interface.

Have questions? Contact an Aerotech expert.

Description

Specifications

Downloads

Description

Path 7

Description

Specifications

Downloads

Description

Design Features

  • 25- and 37-pin terminal blocks for direct access to I/O on A3200 drive products
  • BB-MP and BB-CP include an isolated PSO output that can interface directly to 5-24 VDC inputs in either a sinking or sourcing configuration
  • All products come with DIN rail mounting features
  • Convenient screw-terminal or quick connect/release wiring interface

Dimensions

Ordering Information

BB-MP and BB-CP Breakout Blocks Hardware Manual
