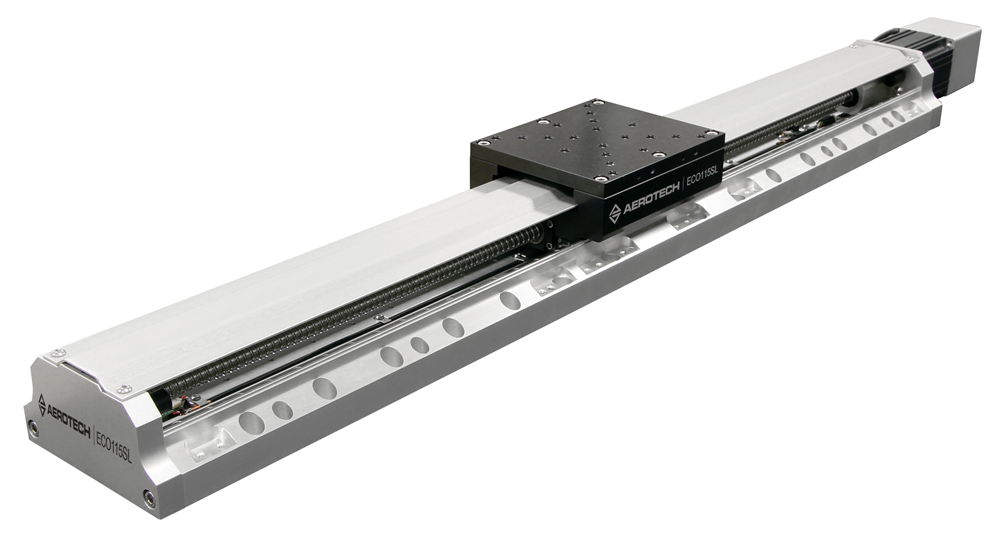

ECO115SL Series Mechanical Bearing, Ball-Screw Stage
The ECO115SL, part of the ECO linear stage family, builds upon our long tradition of producing low total cost of ownership motion designs. Excellent positioning specifications, high stiffness and a variety of options and features — combined with economic pricing — make the ECO115SL stage ideal for medium-performance production applications requiring ball-screw stage actuation.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Design Features
- High-performance in a cost-effective, economic package
- Rugged mechanical design
- Available with servomotor or stepping motor
- Nine models with travels from 50 mm to 600 mm
- Vacuum and cleanroom versions available
Quality Mechanical Construction

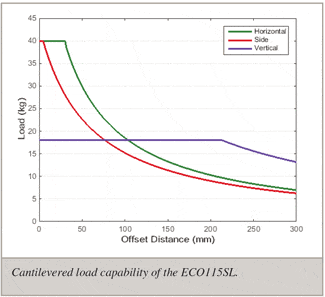

A long-life recirculating linear guide bearing system and quality construction make the ECO115SL an attractive solution for applications where up-time is critical. Unlike low-cost competitive motion stages, the ECO115SL can be integrated into complex machines with the assurance it will perform at a high level and outlast other machine components.
Stepper Motor Option
For cost sensitive applications, the ECO115SL series includes several NEMA 23 stepper motor options. With the ability to run on standard wall voltages, the ECO115SL provides plug-and-play capability with a minimal amount of supporting electrical equipment.
Design and Integration Flexibility
The ECO115SL is designed with many standard features and options that make the design adaptable to specific applications. It is available in nine different models with travels ranging from 50 mm to 600 mm and speeds up to 300 mm/s.
The base mounting holes are accessible from the outside of the stage for easy mounting. Standard mounting holes for both English and metric optical tables are present in all travels. Each stage also mounts to another ECO115SL or ECO165SL for easy integration of multi-axis systems.
Optional tabletops are available with either English or metric mounting patterns. A third tabletop option features hole patterns to allow the direct attachment of several types of Aerotech rotary stages.
Aerotech BM or BMS series brushless servomotors are available with a variety of encoder options providing net resolutions ranging from 0.5 µm down to sub-nm. A holding brake can be added to the motor for vertical applications. A motor fold-back kit is available for space-constrained applications to reduce the overall stage length.
The ECO115SL stage series offers many options to fit the exact requirements of numerous applications. Its flexible, cost-effective design easily makes it one of the best value linear ball-screw stage series available today.
Dimensions

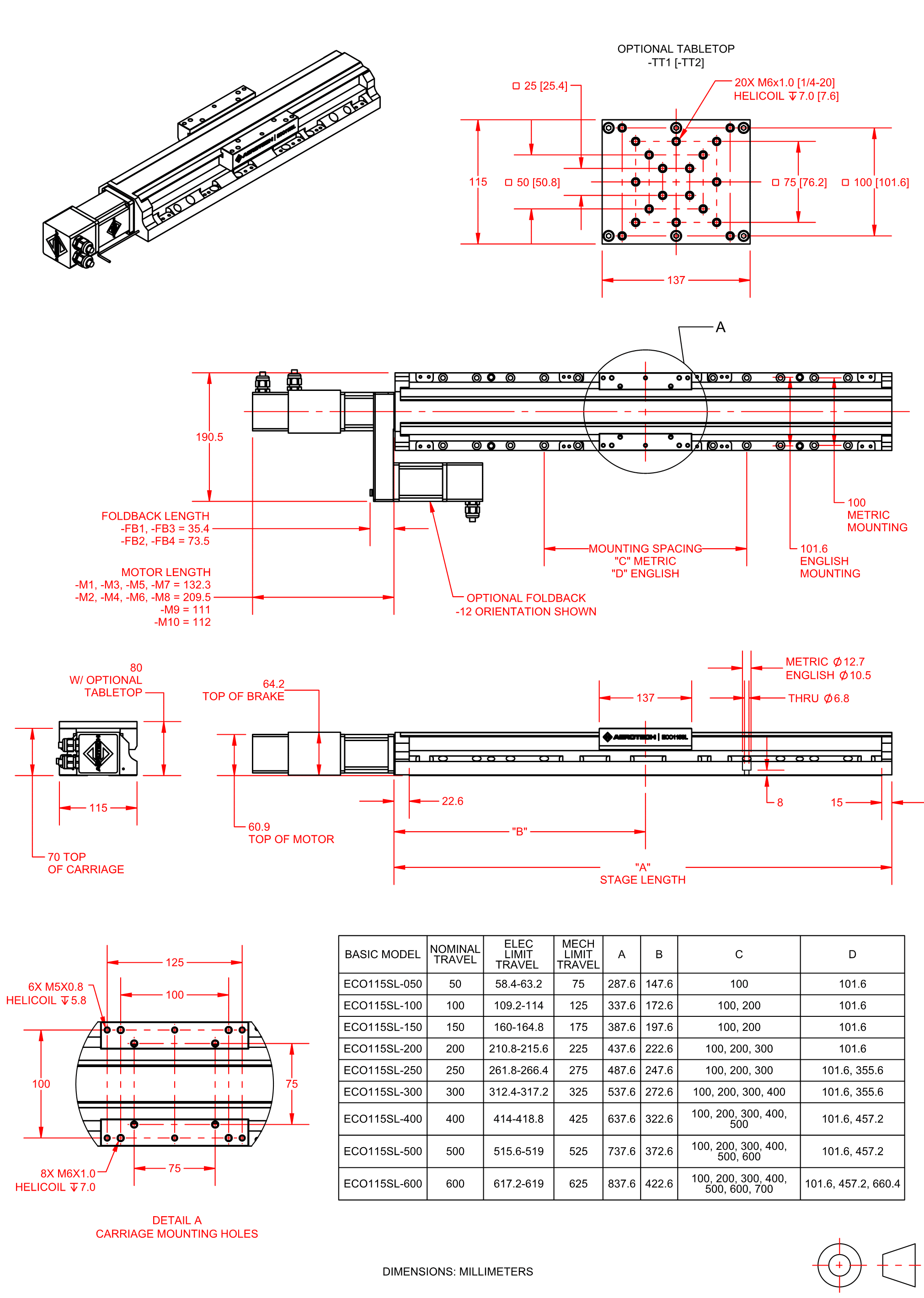

ECO115SL

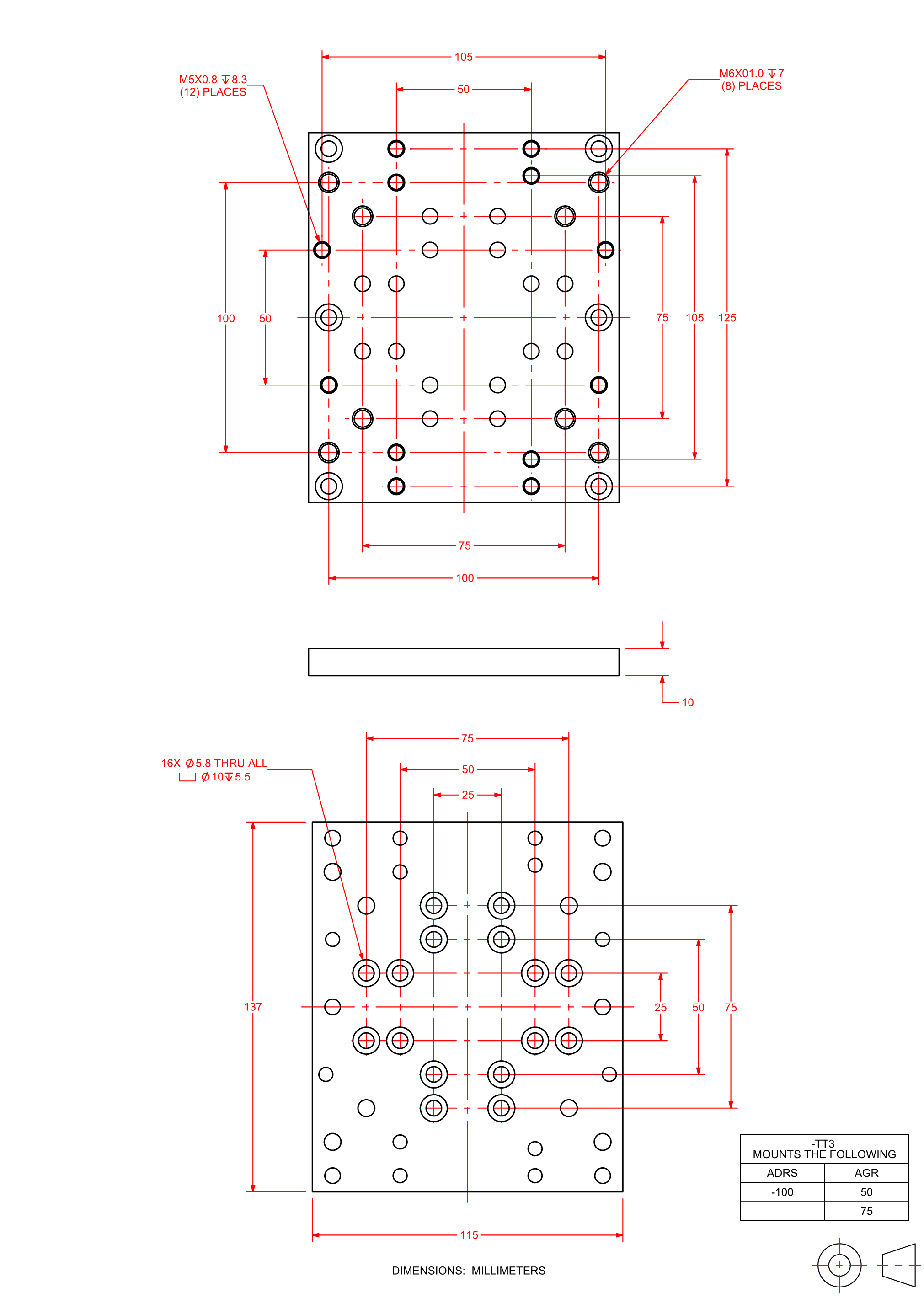

Accessory Tabletop

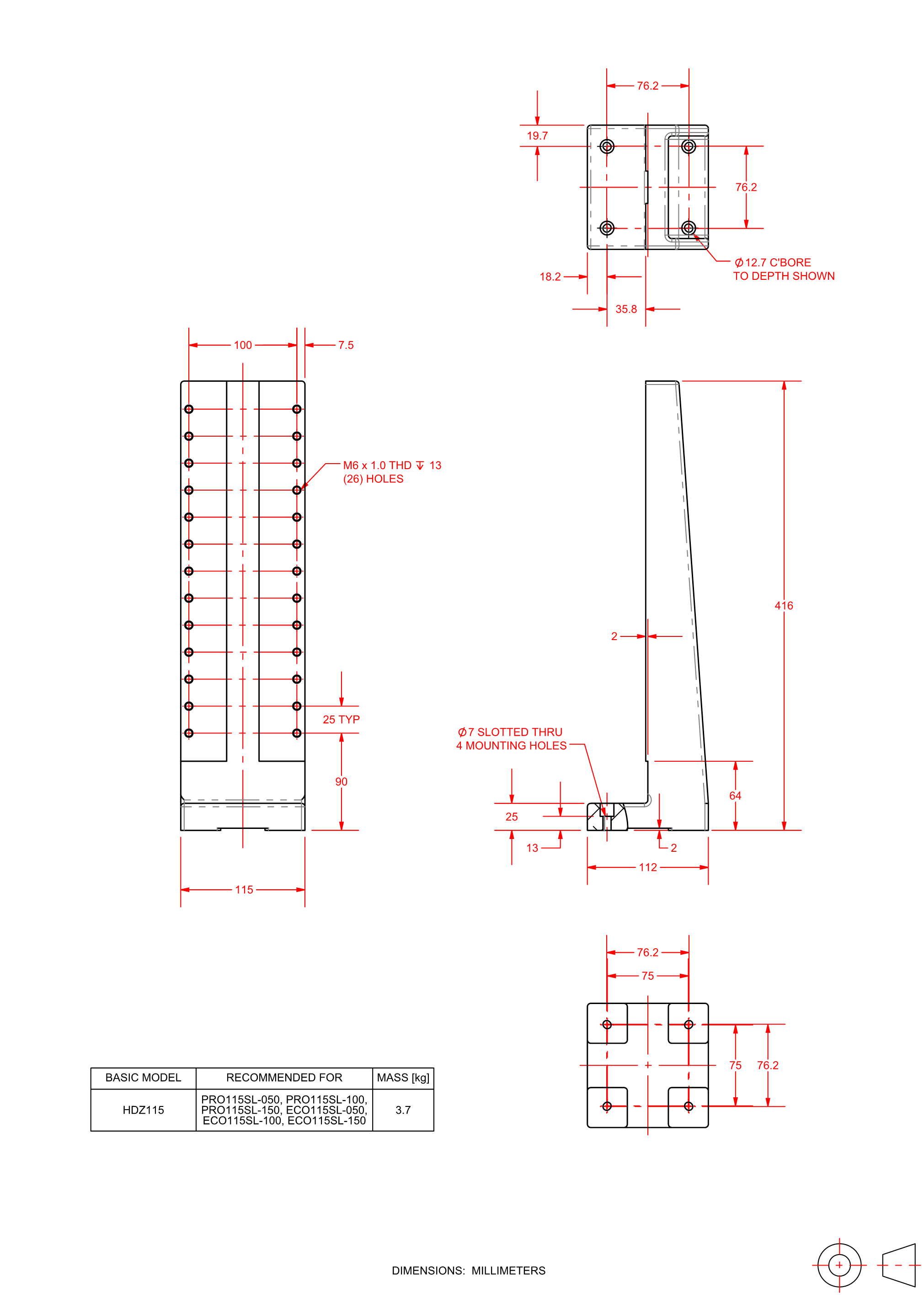

HDZ115 Bracket
Ordering Information
ECO115L Series Linear, Ball-Screw Stage
| Option | Description |
Travel (Required)
| Option | Description |
| -050 | 50 mm travel stage |
| -100 | 100 mm travel stage |
| -150 | 150 mm travel stage |
| -200 | 200 mm travel stage |
| -250 | 250 mm travel stage |
| -300 | 300 mm travel stage |
| -400 | 400 mm travel stage |
| -500 | 500 mm travel stage |
| -600 | 600 mm travel stage |
Tabletop (Optional)
| Option | Description |
| -TT1 | Tabletop with metric dimension mounting |
| -TT2 | Tabletop with English dimension mounting |
| -TT3 | Accessory tabletop with mounting for select rotary stages |
Motor (Optional)
| Option | Description |
| -M1 | BMS60 brushless servomotor and 2500-line TTL encoder |
| -M2 | BMS60 brushless servomotor, 2500-line TTL encoder, and brake |
| -M3 | BMS60 brushless servomotor and 1000-line 1 Vpp encoder |
| -M4 | BMS60 brushless servomotor, 1000-line 1 Vpp encoder, and brake |
| -M5 | BM75 brushless servomotor and 2500-line TTL encoder |
| -M6 | BM75 brushless servomotor, 2500-line TTL encoder, and brake |
| -M7 | BM75 brushless servomotor and 1000-line 1 Vpp encoder |
| -M8 | BM75 brushless servomotor, 1000-line 1 Vpp encoder, and brake |
| -M9 | SM60 high voltage stepper motor |
| -M10 | SM60 high voltage stepper motor and brake |
Foldback Kit (Optional)
| Option | Description |
| -FB1 | Foldback kit for 0.250 inch diameter shaft NEMA 23 motor |
| -FB2 | Foldback kit with brake for 0.250 inch diameter shaft NEMA 23 motor |
| -FB3 | Foldback kit for 0.375 inch diameter shaft NEMA 23 motor |
| -FB4 | Foldback kit with brake for 0.375 inch diameter shaft NEMA 23 motor |
Motor Orientation (Optional)
| Option | Description |
| -2 | Bottom cable exit, optional orientation |
| -3 | Left-side cable exit, standard orientation |
| -4 | Top cable exit, optional orientation |
| -5 | Right-side cable exit, optional orientation |
| -8 | Right-side foldback, standard orientation |
| -12 | Left-side foldback, optional orientation |
Limits (Required)
| Option | Description |
| -LI1 | Normally-closed limit switches; 5 VDC with 9-Pin D connector |
| -LI2 | Normally-open limit switches; 5 VDC with 9-Pin D connector |
Coupling (Optional)
| Option | Description |
| -CP1 | Coupling for 0.250 inch diameter shaft |
| -CP2 | Coupling for 0.375 inch diameter shaft |
Metrology (Required)
| Option | Description |
| -PL0 | No metrology performance plots |
| -PL1 | Metrology, uncalibrated with performance plots |
| -PL2 | Metrology, calibrated (HALAR) with performance plots |
Integration (Required)
Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.
| Option | Description |
| -TAS | Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration. |
| -TAC | Integration - Test as components Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system. |
Accessories (to be ordered as separate line item)
| Option | Description |
| ALIGNMENT-NPA | Non-precision XY assembly |
| ALIGN-NPAZ | Non-precision XZ or YZ assembly |
| ALIGN-PA10 | XY assembly; 10 arc sec orthogonality. Alignment to within 7 microns orthogonality for short travel stages. |
| ALIGN-PA10Z | XZ or YZ assembly with L-bracket; 10 arc second orthogonality. Alignment to within 10 microns orthogonality for short travel stages. |
| ALIGN-PA5 | XY assembly; 5 arc sec orthogonality. Alignment to within 3 microns orthogonality for short travel stages. |
| ALIGN-PA5Z | XZ or YZ assembly with L-bracket; 5 arc second orthogonality. Alignment to within 5 microns orthogonality for short travel stages. |
| HDZ115 | Right angle L-bracket for ECO115SL-050, ECO115SL-100, and ECO115SL-150 only. |
