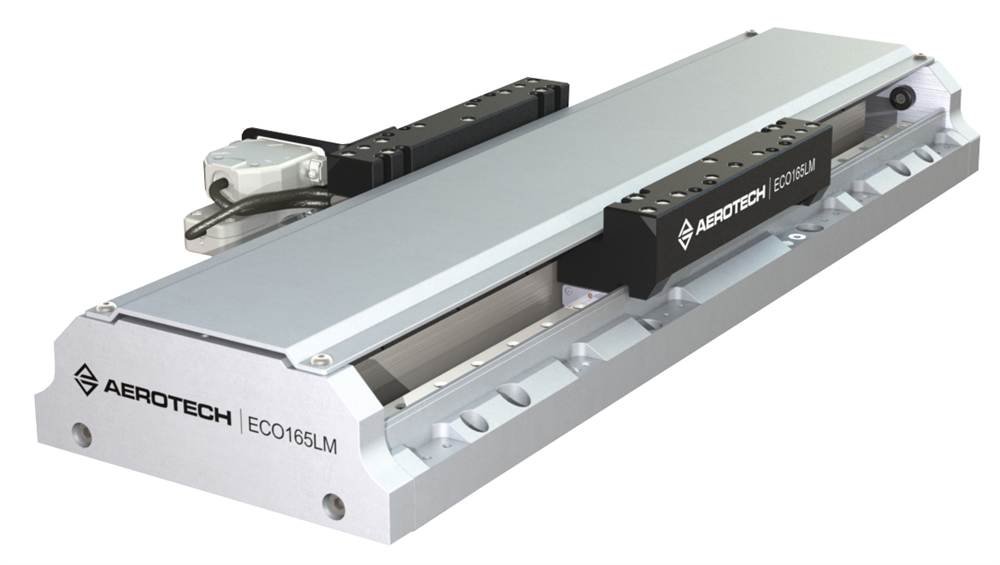

ECO165LM Series Mechanical Bearing, Linear Motor Stage
The ECO165LM series, part of the ECO linear stage family, builds upon our long tradition of producing low total cost of ownership motion designs. Excellent positioning specifications, high stiffness and a variety of options and features — combined with economic pricing — make ECO165LM stages an ideal choice for medium-performance production applications.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Design Features
- High-performance in a cost-effective, economic package
- Rugged mechanical design
- Direct-drive linear motor for precision motion
- Eight models with travels from 100 mm to 600 mm

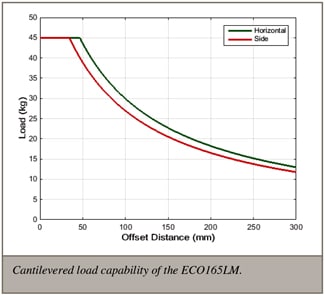

Quality Mechanical Construction
A long-life recirculating linear guide bearing system and quality construction make the ECO165LM an attractive solution for applications where uptime is critical. Unlike low-cost competitive motion stages, the ECO165LM can be integrated into complex machines with the assurance it will perform at a high level and outlast other machine components.
Precision Motion Performance
ECO165LM series stages are optimized with high precision, noncontact linear encoders. Precision recirculating linear bearings, along with Aerotech’s machining and assembly craftsmanship, enable the best geometric performance per unit price on the market.
The precision noncontact encoders enable minimum incremental motion to 10 nm with micrometer-level repeatability. The optional HALAR factory calibration improves positioning accuracy to ±1.5 µm.
Direct-Drive Linear Motor
The ECO165LM comes standard with Aerotech’s field-proven linear motor technology. It is available with a high-performance linear-motor option for applications requiring higher force and acceleration motion profiles. In both cases the ironless forcer coil provides high force with zero cogging for super-smooth velocity and position control. This ironless design is ideal for applications requiring outstanding contour accuracy and smooth velocity profiling. As with all Aerotech linear motor stages, the linear motor has zero backlash, no windup, zero friction, and excellent dynamic responsiveness.
Design and Integration Flexibility
The ECO165LM is available in eight different models with travels ranging from 100 mm to 600 mm and speeds up to 2 m/s. Configurable cable management solutions are available for single and multi-axis systems as standard options.
The base mounting holes are accessible from the outside of the stage for easy mounting. Standard mounting holes for both English and metric optical tables are present in all travels. Tabletops are available with both English and metric mounting patterns. Tabletop hole patterns allow the direct attachment of several types of Aerotech rotary stages.
The ECO165LM stage is a flexible, yet cost-effective, linear motion stage with many options to fit the exact needs of the application. It is easily the best performing and most versatile linear stage per unit price that money can buy.
Dimensions

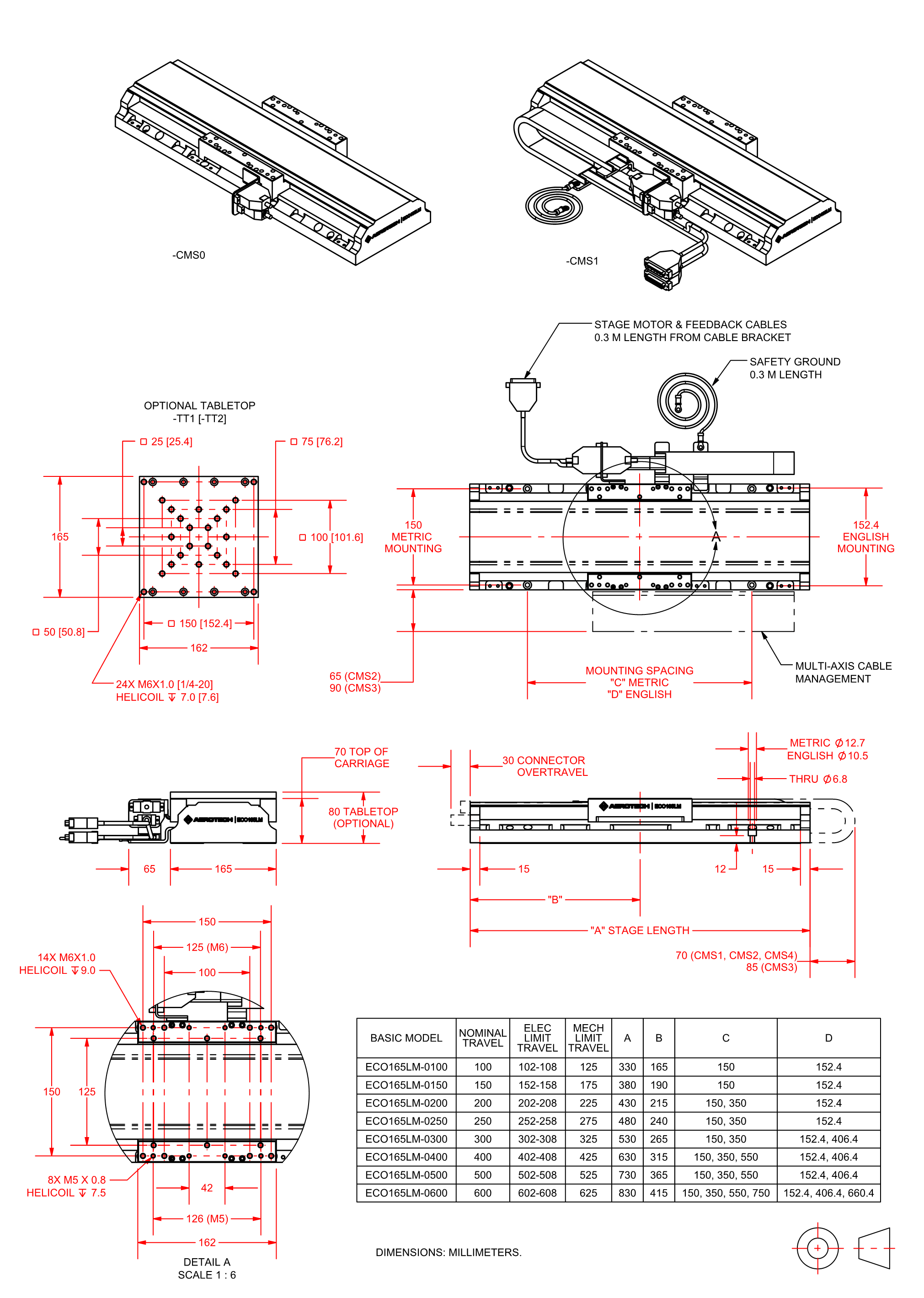

ECO165LM

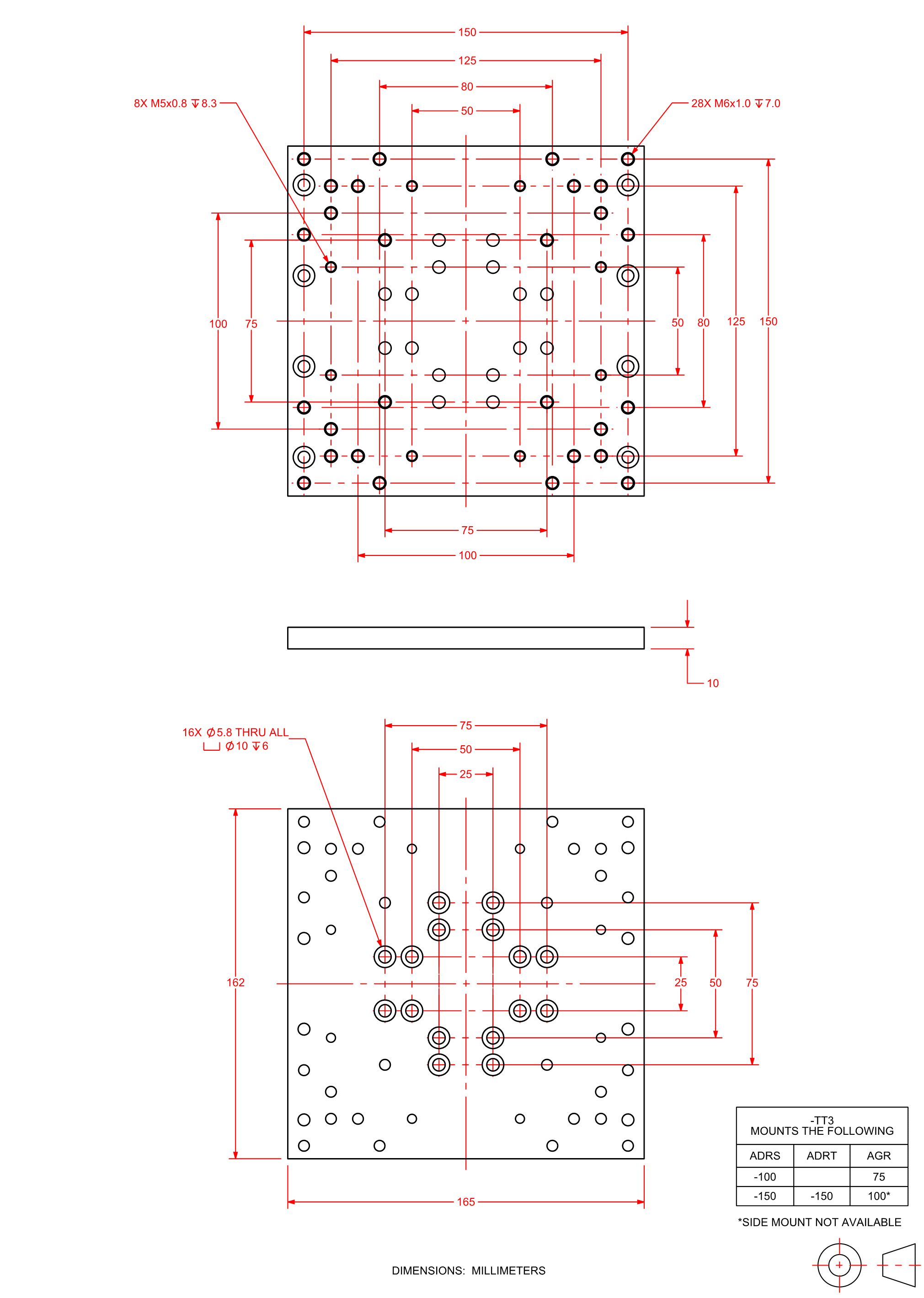

Accessory Tabletop
Ordering Information
ECO165LM Series Linear Motor Stage
Travel (Required)
| Option | Description |
| -0100 | 100 mm travel stage |
| -0150 | 150 mm travel stage |
| -0200 | 200 mm travel stage |
| -0250 | 250 mm travel stage |
| -0300 | 300 mm travel stage |
| -0400 | 400 mm travel stage |
| -0500 | 500 mm travel stage |
| -0600 | 600 mm travel stage |
Motor (Optional)
| Option | Description |
| -M1 | Standard motor option |
| -M2 | High performance motor option |
Tabletop (Optional)
| Option | Description |
| -TT1 | Tabletop with metric dimension mounting |
| -TT2 | Tabletop with English dimension mounting |
| -TT3 | Accessory tabletop with mounting for select rotary stages |
Feedback (Required)
| Option | Description |
| -E1 | Incremental encoder, 1 Vpp |
| -E2 | Incremental linear encoder, 0.1 µm digital TTL output |
Cable Management (Required)
| Option | Description |
| -CMS0 | No external CMS, motor/feedback connector bracket on carriage |
| -CMS1 | External CMS for single axis |
| -CMS2 | External CMS for lower-axis of two-axis ECO (XY) assembly |
| -CMS3 | External CMS for lower-axis of two-axis (XZ or XT) assembly |
| -CMS4 | External CMS for upper-axis of two-axis ECO (XY) assembly |
Lifiting Hardware (Optional)
| Option | Description |
| -LF | Lifting Hardware |
- Lifting option only available on travels 400 mm and greater. Lifting should never be ordered on the upper-axis of an XY set (only order on lower-axis).
Metrology (Required)
| Option | Description |
| -PL0 | No metrology performance plots |
| -PL1 | Metrology, uncalibrated with performance plots |
| -PL2 | Metrology, calibrated (HALAR) with performance plots |
Integration (Required)
Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.
| Option | Description |
| -TAS | Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration. |
| -TAC | Integration - Test as components Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system. |
Accessories (to be ordered as a separate line item)
| Option | Description |
| ALIGN-NPA | Non-precision XY assembly |
| ALIGN-NPAZ | Non-precision XY or YZ assembly |
| ALIGN-PA10 | XY assembly; 10 arc sec orthogonality. Alignment to within 7 microns orthogonality for short travel stages |
| ALIGN-PA10Z | XZ or YZ assembly with L-bracket; 10 arc second orthogonality. Alignment to within 10 microns orthogonality for short travel stages. |
| ALIGN-PA5 | XY assembly; 5 arc sec orthogonality. Alignment to within 3 microns orthogonality for short travel stages. |
| ALIGN-PA5Z | XZ or YZ assembly with L-bracket; 5 arc second orthogonality. Alignment to within 5 microns orthogonality for short travel stages. |
