ANT130-XY NanoTranslation, Two Axis, Cross-Roller Bearing Linear Stage
Linear Motor Stage

The ANT130-XY cross-roller-bearing, direct drive, dual-axis stage is a three-piece design that allows travel in two dimensions (X and Y). The sleek design provides an extremely low profile of only 85 mm with travel options including 60 x 60 mm, 110 x 110 mm, and 160 x 160 mm. Aerotech’s direct-drive technology has no hysteresis or backlash, enabling accurate and repeatable nanometer-scale motion in both the X and Y dimensions. Performance is unmatched with high resolution (1 nm), repeatability (50 nm), accuracy (250 nm), and in-position stability (3 nm).

Harmonic Cancellation Algorithm
Harmonic Cancellation

Aerotech’s Harmonic Cancellation algorithm dramatically reduces positioning errors on systems with periodic trajectory commands or disturbances. This feature, part of the Dynamic Controls Toolbox, provides an easy-to-use command set and graphical user interface to enable the algorithm and to extract the highest possible performance from your investment in a precision motion control system.

High-Precision Pan and Tilt Mounts

Pan and Tilt Optical Mount

Aerotech Pan and Tilt (APT) systems expand our product line to meet the needs of the security, defense, and surveillance markets worldwide. The APT series high-precision pan and tilt systems combine proven high-precision mechanics with industry-leading control technology into a single, unified package. APT performance specifications include continuous 360° pan with a maximum speed of 180°/second, tilt range of ±95° with a maximum speed of 180°/second, position resolution of 7.6 arc seconds, and position accuracy of 120 arc seconds. The 35 kg payload allows mounting of a variety of different cameras.

Capabilities in Laser Processing and Micromachining Brochure
Capabilities in Laser Processing

Aerotech's Laser Processing and Micromachining brochure highlights our high-performance motion solutions for laser micromachining, cutting, welding, marking and engraving, drilling, ablation, cladding, and peening. The brochure includes advanced control capabilities such as our Position Synchronized Output feature, a wide variety of single and multi-axis linear, rotary, lift, and goniometric stages, and complete motion subsystems. Laser Processing and Micromachining is available as a downloadable pdf or in hard copy.

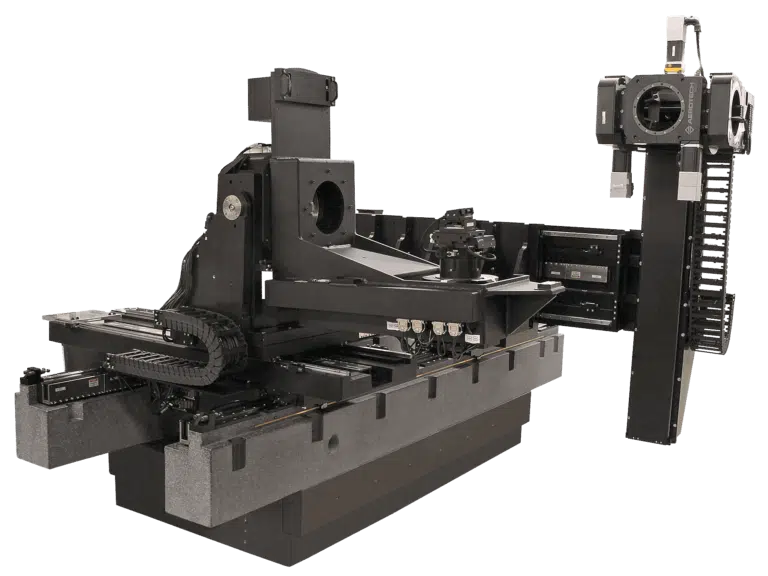

Since 1970, Aerotech has designed and manufactured the highest performance motion control and positioning systems for our customers. We are a leading supplier of motion control products to industry, government, science, and research institutions around the world. Our precision motion control products provide the critical performance for today’s demanding applications in markets such as: medical device and life sciences, semiconductor and flat panel, photonics, automotive, data storage, laser processing, military/aerospace, electronic manufacturing and test, assembly, research and development, and others requiring high precision, high throughput motion control solutions. The breadth of our product line, including automated nanopositioners, planar air-bearing systems, high-speed gantries, linear and rotary and lift stages, brushless linear and rotary servomotors and drives, single- and multi-axis motion controllers, goniometers, and gimbals/optical mounts, makes us unique among motion control manufacturers. From concept to final certification, our proven products, motion control and positioning technologies assure the success of our custom engineered motion control systems.


   Software Revisions

   A3200 v3.00.001
   Soloist v3.00.001
   Ensemble v3.00.001
   Motor Sizer v1.03
