Description

Design Features

  • Controls drive brush, brushless, voice coil & stepper motors
  • Connects through the HyperWire® fiber-optic bus, which has 20 times the bandwidth of 100BASE-T Ethernet buses
  • Produces up to 600W power output from integral power supply
  • Includes safe torque off (STO) safety circuit
  • Features 67.1 MB drive array with more than 16 million 32-bit elements
  • Offers many optional features, including Multi-axis Position Synchronized Output (PSO) and I/O expansion board

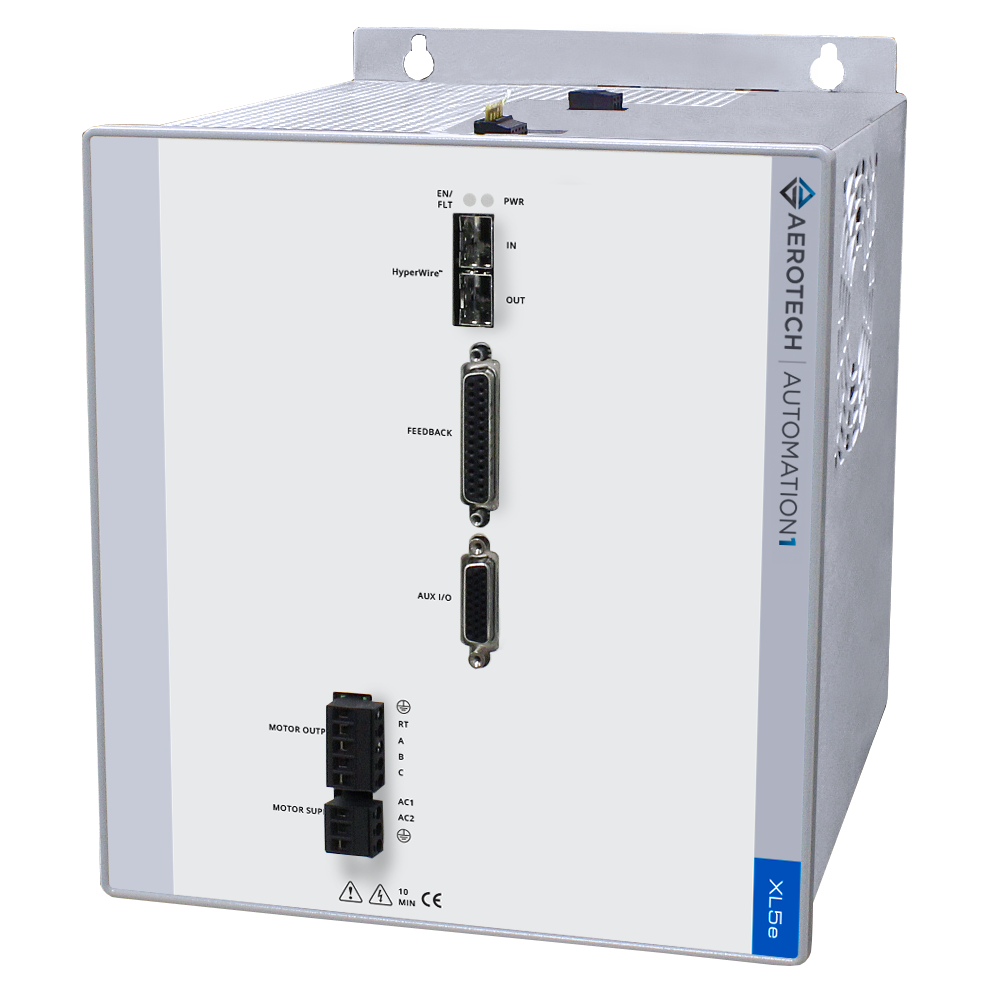

You’ll see more accurate position tracking, more precise in-position stability and smaller minimum step sizes because the XL5e’s performance is driven by high-end components that enable zero amplifier “dead time” and high resolution, low-noise current sensing. A highly integrated design means you have control and bus power supplies, servo and current controllers, linear power amplifiers, cooling fans and heatsinks in a single package.

Automation1

The XL5e is a part of the user-friendly Automation1 motion control platform, which includes the following:

Packed with Features

Standard features for the Automation1 XL5e include safe torque off (STO), a data array with more than 16 million 32-bit elements, digital and analog I/O, Position Synchronized Output (PSO), dedicated home and end-of-travel limit inputs and an enhanced current sense device.

Feedback Flexibility

The standard XL5e accepts square-wave and absolute encoder feedback signals. With the optional encoder multiplier feature, sine-wave encoders can be multiplied by up to 65,536, making XL5e our highest-resolution position feedback drive. Dual-multiplied and dual-absolute encoder feedback is supported.

Control Your Process

The XL5e is more than a motion control device. It also includes many process control features. Empowered with Aerotech’s PSO functionality, a single-axis XL5e can track up to three encoders in real time to trigger a process tool like an industrial laser or camera.

Each XL5e can be configured with an optional I/O expansion board, greatly increasing the number of I/O points. The I/O board includes a dedicated PSO output, and PSO can be used with a synchronization input to synchronize process control with an external mode-locked frequency input.

Low Noise Operation

Linear amplifiers are characterized by low noise operation, and the XL5e is no different. This is because linear amplifiers do not incorporate on-off pulse width modulation (PWM) switching to control motor currents.

Ready To Connect

Two HyperWire connections make it simple to connect the XL5e with other Automation1 drive hardware in a multi-axis configuration. A 24-volt one amp brake output is included. The device is CE approved, NRTL safety certified and EU 2015/863 RoHS 3 directive certified. The power amplifier bandwidth is software selectable.

XL5e Specifications

Feature
Description
Position Synchronized Output (PSO) Standard:


One-axis PSO (includes one-axis part-speed PSO)




Optional:


Two-axis PSO (includes two-axis part-speed PSO)


Three-axis PSO (includes three-axis part-speed PSO)


Two-axis part-speed PSO only


Three-axis part-speed PSO only
25-Pin Motor Feedback Connector High-speed differential inputs (encoder sin, cos and marker)




CW and CCW limits




Hall effect sensor inputs (A, B and C)




Analog motor temperature input (accepts digital)




Brake output
26-Pin Auxiliary Feedback Connector High-speed differential inputs (encoder sin, cos and marker)*




4x optically isolated digital inputs




4x optically isolated digital outputs




1x 16-bit differential ±10 V analog input




1x 16-bit single-ended ±10 V analog output




2x optically isolated high-speed inputs




*This channel is bidirectional and can be used to echo out encoder signals
Multiplier Options MX0 option:


Primary encoder: 40 million counts per second square-wave input


Auxiliary encoder: 40 million counts per second square-wave input




MX2 option:


Primary encoder: 2 MHz/450 kHz (bandwidth selectable) sine-wave input, encoder multiplier up to 65,536


Auxiliary encoder: 40 million counts per second square-wave input




MX3 option:


Primary encoder: 2 MHz/450 kHz (bandwidth selectable) sine-wave input, encoder multiplier up to 65,536


Auxiliary encoder: 160 kHz sine-wave input, encoder multiplier up to x16,384*




*Encoders multiplied with this input cannot be echoed out.
I/O Expansion Board (-EB1) 1x additional PSO connection point




16x digital inputs, optically isolated




16x digital outputs, optically isolated




3x analog inputs, 16-bit, differential, ±10 V




3x analog outputs, 16-bit, single-ended, ±10 V
Drive Array Memory 67.1 MB (16,777,216 32-bit elements)
High Speed Data Capture Yes (50 ns latency)
Safe Torque Off (STO) Yes, SIL3/PLE/Cat 4
HyperWire® Connections 2x HyperWire small form-factor pluggable (SFP) ports
Automatic Brake Control Standard; 24 V at 1 A
Absolute Encoder BiSS C Unidirectional; EnDat 2.1; EnDat 2.2
Current Loop Update Rate 20 kHz
Servo Loop Update Rate 20 kHz
Operating Temperature 0 to 50 °C
Storage Temperature -30 to 85 °C
Weight 11.31 kg (24.93 lb)
Compliance CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive

XL5e Amplifier Specifications

Feature
XL5e-10-VB4
XL5e-20-VB4
XL5e-10-VB5
XL5e-10-VB6
Nominal Motor Bus Voltage ±40 V ±40 V ±60 V ±80 V
Peak Output Current 10 Apk 20 Apk 10 Apk 10 Apk
Continuous Output Current @ 25°C(1)(2) 5 Apk / 5 Apk 5 Apk / 9 Apk 3.2 Apk / 6 Apk 2.5 Apk / 4.5 Apk
Continuous Output Current @ 35°C(1)(2) 4 Apk / 5 Apk 4 Apk / 8 Apk 2 Apk / 5.5 Apk 2 Apk / 4 Apk
Maximum Continuous Total Power Dissipation (2)(3)(4) 340 W / 585 W 340 W / 585 W 340 W / 585 W 340 W / 585 W
Peak Amplifier Power Dissipation per Phase(5) 1200 W 1200 W 1200 W 1200 W
Effective Heatsink Thermal Resistance (2) .15°C/W /
.085°C/W
.15°C/W /
.085°C/W
.15°C/W /
.085°C/W
.15°C/W /
.085°C/W
Maximum Transistor Temperature 75°C 75°C 75°C 75°C
Time to Reach Maximum Temperature at Maximum Continuous Power 10 minutes 10 minutes 10 minutes 10 minutes
Motor Supply - Input Frequency 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz
Motor Supply - Inrush Current 34 Apk @ 120 V /
68 Apk @ 240 V
34 Apk @ 120 V /
68 Apk @ 240 V
34 Apk @ 120 V /
68 Apk @ 240 V
34 Apk @ 120 V /
68 Apk @ 240 V
Motor Supply - AC Line Voltage AC input (switch selectable):


100 VAC (90 - 112 VAC)


120 VAC (103 - 127 VAC)


200 VAC (180 - 224 VAC)


240 VAC (207 - 254 VAC)
AC input (switch selectable):


100 VAC (90 - 112 VAC)


120 VAC (103 - 127 VAC)


200 VAC (180 - 224 VAC)


240 VAC (207 - 254 VAC)
AC input (switch selectable):


100 VAC (90 - 112 VAC)


120 VAC (103 - 127 VAC)


200 VAC (180 - 224 VAC)


240 VAC (207 - 254 VAC)
AC input (switch selectable):


100 VAC (90 - 112 VAC)


120 VAC (103 - 127 VAC)


200 VAC (180 - 224 VAC)


240 VAC (207 - 254 VAC)
Motor Supply - Input Current (Maximum, Continuous) 7 Arms @ 120 V /
3.5 Arms @ 240 V
7 Arms @ 120 V /
3.5 Arms @ 240 V
7 Arms @ 120 V /
3.5 Arms @ 240 V
7 Arms @ 120 V /
3.5 Arms @ 240 V
Control Supply - Input Frequency 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz
Control Supply - Inrush Current 16 Apk 16 Apk 16 Apk 16 Apk
Control Supply - Input Current (Maximum, Continuous) 0.25 Arms 0.25 Arms 0.25 Arms 0.25 Arms
Current Loop Bandwidth 2500 Hz (software selectable) 2500 Hz (software selectable) 2500 Hz (software selectable) 2500 Hz (software selectable)
Minimum Load Resistance 0 Ω 0 Ω 0 Ω 0 Ω
Minimum Load Inductance 0 H 0 H 0 H 0 H
Modes of Operation Brushless, brush, stepper Brushless, brush, stepper Brushless, brush, stepper Brushless, brush, stepper
Protection Features Peak current limit, over temperature, RMS current limit, dynamic power limit (SOA) Peak current limit, over temperature, RMS current limit, dynamic power limit (SOA) Peak current limit, over temperature, RMS current limit, dynamic power limit (SOA) Peak current limit, over temperature, RMS current limit, dynamic power limit (SOA)
Encoder Supply 5V @ 500 mA 5V @ 500 mA 5V @ 500 mA 5V @ 500 mA

Dimensions

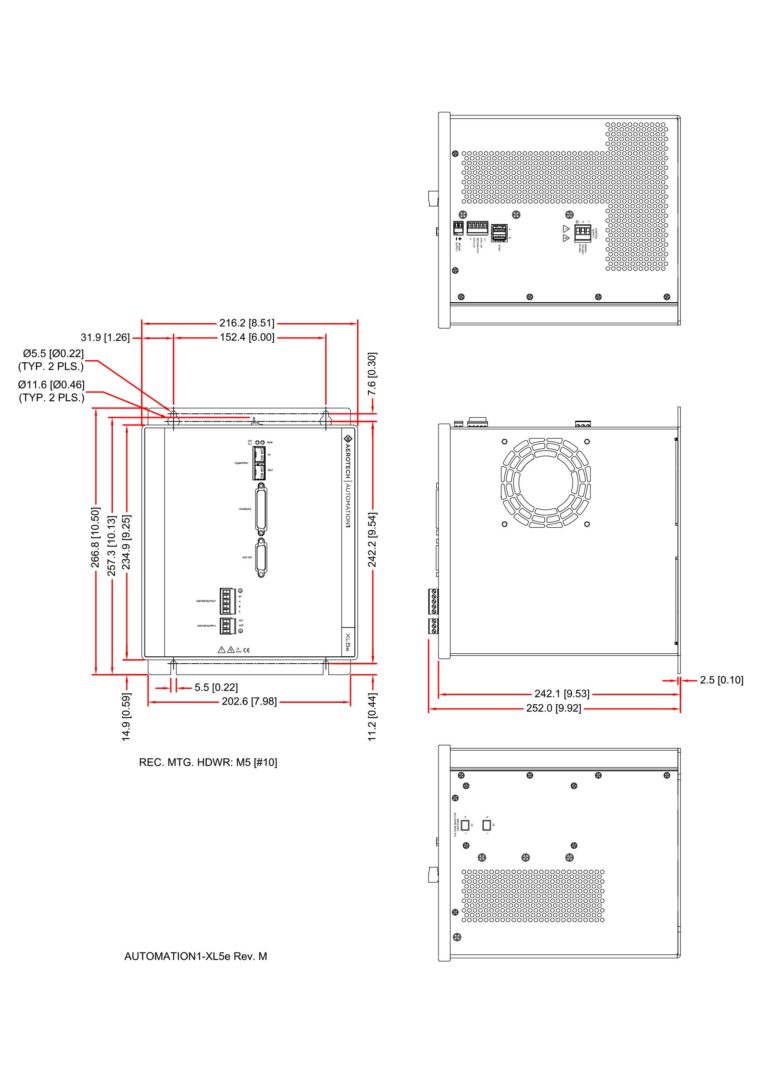

Automation1 XL5e, -EB0 Option

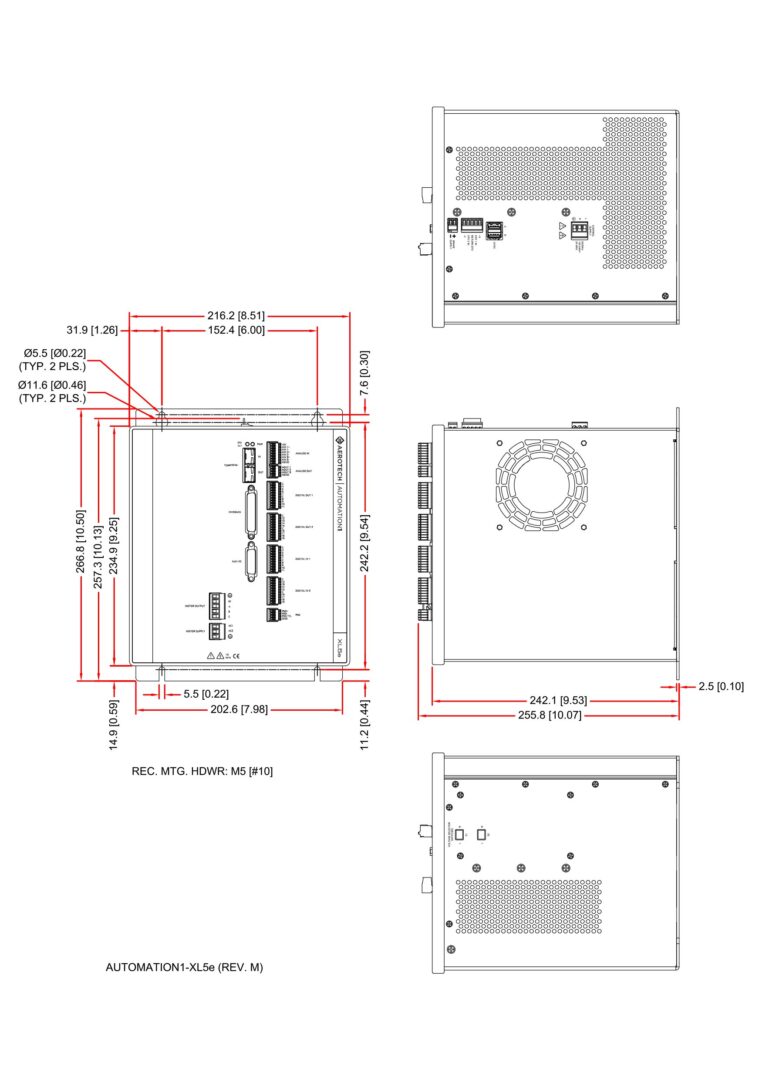

Automation1 XL5e, -EB1 Option



Ordering Information

Automation1-XL5e

Option Description
Automation1-XL5e Automation1-XL5e High-Performance Linear Servo Motor Drive

Peak Current

Option Description
-10 10 A Peak Current (Default)
-20 20 A Peak Current

Bus Voltage

Option Description
-VB4 ± 40 VDC (600 W Power Supply)
-VB5 ± 60 VDC (600 W Power Supply)
-VB6 ± 80 VDC (600 W Power Supply)

Input Line Voltage

Option Description
-VL1 120 VAC Input Line Voltage
-VL2 240 VAC Input Line Voltage
-VL3 100 VAC Input Line Voltage
-VL4 200 VAC Input Line Voltage

Expansion Board

Option Description
-EB0 No Expansion Board (Default)
-EB1 I/O Expansion Board

Multiplier

Option Description
-MX0 No Encoder Multiplier (Default)
-MX2 2 MHz/450 kHz x65536 Multiplier (Primary), No Multiplier (Auxiliary)
-MX3 2 MHz/450 kHz x65536 Multiplier (Primary), 160 KHz x16384 Multiplier (Auxiliary)

PSO

Option Description
-PSO1 One-Axis PSO (includes One-Axis Part-Speed PSO) (Default)
-PSO2 Two-Axis PSO (includes Two-Axis Part-Speed PSO)
-PSO3 Three-Axis PSO (includes Three-Axis Part-Speed PSO0
-PSO5 Two-Axis Part-Speed PSO
-PSO6 Three-Axis Part-Speed PSO
