Description

Design Features

  • Available in 8 models with torque ranging from 0.17 N·m to 27.6 N·m
  • Configurable with optional fail-safe holding brake
  • Features optional IP65-level construction for use in harsh environments
  • Available in standard NEMA frame sizes
  • Follows the EU 2015/863 RoHS 3 directive

Wide Torque Range

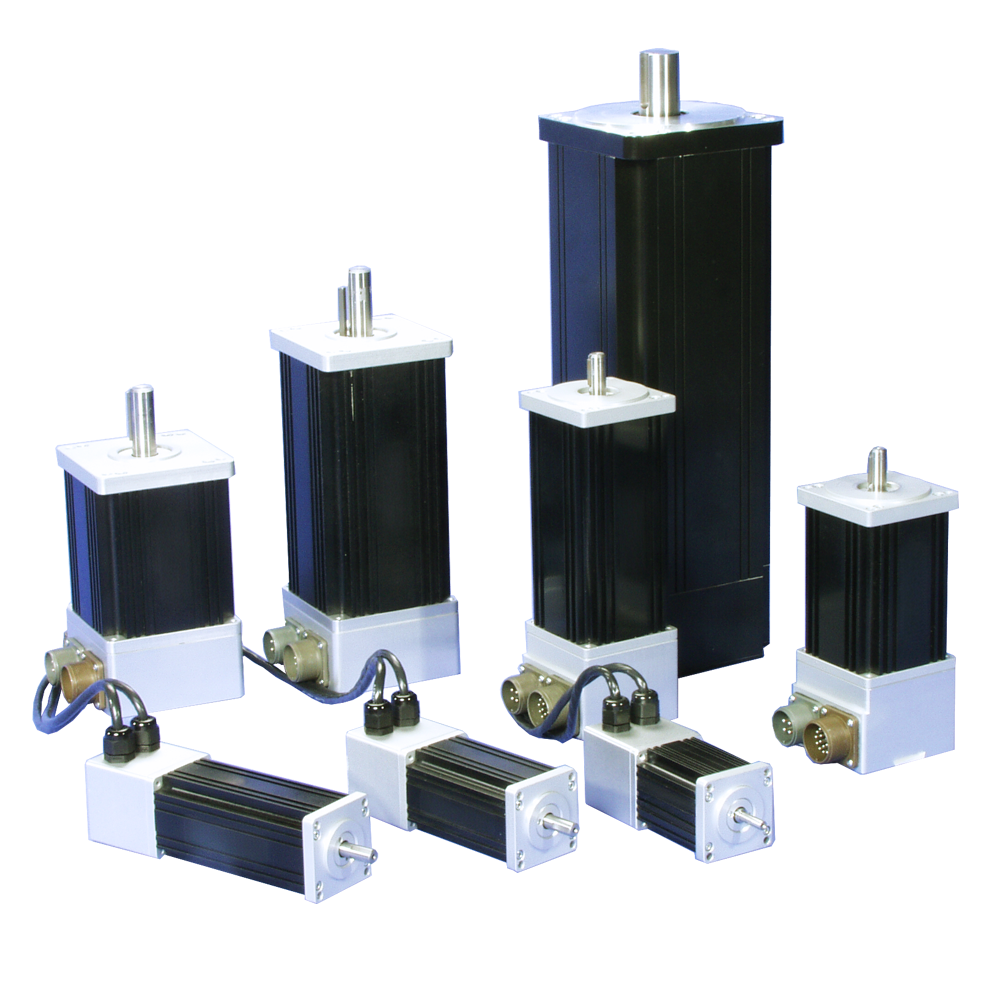

The BM motor series covers a wide range of torque and package sizes. Continuous output torque ranges from 0.16 N·m (22.5 oz·in) to 31.6 N·m (280 lb·in), with peak torques to 94.9 N·m (840 lb·in). Standard frame sizes include NEMA 17, 23, 34, 42 and 56. This makes it easy to mount any motor to Aerotech’s gearbox line with no adapter plates. These motors are well-suited to general purpose and high-end servo applications.

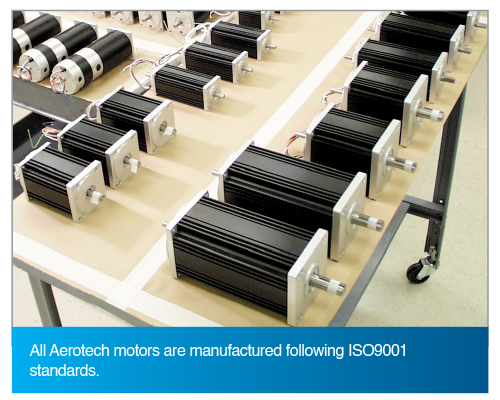

Application Flexibility

The standard motor has a 1000-line encoder (4000-line count after quadrature), RS-422 line driver output with Hall effect device outputs for commutation, and MS connectors. Options include increased encoder resolution, sealing for IP65 level protection, brakes, and gearboxes. Standard models can be delivered from stock and custom variations can be engineered to your requirements with minimal lead time.

Need help sizing your motor? Try Aerotech's Motor Sizer software to specify the ideal motor for your application.

Dimensions

NEMA 17 [BM24]



NEMA 23 [BM75, BM130, BM200]



NEMA 34 [BM250, BM500]



NEMA 42 [BM800, BM1400]



Ordering Information

NEMA Brushless Rotary Servomotors

Option Description
BM24 NEMA 17 brushless rotary servomotor
BM75 NEMA 23 brushless rotary servomotor
BM130 NEMA 23 brushless rotary servomotor
BM200 NEMA 23 brushless rotary servomotor
BM250 NEMA 34 brushless rotary servomotor
BM500 NEMA 34 brushless rotary servomotor
BM800 NEMA 42 brushless rotary servomotor
BM1400 NEMA 42 brushless rotary servomotor

Connectors (Required)

Option Description
-MS Integral cable w/MS connector for Fbk and Mtr
-D25 Integral cable w/D25 Fbk and 4D Mtr (only available on BM24, BM75, BM130, and BM200)
-D25-9D Integral cable w/D25 Fbk, 4D Mtr, and 9D Limit (only available on BM75, BM130, and BM200)
-D25-FLB Integral cable w/D25 Fbk, Fly Leads for Mtr, and 9D Limit (only available on BM75, BM130,
and BM200)
-D25-5DU Integral cable w/D25 Fbk, 5D Mtr, and 9D Limit (only available on BM75, BM130, and BM200)
-D25-9D-CMS Integral cable w/D25 Fbk, 4D Mtr, and 9D Limit - CMS Only (only available on BM75,
BM130, and BM200)
-D25-4TS Integral cable w/D25 Fbk, 4TS Mtr, and 9D Limit (only available on BM75, BM130, and
BM200)

Brake (Optional)

Option Description
-BK Holding Brake

Feedback (Required)

Option Description
-E1000H 1000 lines/rev TTL incremental encoder w/Hall tracks not available for BM24
-E2500H 5000 lines/rev TTL incremental encoder w/Hall tracks not available for BM24
-E5000H 1000 lines/rev 1 Vpp incremental encoder w/Hall tracks
-E1000ASH 1000 lines/rev 1 Vpp incremental encoder w/Hall tracks (-E1000ASH); not available for BM22

Cable Type (Optional)

Option Description
-HF High flex cable; only available on BM75, BM130, and BM200

Cable Length (dm) (Optional)

Option Description
-xx Cable length in decimeters (3.8 dm is default); only available on BM75, BM130, and BM200

Shaft Seal (Optional)

Option Description
-NS Nitrile front shaft seal; only available on BM250, BM500, BM800 and BM1400

Vacuum Preparation (Optional)

Option Description
-VAC6 Vacuum preparation to 10-6 Torr
Note:
  1. Not available with BM24.

Accessories (Optional)

Option Description
MC-HPD25-M Connector; HPD motor power mate
MC-DB25-F Connector; DB25 motor feedback mate
MCM-3 Connector; MS motor power mate
MCF-3 Connector; MS motor feedback mate
Note:
  1. Accessories are ordered as separate line items.
