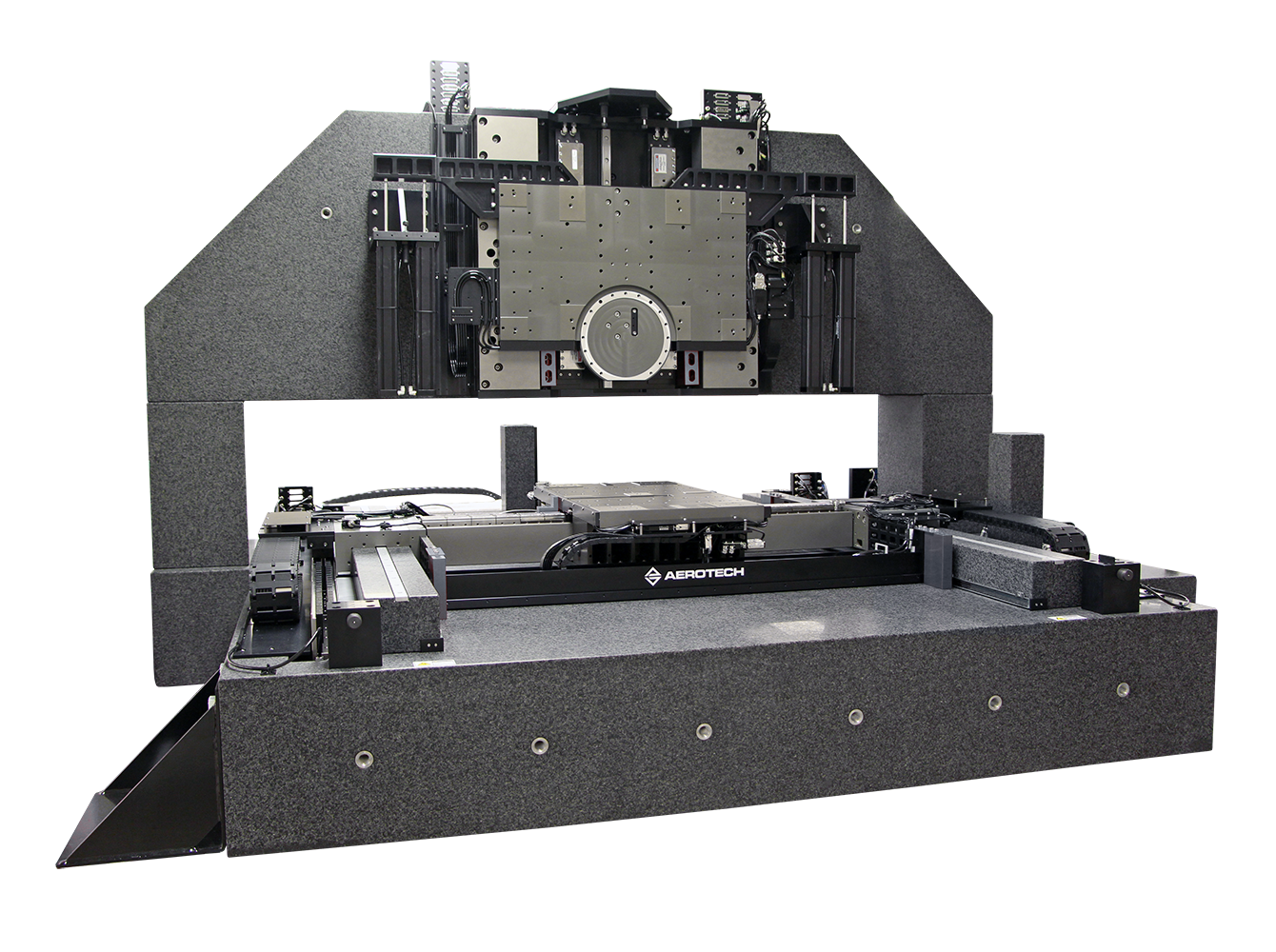

Heavy-Duty Planar Air Bearing System

  • Planar XY air-bearing designed for low error motions with >125 kg payload capacity and up to 100 N of process forces
  • Air-bearing direct-drive z-axis with pneumatic counterbalances designed for 60 kg payloads and up to 100 N of process forces
  • Laser interferometer feedback system (not shown) to minimize work point motion error
  • Sensors designed into machine frame and base structure for control feedback and move profile optimization
  • Example applications include optics manufacturing and metrology
