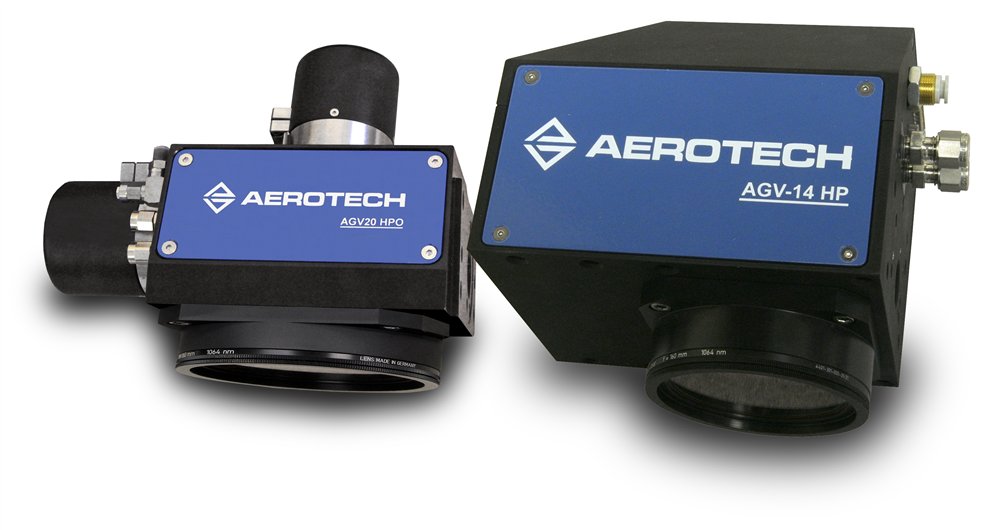

AGV-HP(O) High-Accuracy Laser Scan Heads
With AGV-HP(O), which offers the highest level of accuracy of any laser scanner, you’ll produce consistent parts with smaller, more precise features. The AGV HP(O)’s highly repeatable and thermally stable feedback sensors allow scanners to be calibrated down to single-digit, micron-level accuracy over the field of view.
Description
Specifications

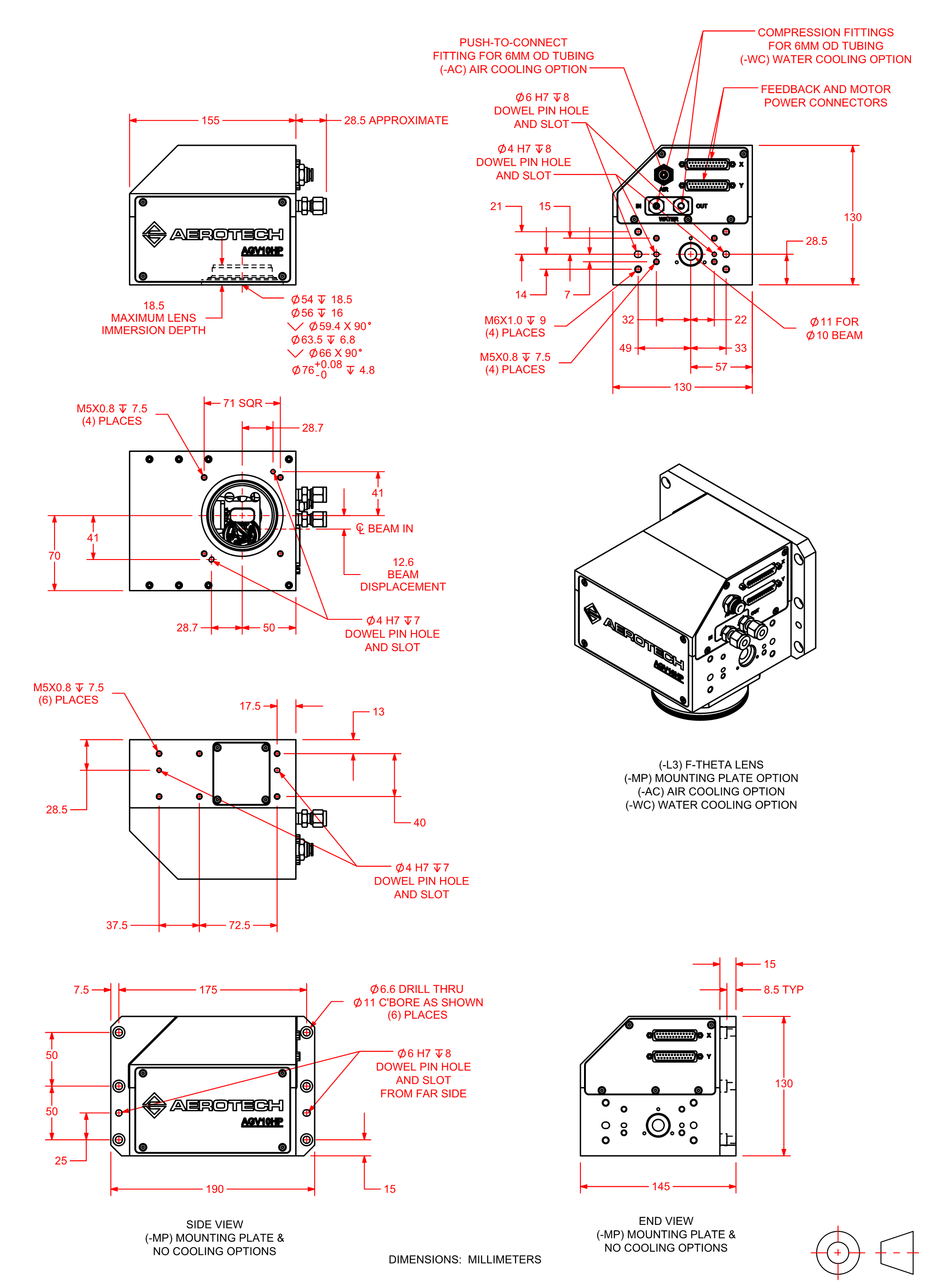

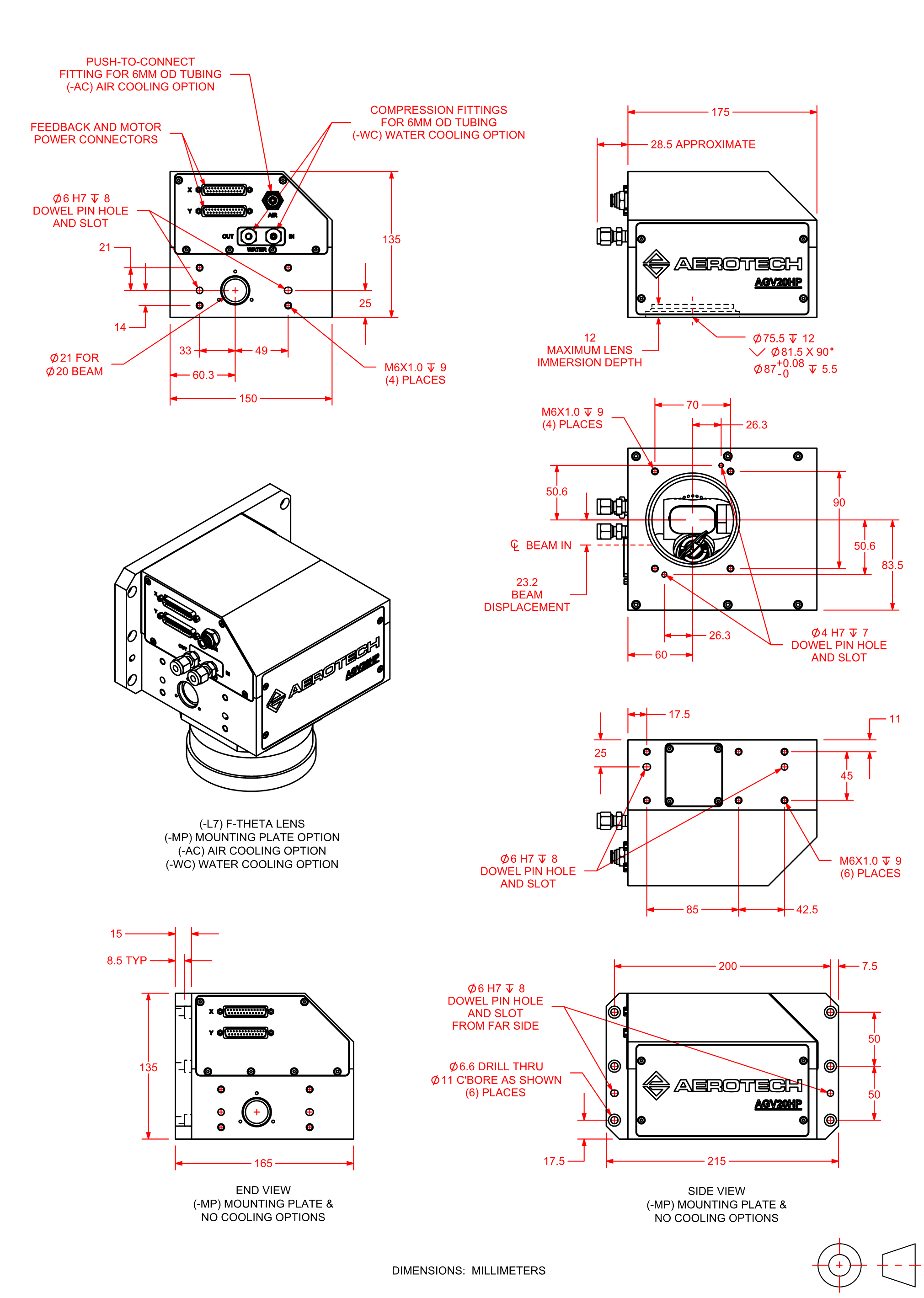

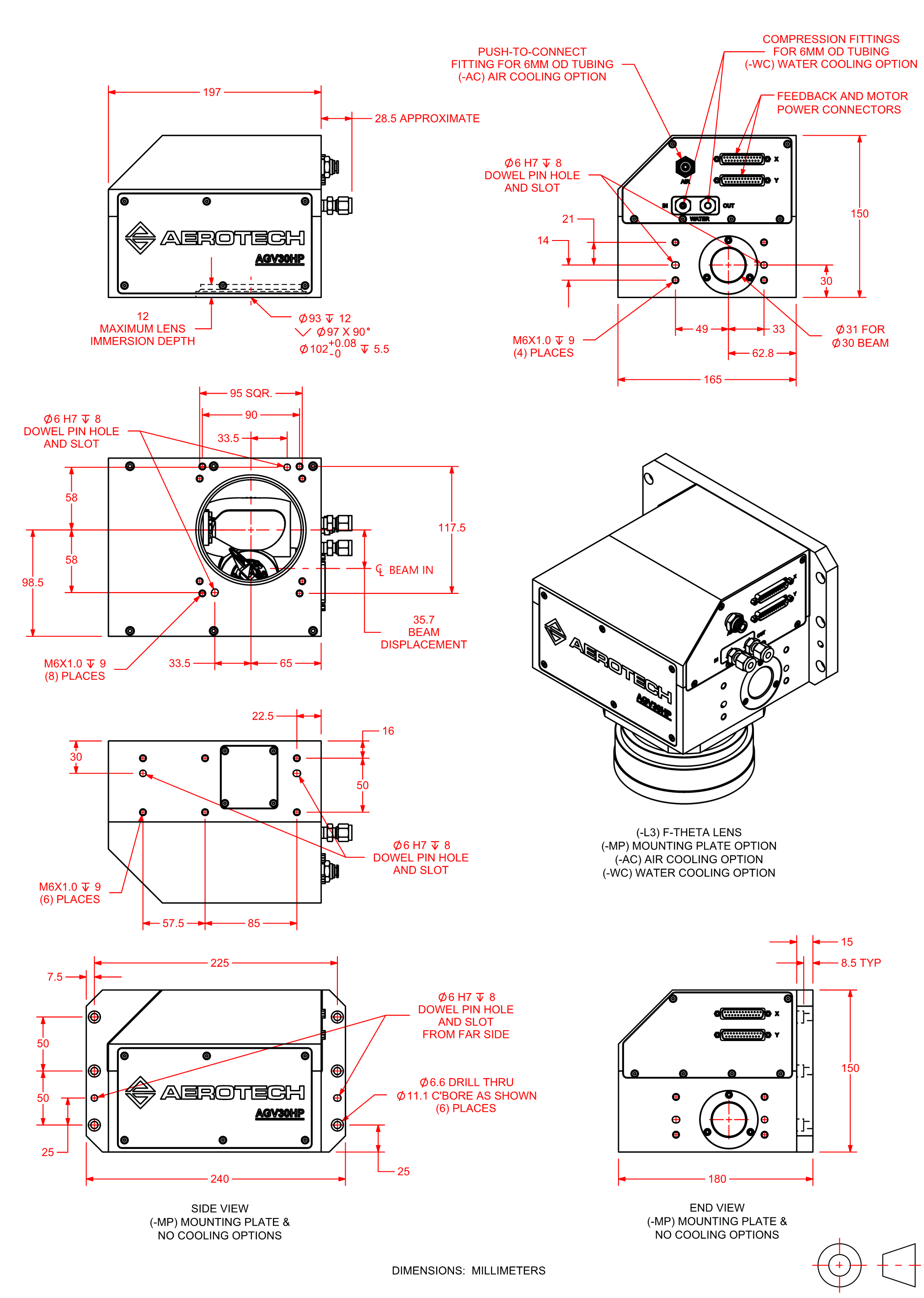

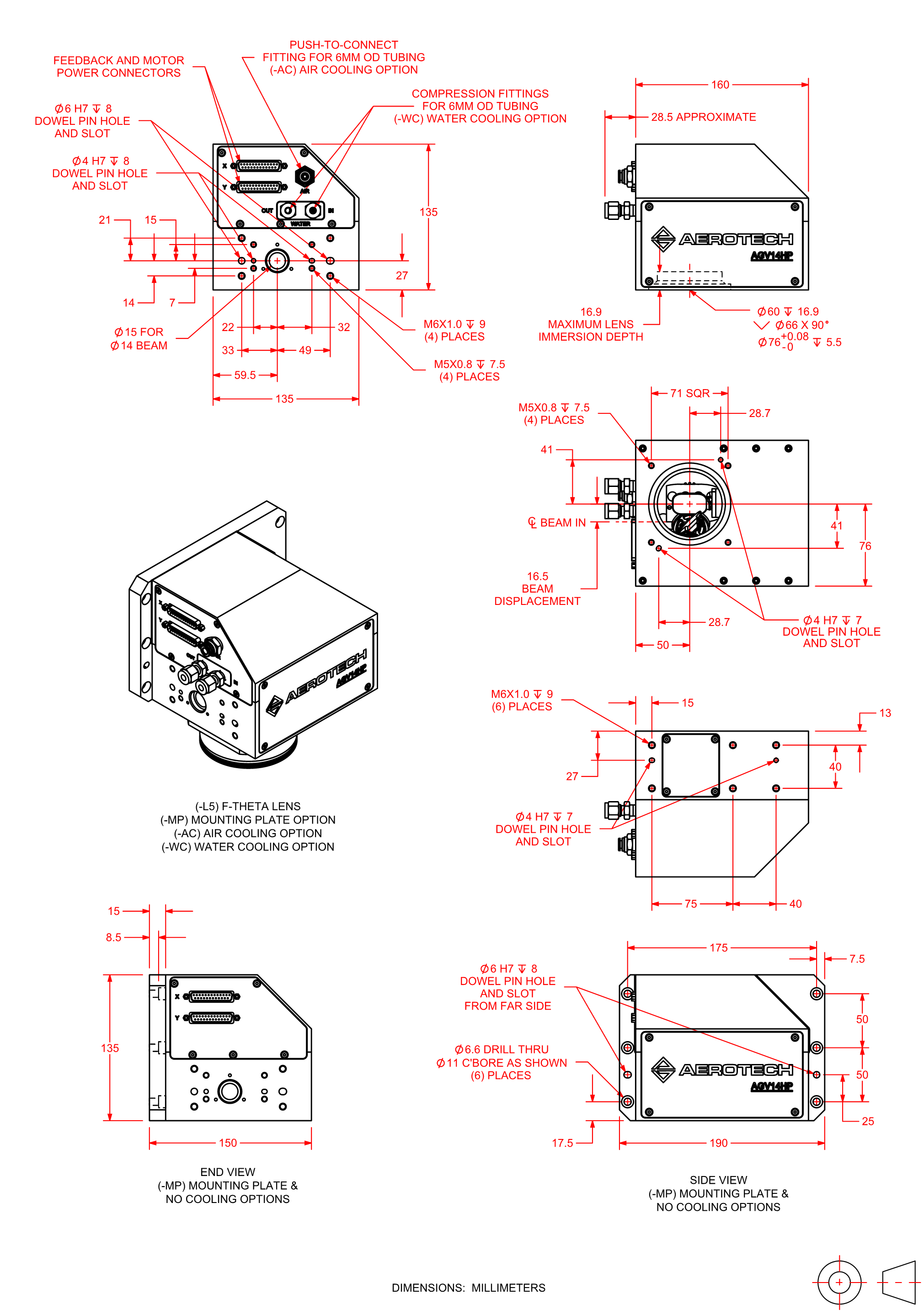

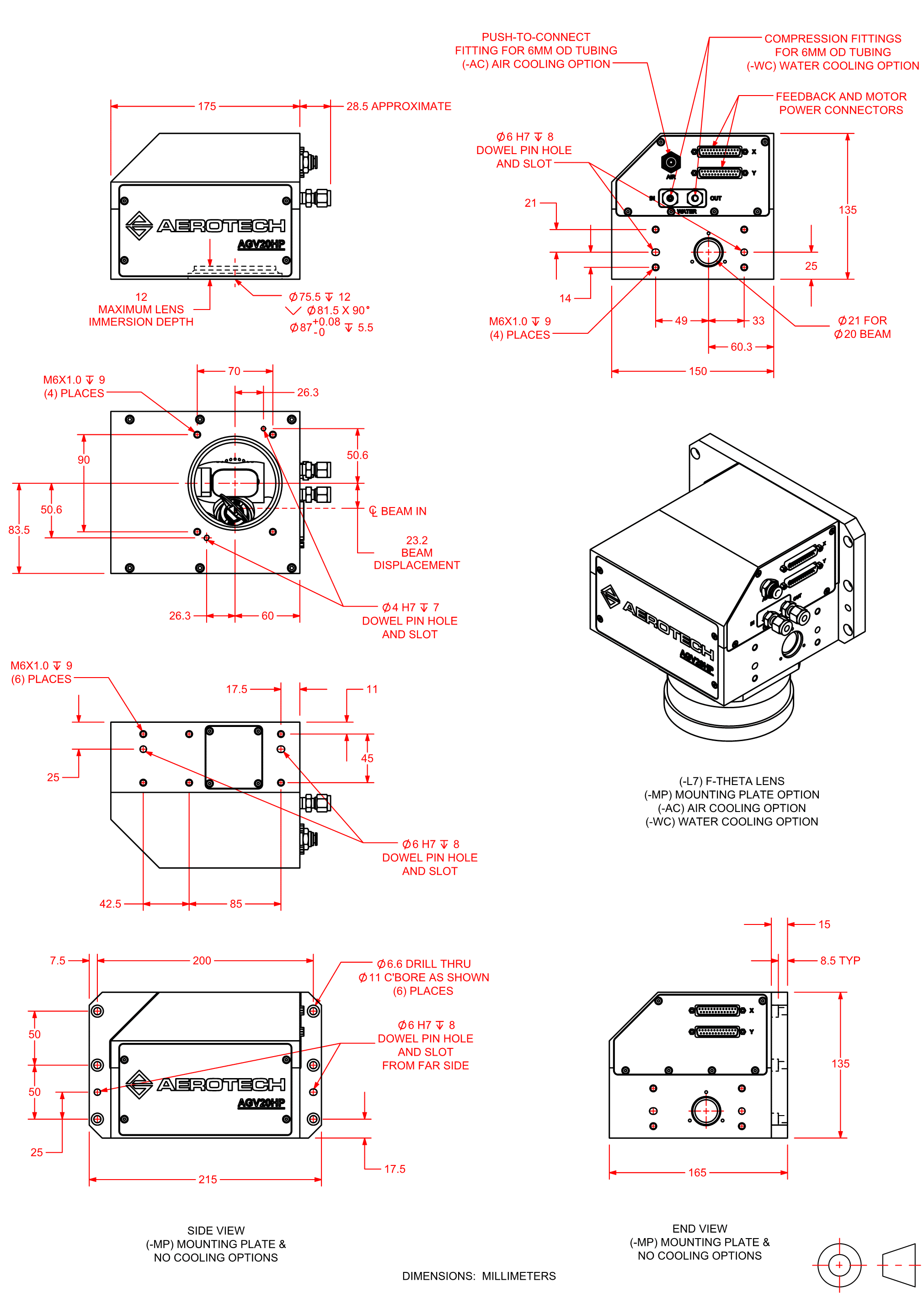

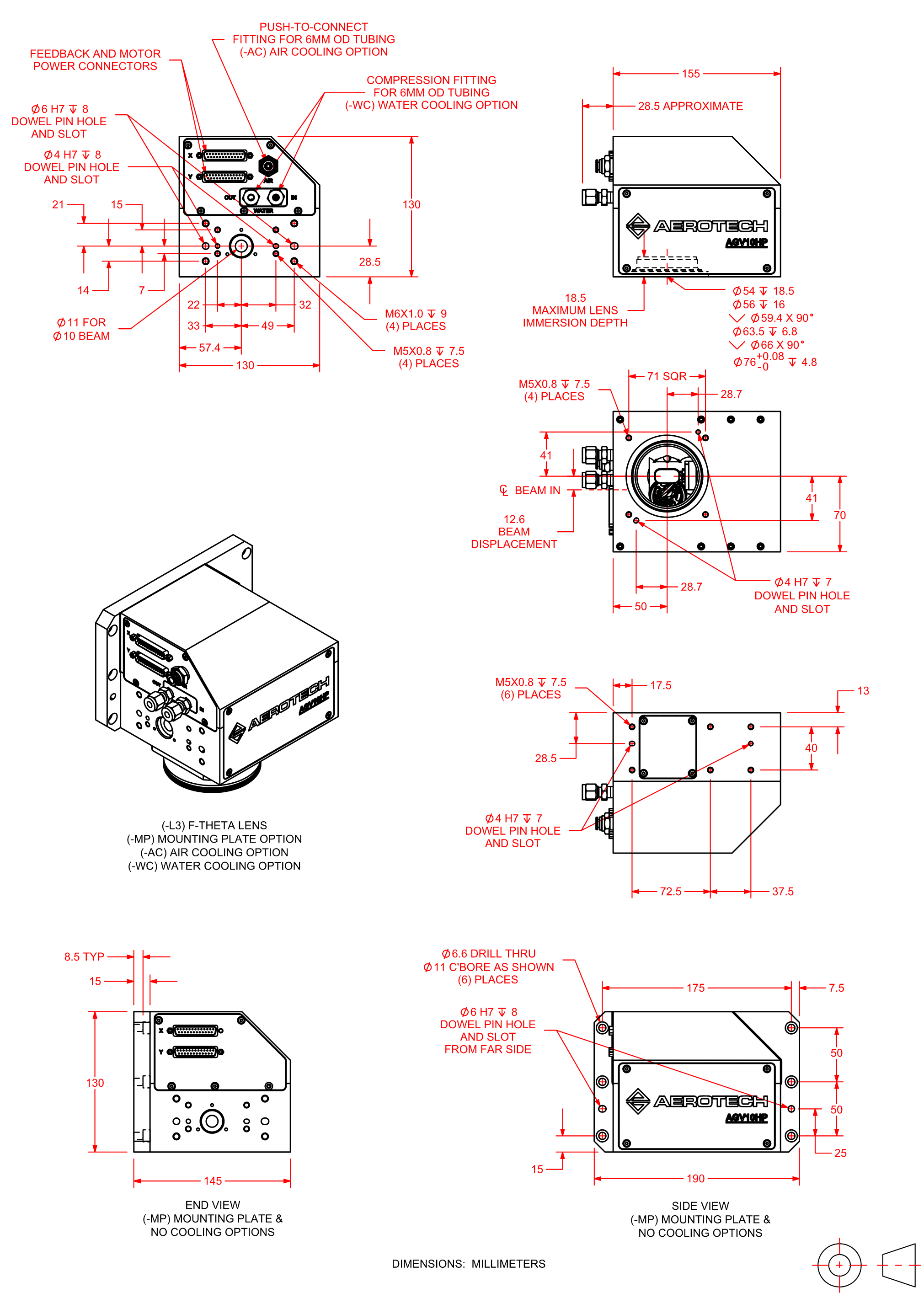

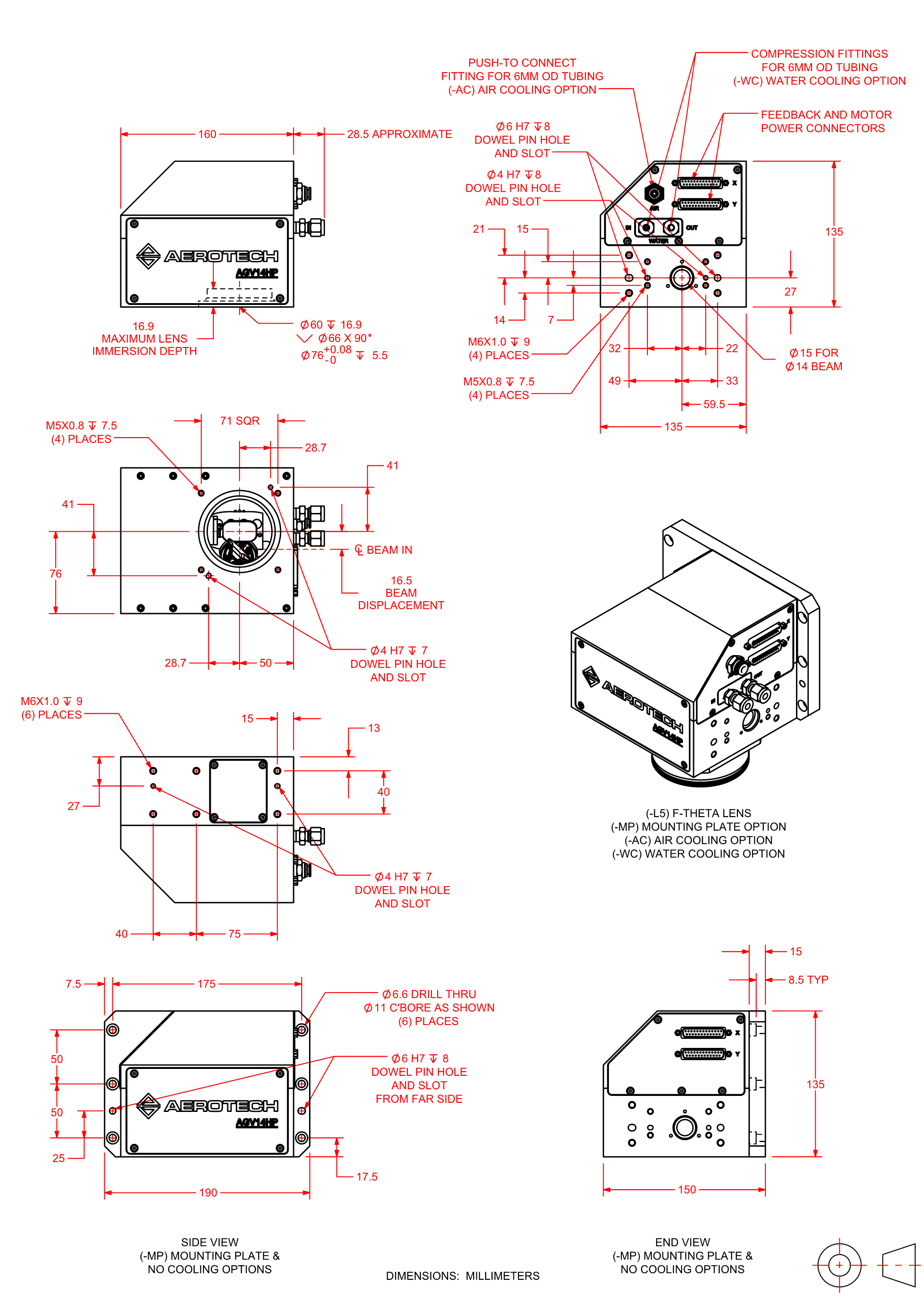

Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Design Features
- Attains single-digit, micron-level accuracy throughout the field of view
- Improves thermal stability significantly with optical feedback technology
- Delivers industry-best resolution of >24 bits when used with an Aerotech controller
- Includes wide range of apertures and focal lengths
- Offers many choices of mirror surface treatments for a variety of laser wavelengths
- Calibrate micron-level accuracy, count on ultimate stability
With the extremely low thermal gain drift performance of the position transducers, complex, high-density laser machining applications that take long periods of time to complete will maintain consistent micron-level feature placement accuracy over the lifetime of the process. Likewise, high-throughput applications will maintain consistent part-to-part quality without having to re-calibrate between parts. For the highest level of thermal stability, the AGV-HP(O) scanners can be equipped with water cooling to stabilize the operating temperature of the device under varying loads, changes in ambient temperature or beam clipping on the input aperture.
Real-Time Process Visibility
The location of the AGV-HP(O) mirrors can be captured and analyzed in real time. With direct access to the scanner positions, you won’t need to program delay parameters to compensate for lag and tracking errors in the servo system. The process can be optimized prior to marking the part, saving you time and reducing material waste. You can also control the state of the laser based on in-position and velocity criteria, further reducing programming complexity.
Advanced Programming Features
The AGV-HP(O) uses all the advanced motion and position synchronized output (PSO) capabilities that Aerotech has developed for traditional servo-based laser processing applications. Contouring functions, such as acceleration limiting, can be used to automatically reduce speeds in tight corners or small radii to minimize overshoot. The laser can be triggered based on the position feedback of the mirrors with PSO to ensure consistent spot overlap as the scanner changes speed. Aerotech’s Infinite Field of View (IFOV) function seamlessly combines servo and scanner motion to extend the marking capability of the scanner across the entire travel of the servo stages, eliminating stitching errors that can occur in a more traditional move-expose-repeat process.
Design Choices
The AGV-HP(O) family is available with 10, 14, 20 and 30 mm input apertures and can be equipped with an F-Theta or telecentric lens directly from Aerotech. Users can also acquire the focusing optic directly from a trusted supplier, with Aerotech supplying a spacer ring to ensure that back reflections through the optic do not damage the scanner mirrors. Mirror coatings for a wide range of UV, visible, IR and CO2 wavelengths are supported. Coatings optimized for ultra-fast lasers are also available.
Ordering Information
AGV-HP(O) Series High-Accuracy Laser Scan Head
Option | Description |
AGV10HP(O) | 2-axis galvanometer scanner with 10 mm diameter beam aperture and integral high-precision feedback |
AGV14HP(O) | 2-axis galvanometer scanner with 14 mm diameter beam aperture and integral high-precision feedback |
AGV20HP(O) | 2-axis galvanometer scanner with 20 mm diameter beam aperture and integral high-precision feedback |
AGV30HP(O) | 2-axis galvanometer scanner with 30 mm diameter beam aperture and integral high-precision feedback |
Housing Type (Required)
Option | Description |
- | Closed scanner housing (AGVxxHP) |
O | Open scanner housing (AGVxxHPO) |
- -BE2 is not available with AGV30HP or AGV30HPO.
Beam Entry (Required)
Option | Description |
-BE1 | Right-side laser beam entry (standard) |
-BE2 | Left-side laser beam entry |
Wavelength of Mirror Coating (Required)
Option | Description |
-W001 | 10.6 µm |
-W002 | Durable-Silver (450 nm - 10.6 µm) |
-W003 | 1552 nm |
-W004 | 1064 nm |
-W005 | 1030 nm |
-W006 | 532 nm |
-W007 | 515 nm |
-W008 | 355 nm |
-W009 | 343 nm |
-W012 | 9.3 µm |
- Custom coatings available. Contact factory for details.
F-Theta Lenses Available (Optional)(1, 2)
Option | Description |
-Lxx | See Table 1: F-Theta Lenses Available |
Mounting Plate (Optional)
Option | Description |
-MP | Mounting plate |
- -MP option is only available with closed scanner housing (AGVxxHP) models.
Air Cooling (Optional)
Option | Description |
-AC | Air cooling |
Water Cooling (Optional)
Option | Description |
-WC | Water cooling |
Performance Grade (Required)
Option | Description |
-PL0 | Standard performance grade |
-PL9 | Ultra performance grade |
Integration (Required)
Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.
Option | Description |
-TAS | Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration. |
-TAC | Integration - Test as components Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system. |
Lens Mounting Adapters (to be ordered as separate line item)
Option | Description |
LM10HP-XXX | Lens mount adapter for AGV10HP(O); standard versions support the lens configurations offered by Aerotech; custom versions available on request |
LM14HP-XXX | Lens mount adapter for AGV14HP(O); standard versions support the lens configurations offered by Aerotech; custom versions available on request |
LM20HP-XXX | Lens mount adapter for AGV20HP(O); standard versions support the lens configurations offered by Aerotech; custom versions available on request |
LM30HP-XXX | Lens mount adapter for AGV30HP(O); standard versions support the lens configurations offered by Aerotech; custom versions available on request |
Table 1: F-Theta Lenses Available (Optional)(1, 2)
AGV10HP(O) | AGV14HP(O) | AGV20HP(O) | AGV30HP(O) | |
-L1 | 1552-100-T 55 mm sq. FOV |
- | 10600-100-T 35 mm sq. FOV |
35 mm sq. FOV 10600-255 100 mm sq. FOV |
-L2 | 1552-163-T 90 mm sq. FOV |
- | 10600-160 75 mm sq. FOV |
1064-200 65 mm sq. FOV_4 |
-L3 | 1064-100 65 mm sq. FOV(4) |
1552-100-T 45 mm sq. FOV |
10600-255 160 mm sq. FOV |
1064-255 150 mm sq. FOV(4) |
-L4 | 1064-255 150 mm sq. FOV(4) |
1552-163-T 90 mm sq. FOV |
1064-100-T 40 mm sq. FOV |
1064-500 230 mm sq. FOV(4) |
-L5 | 1064-160 105 mm sq. FOV(4) |
1064-100 35 mm sq. FOV(4) |
1064-163 70 mm sq. FOV(4) |
- |
-L6 | 1064-163-T 90 mm sq. FOV |
1064-100-T 60 mm sq. FOV(4) |
1064-163-T 70 mm sq. FOV |
- |
-L7 | 1030-100-T 40 mm sq. FOV |
1064-160 80 mm sq. FOV(4) |
1064-255 150 mm sq. FOV(4) |
- |
-L8 | 1030-163-T 90 mm sq. FOV |
1064-163-T 85 mm sq. FOV |
532-255 145 mm sq. FOV(4) |
- |
-L9 | 532-100 55 mm sq. FOV(4) |
1064-170 110 mm sq. FOV(4) |
- | - |
-L10 | 532-100-T 60 mm sq. FOV(4) |
1030-100-T 30 mm sq. FOV |
- | - |
-L11 | 532-160 105 mm sq. FOV(4) |
1030-163-T 90 mm sq. FOV |
- | - |
-L12 | 532-163-T 75 mm sq. FOV |
532-100-T 60 mm sq. FOV(4) |
- | - |
-L13 | 515-100-T 40 mm sq. FOV |
532-160 105 mm sq. FOV(4) |
- | - |
-L14 | 515-163-T 40 mm sq. FOV |
532-163-T 75 mm sq. FOV |
- | - |
-L15 | 355-53-T 15 mm sq. FOV |
532-170 100 mm sq. FOV(4) |
- | - |
-L16 | 355-100-T 50 mm sq. FOV |
515-100-T 40 mm sq. FOV |
- | - |
-L17 | 355-160 90 mm sq. FOV |
515-163-T 40 mm sq. FOV |
- | - |
-L18 | 355-163-T 80 mm sq. FOV |
355-53-T 5 mm sq. FOV |
- | - |
-L19 | 355-255 140 mm sq. FOV |
355-163-T 80 mm sq. FOV |
- | - |
-L20 | - | 355-255 140 mm sq. FOV |
- | - |
-L21 | - | 343-53-T 5 mm sq. FOV |
- | - |
-L22 | - | 343-163-T 70 mm sq. FOV |
- | - |
-L23 | - | 343-255 115 mm sq. FOV |
- | - |
- Lenses specified as XXX-YYY(-T), where “XXX” represents the wavelength in nanometers, “YYY” represents the focal length in millimeters, and the presence of “-T” indicates a telecentric design.
- Input beam diameter is assumed to be equal to scan head entrance aperture at 1/e^2 Gaussian profile.
- Reported field-of-view (FOV) sizes are approximate and may be subject to minor variation as a function of the application’s laser and optical paramterers. Contact factory for details.
- Certain F-theta lenses are not recommended for use with short-pulse lasers (picosecond and femtosecond pulse durations). Contact factory for alternate lens options that are compatible with short-pulse lasers.
- Custom lenses available. Contact factory for details.
