Description

Design Features

  • High-quality isolation transformer
  • Fully compatible with Aerotech's drive systems that require separate transformers
  • Conservatively rated, open-frame units with mounting brackets and screw terminals or flying leads for easy installation

TV Series Transformers Specifications

Model
Units
TV1.5
TV2.5
TV5
TV0.3-28
TV0.3-28-56-ST
TV0.3-56
TV0.5-28-56
Type Type Isolation Isolation Isolation Isolation Isolation Isolation Isolation
Rating kVA 1.5 2.5 5 0.3 0.3 0.3 0.5
Inputs VAC 104, 115, 208, 230 104, 115, 208, 230 104, 115, 208, 230 100, 115, 200, 230 100, 115, 200, 230 100, 115, 200, 230 100, 115, 200, 230
Terminals Screw-type pressure lugs Screw-type pressure lugs Screw-type pressure lugs Flying leads Screw Type Screw Type Flying Leads Screw Type Flying Leads
Weight kg (lb) 17 (38) 23 (51) 35 (78) 3.6 (8) 4.7 (10.4) 3.6 (8) 4.9 (10.7)
Outputs VAC 28, 43, 56, 70, 115 28, 43, 56, 70, 115 28, 43, 56, 70, 115 28 28, 56 56 28, 56

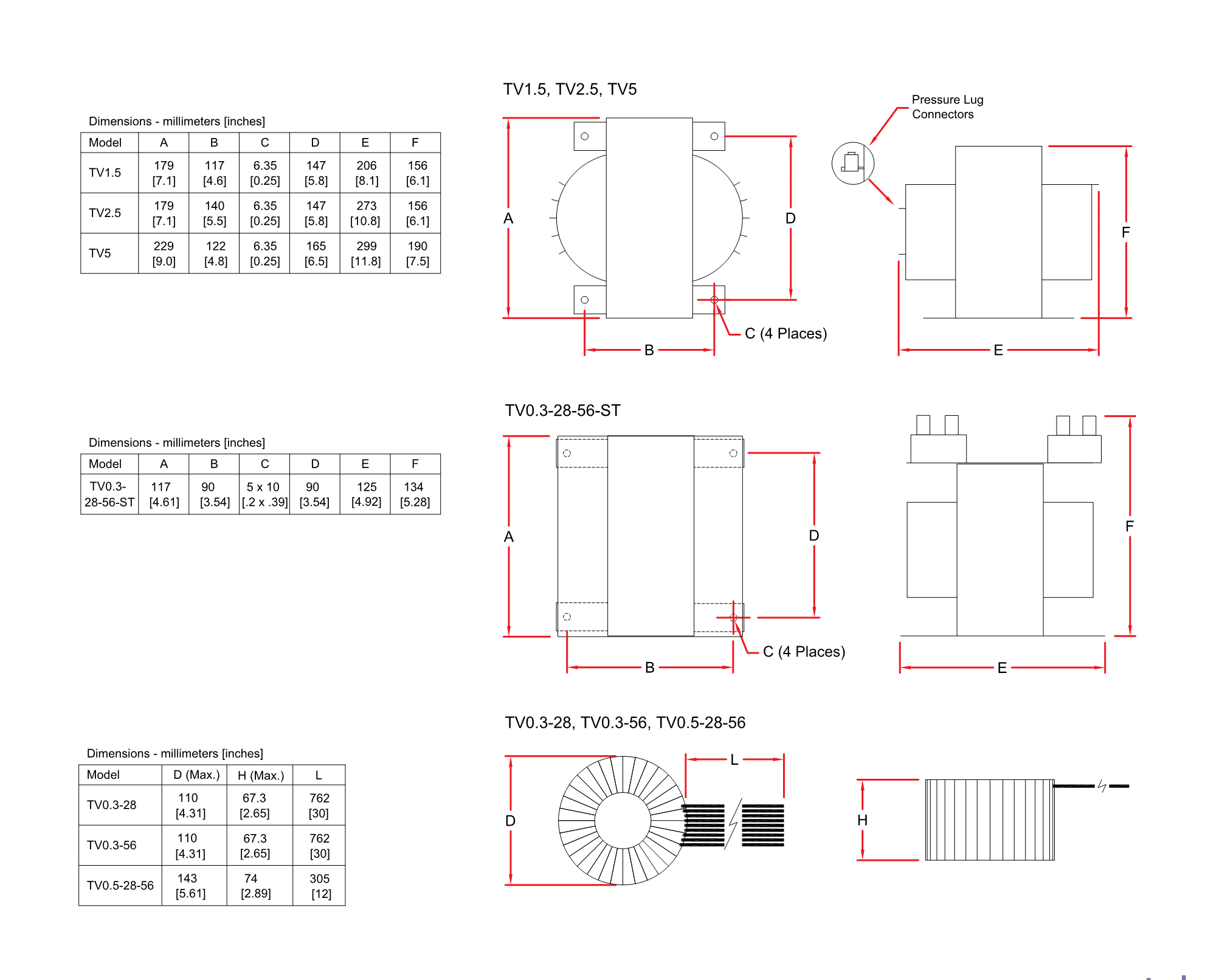

Dimensions

TV Series Transformers
