Description

Design Features

  • Features large, clear aperture up to 200 mm for mounting optics, cameras, process equipment, cabling & more
  • Configurable with direct encoder option for enhanced positioning precision
  • Accommodates payloads up to 425kg
  • Offers continuous 360° rotation with configurable travel limits available
  • Integrates easily in multi-axis configurations

Key Applications

AGR stages are ideal for a variety of precision industrial and laboratory applications, including:

  • Laser processing
  • Measurement & inspection
  • Sample positioning
  • Nondestructive testing
  • Pointing, scanning & tracking
  • Integration into gimbal systems

Construction Features

The presence of a large, clear aperture in the stage allows the AGR series to address applications requiring a through-hole or accommodations to mount an optic, including articulation of beam polarizing lenses, through-holes for cabling and/or air lines, or vision/camera/inspection applications.

The AGR stage base is fabricated from an aluminum alloy that offers significant weight savings in multi-axis arrangements and other weight critical applications, while providing high structural stiffness and long-term stability.

Each stage is designed with two high-precision angular contact bearings with optimal spacing to provide excellent error motions coupled with high load capacities in a small, compact package.

Flexible Options

Options include flexible motor selections as well as a direct encoder mounted to the stage shaft for outstanding repeatability and to virtually eliminate hysteresis and backlash. Vacuum-compatible versions (for use in pressures as low as 10-6 torr) are also available.

Motor and Drives

Standard AGR stage configurations feature Aerotech’s brushless servomotors. However, all AGR stages can be outfitted with stepper or DC brush motors. A full range of matching drives and controls are available for a complete single-source solution.

Dimensions

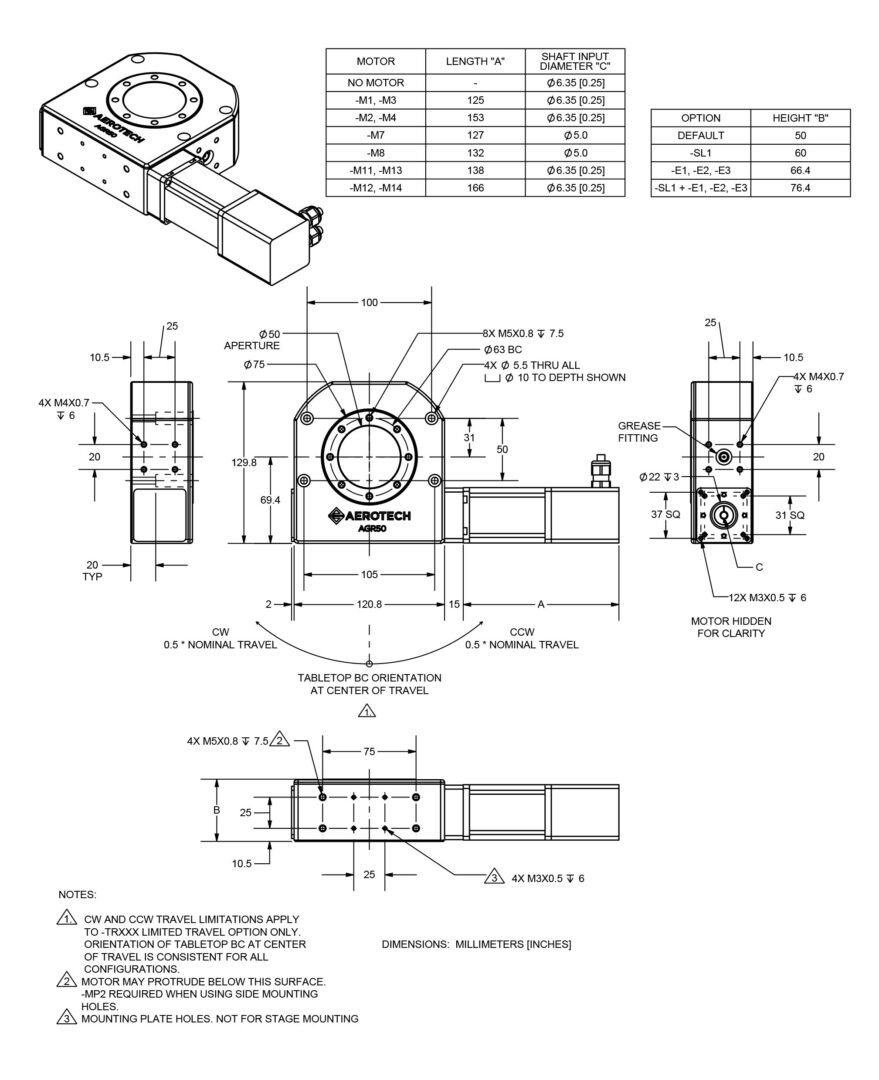

AGR50



AGR50 Accessories

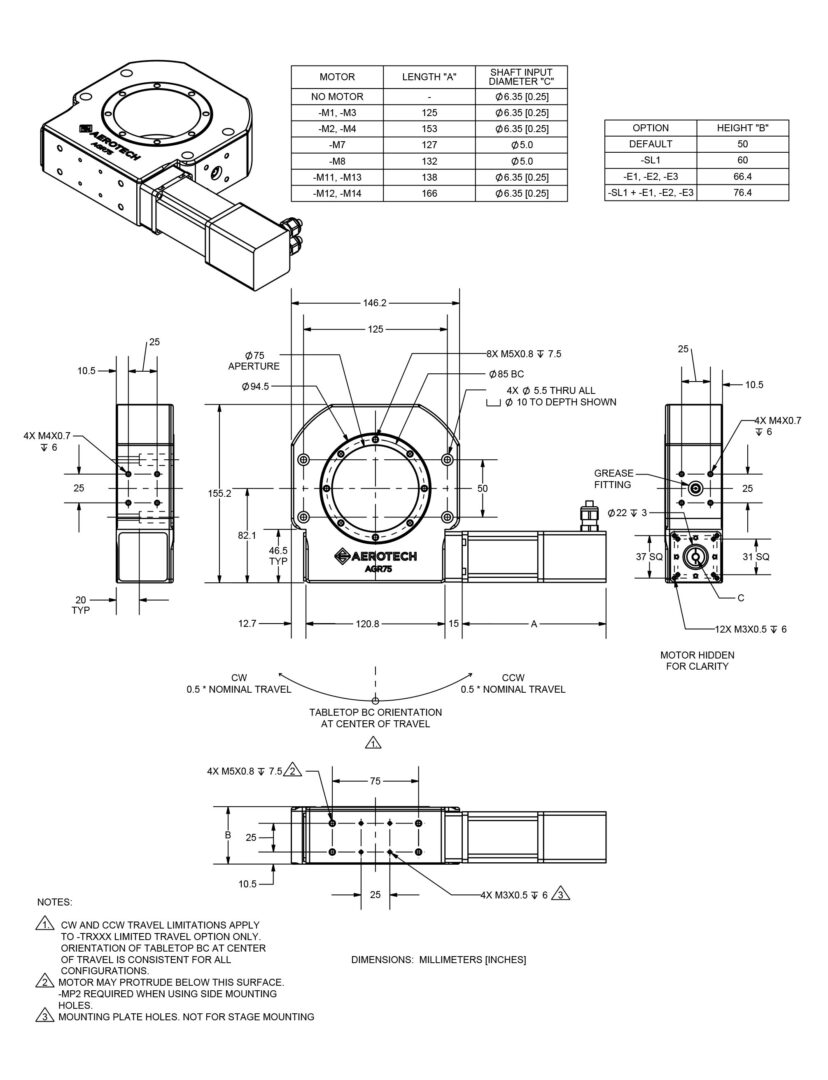

AGR75



AGR75 Accessories

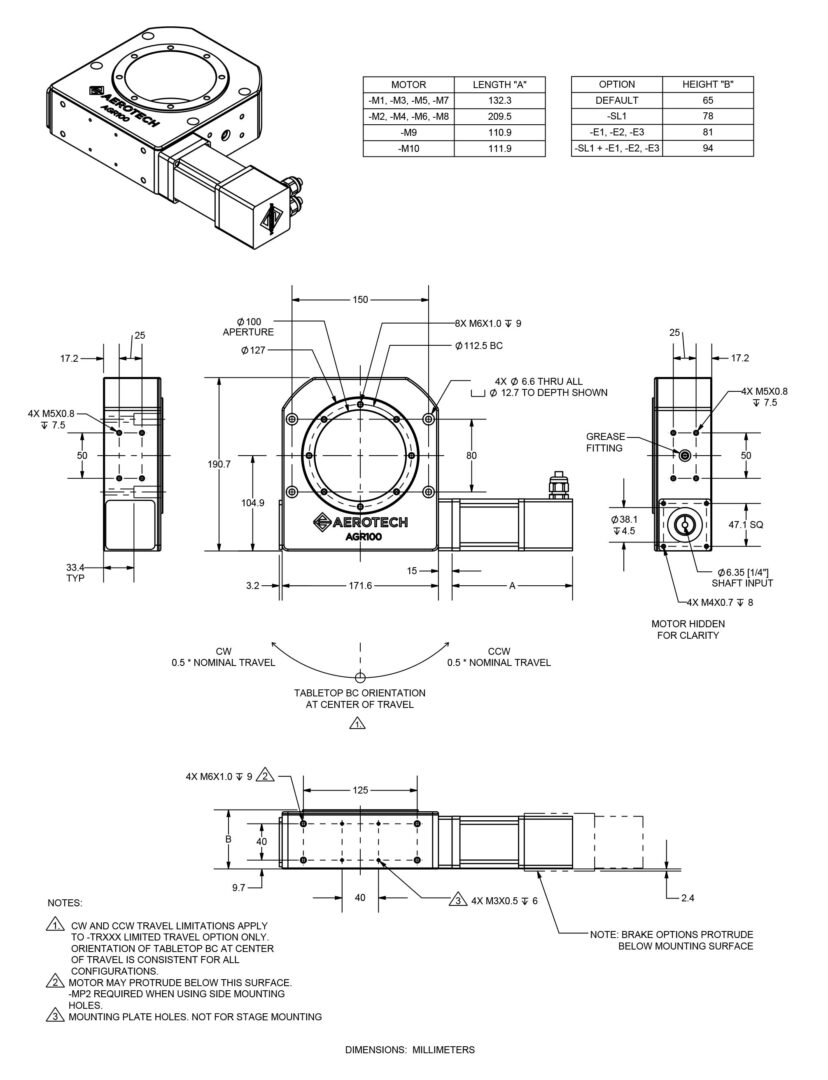

AGR100



AGR100 Accessories

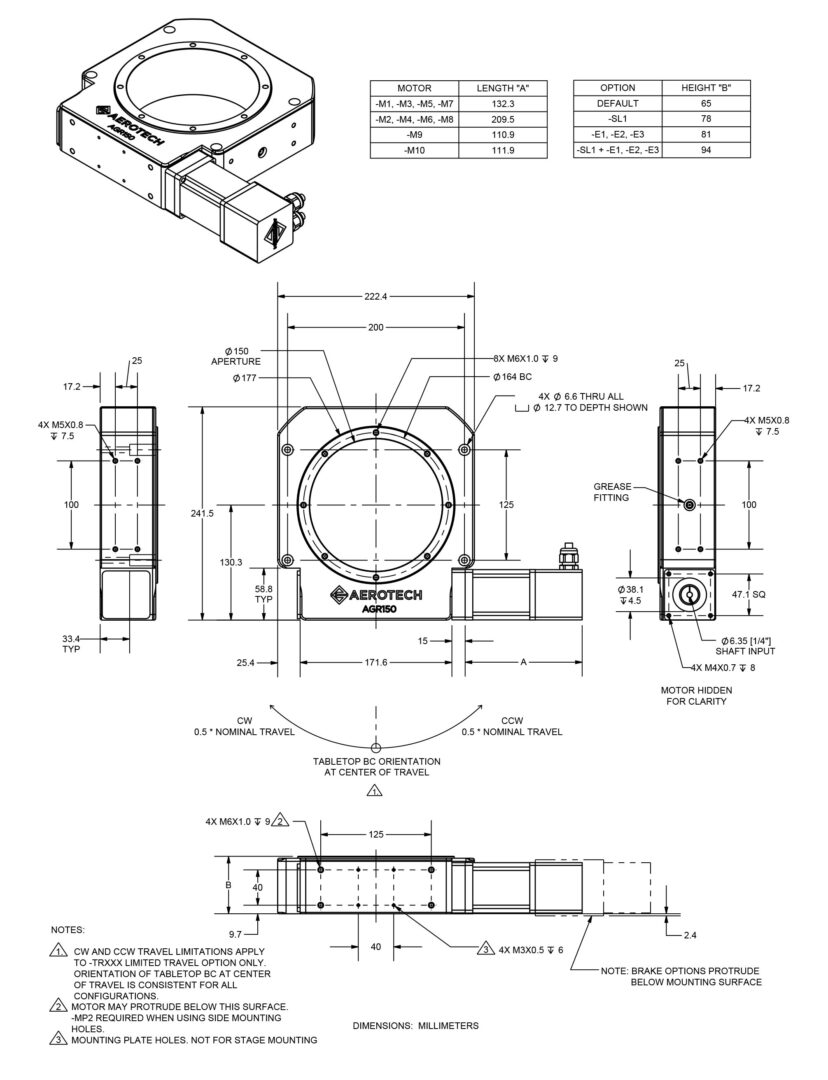

AGR150



AGR150 Accessories

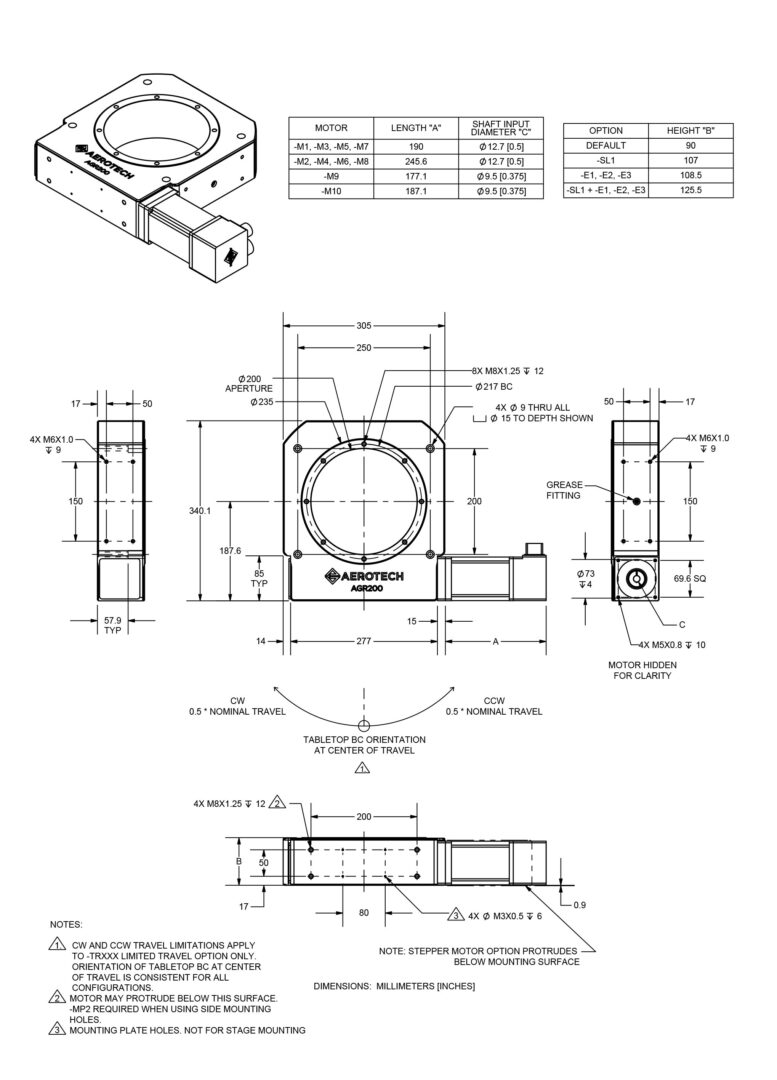

AGR200



AGR200 Accessories



AGR Motor Orientation



Ordering Information

AGR Series Gear-Driven Rotray Stages

Model (Required)

Option Description
AGR50 Gear-driven rotary stage, 50 mm diameter clear aperture
AGR75 Gear-driven rotary stage, 75 mm diameter clear aperture
AGR100 Gear-driven rotary stage, 100 mm diameter clear aperture
AGR150 Gear-driven rotary stage, 150 mm diameter clear aperture
AGR200 Gear-driven rotary stage, 200 mm diameter clear aperture

Motor (Optional)

Option Description
-M5 BM75 brushless servomotor and 2500-line TTL encoder (AGR100, AGR150)
BM250 brushless servomotor and 2500-line TTL encoder (AGR200)
-M6 BM75 brushless servomotor and 2500-line TTL encoder with brake (AGR100, AGR150)
BM250 brushless servomotor and 2500-line TTL encoder with brake (AGR200)
-M7 BM75 brushless servomotor and 1000-line 1 Vpp encoder (AGR100, AGR150)
BM250 brushless servomotor and 1000-line 1 Vpp encoder (AGR200)
-M8 BM75 brushless servomotor and 1000-line 1 Vpp encoder with brake (AGR100, AGR150)
BM250 brushless servomotor and 1000-line 1 Vpp encoder with brake (AGR200)
-M11 BM24 brushless servomotor and 2500-line TTL encoder (AGR50, AGR75)
-M12 BM24 brushless servomotor and 2500-line TTL encoder with brake (AGR50, AGR75)
-M13 BM24 brushless servomotor and 1000-line 1 Vpp encoder (AGR50, AGR75)
-M14 BM24 brushless servomotor and 1000-line 1 Vpp encoder with brake (AGR50, AGR75)
Note:
  1. Other motor options are available upon request. Contact Aerotech for more information.

Motor Location (Required)

Option Description
-ML1 Motor located on right side of stage housing, standard (see diagram)
Note:
  1. Other motor location and orientation options are available upon request. Contact Aerotech for more information.

Motor Orientation (Optional)

Option Description
-2 Motor orientation 2
-3 Motor orientation 3, standard
-4 Motor orientation 4
-5 Motor orientation 5
Note:
  1. See diagram for details.

Travel (Required)

Option Description
Continuous travel (standard)
-TR015 Limited travel, ±7.5 degrees
-TR030 Limited travel, ±15 degrees
-TR045 Limited travel, ±22.5degrees
-TR060 Limited travel, ±30 degrees
-TR075 Limited travel, ±37.5 degrees
-TR090 Limited travel, ±45 degrees
-TR105 Limited travel, ±52.5 degrees
-TR120 Limited travel, ±60 degrees
-TR135 Limited travel, ±67.5 degrees
-TR150 Limited travel, ±75 degrees
-TR165 Limited travel, ±82.5 degrees
-TR180 Limited travel, ±90 degrees
-TR195 Limited travel, ±97.5 degrees
-TR210 Limited travel, ±105 degrees
-TR225 Limited travel, ±112.5 degrees
-TR240 Limited travel, ±120 degrees
-TR255 Limited travel, ±127.5 degrees
-TR270 Limited travel, ±135 degrees
Note:
  1. -TRxxx limited travel options contain an extra 2 degrees of overtravel between the nominal travel and the electrical limit on each side (Ex: -TR270 contains ±135 degrees of nominal travel, with ±137 degrees of travel between electrical limits).

Limits (Required)

Option Description
-Ll1 Normally-closed end-of-travel limited switch with 9-pin connector
Note:
  1. Limits option is only available with limited-travel configurations. Other limit options are available upon request. Contact Aerotech for more information.

Direct Rotary Feedback (Optional)

Option Description
-E3 Direct, square-wave TTL, output encoder, x50 multiplier
Note:
  1. Other direct rotary feedback options are available upon request. Contact Aerotech for more information.

Tabletop (Optional)

Option Description
-TT1 Metric tabletop
Note:
  1. Other tabletop options are available upon request. Contact Aerotech for more information.

Mounting Plate (Optional)

Option Description
-MP1 Universal English/metric mounting plate
-MP2 Metric Spacer Plate, Side Mounting Option

Metrology (Required)

Option Description
-PL0 No metrology performance plots
-PL1 Metrology, uncalibrated with performance plots
-PL2 Metrology, calibrated (HALAR) with performance plots

Integration (Required)

Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.

Option Description
-TAS Integration - Test as system

Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration.
-TAC Integration - Test as components

Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system.
