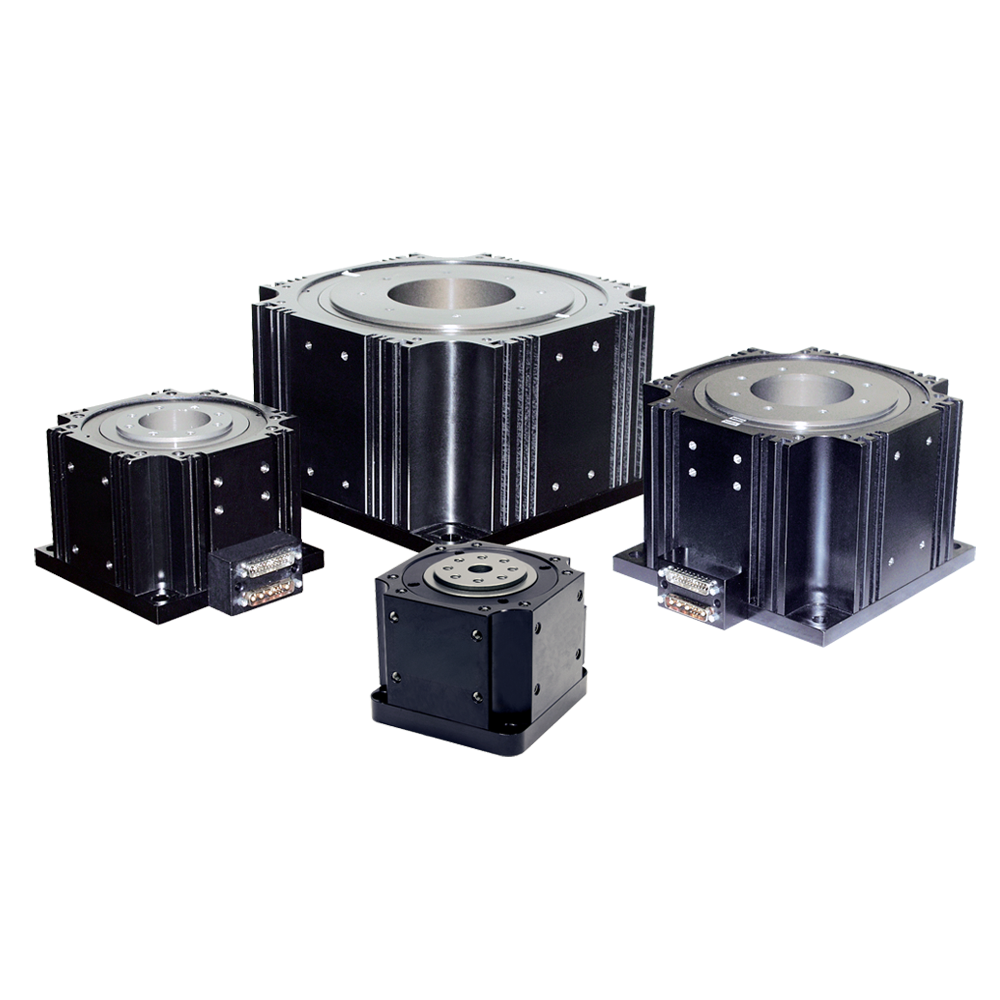

ADRT Mechanical-Bearing Direct-Drive Rotary Stage

With dual large-diameter bearings and slotless, brushless torque motors, our ADRT series easily delivers ultra-smooth, high-speed motion for applications that require very precise rotary motion plus high torque, speed and payload-carrying capacity. ADRT seamlessly integrates into multi-axis motion systems, subsystems and machines thanks to a range of features and options including continuous 360° travel, limited-travel and failsafe holding brakes to mitigate against crash conditions and provide additional payload security.

Have questions? Contact an Aerotech expert.
Request a Quote
Description

Design Features

  • Available in 9 models to meet any load capacity, torque, and dimensional requirements
  • Delivers high torque output and smooth, stable motion with direct-drive, cog-free servo motor
  • Achieves excellent accuracy and repeatability with high-resolution position feedback
  • Supports high payloads and provides exceptional stiffness
  • Offers integration and process flexibility with large-diameter clear aperture

The World’s Most Versatile, High-Precision Rotary Stages

Aerotech’s ADRT series of mechanical-bearing, direct-drive rotary stages is an excellent choice for applications that require fine precision, smooth motion, rapid accelerations, high speeds, large payloads, or any combination of these.

Dual, large-diameter bearings provide considerable payload capacity and moment stiffness. Combined with a slotless, brushless torque motor, ultra-smooth, high-speed motion is easily achieved. A selection of high-resolution position feedback devices allows for highly accurate and repeatable positioning performance.

The variety of features and options available with the ADRT series make it an excellent choice for seamless integration into multi-axis motion systems, subsystems, and machines. In addition to continuous 360° travel, ADRT can be equipped with limited-travel options and fail-safe holding brakes to mitigate against crash conditions and provide additional payload security. Mounting interfaces on all sides of the ADRT enable convenient payload mounting, counterbalancing, and integration into high-precision gimbals and azimuth-elevation assemblies.

Key Applications

ADRT stages are ideal for applications that require very precise rotary motion, combined with high torque, speed, and payload-carrying capacity, including:

  • Testing of sensors, MEMS, and other devices
  • Electro-optics testing and calibration
  • Indexing and alignment
  • Laser micromachining
  • Angular tracking
  • High-precision inspection of semiconductors, medical devices, and other components

Stable, Flexible Configurations Master Heavy Payloads

Dual large-diameter bearings and a precision-turned shaft help to minimize axis error motions while maximizing stiffness and repeatability. You’ll never have to compromise on performance when handling large payloads.

Further enhancing stability, the motor and rotary encoder are directly coupled to a common shaft. There are no position errors triggered by hysteresis, windup or backlash because ADRT does not have any gear trains or mechanical couplings.

All ADRT configurations deliver outstanding accuracy, smoothness and runout performance. Additionally, slip rings and rotary unions can be added upon request to ease integration of custom tooling. An optional holding brake is available to limit movement of the stage during large impulse loads or when power is removed from the motor.

T-slots allow ADRT to be mounted horizontally or attach to application-specific fixtures.

Specifications

ADRT Specifications

ADRT100-85ADRT100-135ADRT150-115ADRT150-135ADRT150-180ADRT200-155ADRT200-185ADRT260-160ADRT260-180
Maximum Torque (Continuous)0.48 N·m1.6 N·m2.85 N·m5.06 N·m9.29 N·m11.12 N·m15.93 N·m19.71 N·m29.09 N·m
Bus Voltage(1)Up to 340 VDC
Accuracy Uncalibrated(2,3)60 arc sec
Accuracy Calibrated(2,3)5 arc sec
Repeatability(3)3 arc sec
Axial Error Motion5 µm
Radial Error Motion(4)5 µm
Tilt Error Motion10 arc sec
Aperture13 mm50 mm75 mm100 mm
Radial Load(5)10 kg25 kg80 kg110 kg
Axial Load15 kg30 kg140 kg170 kg
Rated Speed1500 rpm600 rpm375 rpm
Inertia0.000243 kg·m20.000483 kg·m20.002795 kg·m20.005108 kg·m20.006671 kg·m20.018899 kg·m20.025062 kg·m20.065934 kg·m20.084950 kg·m2
Mass2.0 kg3.6 kg6.1 kg8.5 kg11.9 kg16.2 kg20.3 kg27.3 kg33 kg
Finish-TableHardcoat
Finish-StageBlack Anodize
Notes:
  1. Bus voltage for ADRT100 with -25D connector is limited to 160 V.
  2. Calibrated accuracy requires -PL2 option and Aerotech controls.
  3. Repeatability and accuracy are dependent on encoder resolution. To achieve the listed specifications, encoder resolution must be 0.36 arc sec or less.
  4. Specifications are for single-axis systems. Performance of multi-axis systems is payload and workpoint dependent. Consult factory for multi-axis or non-standard applications

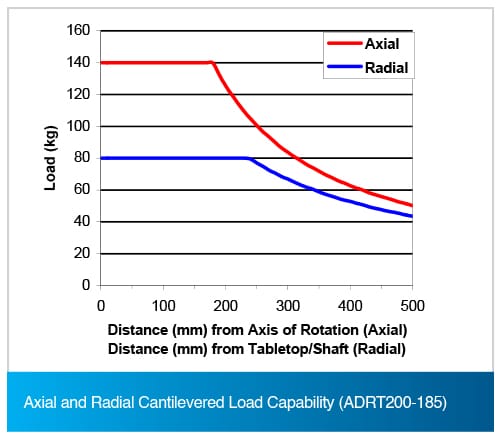

  5. Moment load based on 5 year continuous rotation at 250 rpm with maximum axial load applied. Larger moment loads possible for low speed and/or low duty cycle applications. Consult Aerotech for additional information.
Dimensions
ADRT100
ADRT100 Rotary Stage Dimensions
ADRT150
ADRT150 Rotary Stage Dimensions
ADRT200
ADRT200 Rotary Stage Dimensions

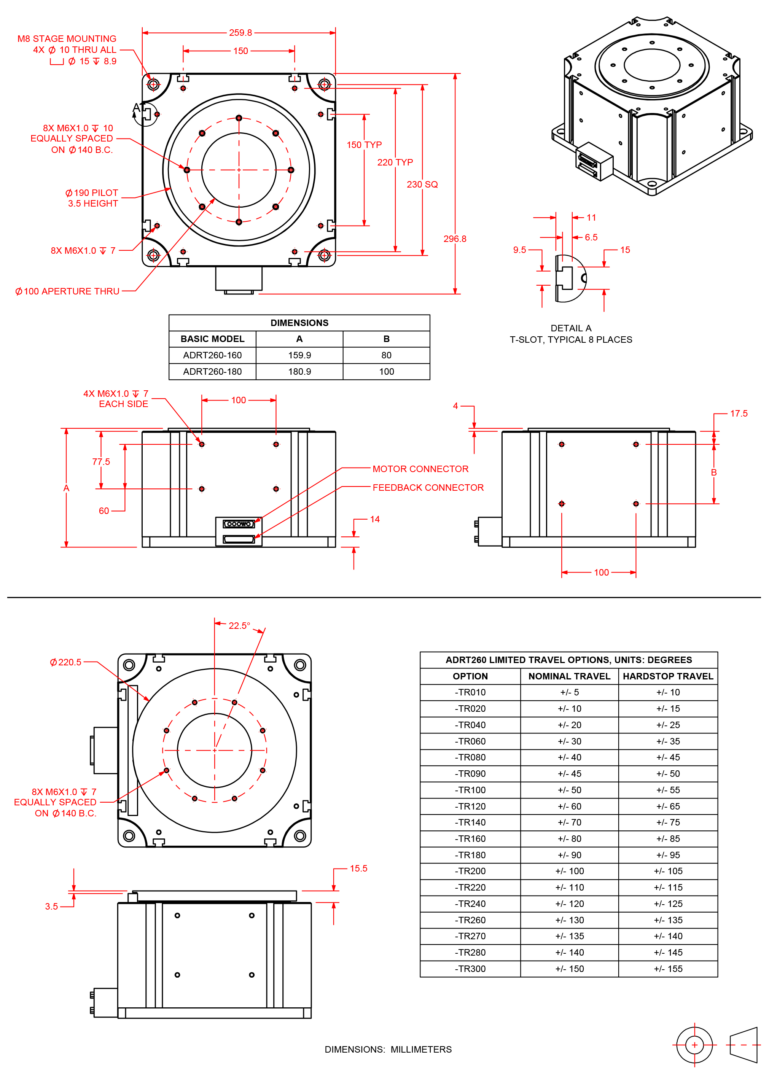

ADRT260
ADRT260 Rotary Stage Dimensions
Ordering Info
ADRT Mechanical-Bearing Direct-Drive Rotary Stage
OptionDescription
ADRT100ADRT100 mechanical-bearing direct-drive rotary stage
ADRT150ADRT150 mechanical-bearing direct-drive rotary stage
ADRT200ADRT200 mechanical-bearing direct-drive rotary stage
ADRT260ADRT260 mechanical-bearing direct-drive rotary stage
Stage Height (Required)
OptionDescription
-8585 mm stage height - Only available for ADRT100
-115115 mm stage height - available for ADRT150
-135135 mm stage height - Only available for ADRT100 and ADRT150
-155155 mm stage height -Only available for ADRT200
-160160 mm stage height - Only available for ADRT260
-180180 mm stage height - Only available for ADRT150 and ADRT260
-185185 mm stage height - Only available for ADRT200
Motor (Required)
OptionDescription
-M1Low current, -A winding
Notes:
  1. Only available for ADRT260.
Feedback (Required)
OptionDescription
-E6Incremental encoder, 1 Vpp
-E7Incremental encoder, digital RS422, electrical resolution 6.48 arc sec (ADRT100), 4.48 arc sec (ADRT150), or 2.91 arc sec (ADRT200, ADRT260)
-E8Incremental encoder, digital RS422, electrical resolution 3.24 arc sec (ADRT100), 2.24 arc sec (ADRT150), or 1.45 arc sec (ADRT200, ADRT260)
-E9Incremental encoder, digital RS422, electrical resolution 1.62 arc sec (ADRT100), 1.12 arc sec (ADRT150), or 0.73 arc sec (ADRT200, ADRT260)
-E10Incremental encoder, digital RS422, electrical resolution 1.30 arc sec (ADRT100), 0.90 arc sec (ADRT150), or 0.58 arc sec (ADRT200, ADRT260)
Connector (Required)
OptionDescription
-CN14-pin HPD motor and 25-pin D Fbk connectors
-CN225-pin D motor and 25-pin D Fbk connectors
Notes:
  1. Only available for ADRT100.
Real Seal (Optional)
OptionDescription
-SLReal seal
Air Purge (Optional)
OptionDescription
-PRAir-Purge fitting
Notes:
  1. Only available for ADRT100.
Brake (Optional)
OptionDescription
-BKHolding brake
Notes:
  1. Only available for the ADRT150 and the ADRT200. Not available with limited travel option.
Limited Travel (Optional)
OptionDescription
-TR010Limited travel, +/- 5 degrees
-TR020Limited travel, +/- 10 degrees
-TR040Limited travel, +/- 20 degrees
-TR060Limited travel, +/- 30 degrees
-TR080Limited travel, +/- 40 degrees
-TR090Limited travel, +/- 45 degrees
-TR100Limited travel, +/- 50 degrees
-TR120Limited travel, +/- 60 degrees
-TR140Limited travel, +/- 70 degrees
-TR160Limited travel, +/- 80 degrees
-TR180Limited travel, +/- 90 degrees
-TR200Limited travel, +/- 100 degrees
-TR220Limited travel, +/- 110 degrees
-TR240Limited travel, +/- 120 degrees
-TR260Limited travel, +/- 130 degrees
-TR270Limited travel, +/- 135 degrees - Only available on ADRT200 and ADRT260
-TR280Limited travel, +/- 140 degrees - Only available on ADRT200 and ADRT260
-TR300Limited travel, +/- 150 degrees - Only available on ADRT200 and ADRT260
Metrology (Required)
OptionDescription
-PL0No metrology performance plots
-PL1Metrology, uncalibrated with performance plots
-PL2Metrology, calibrated (HALAR) with performance plots
Integration (Required)
Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.
OptionDescription
-TASIntegration - Test as system
Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration.
-TACIntegration - Test as components
Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system.
