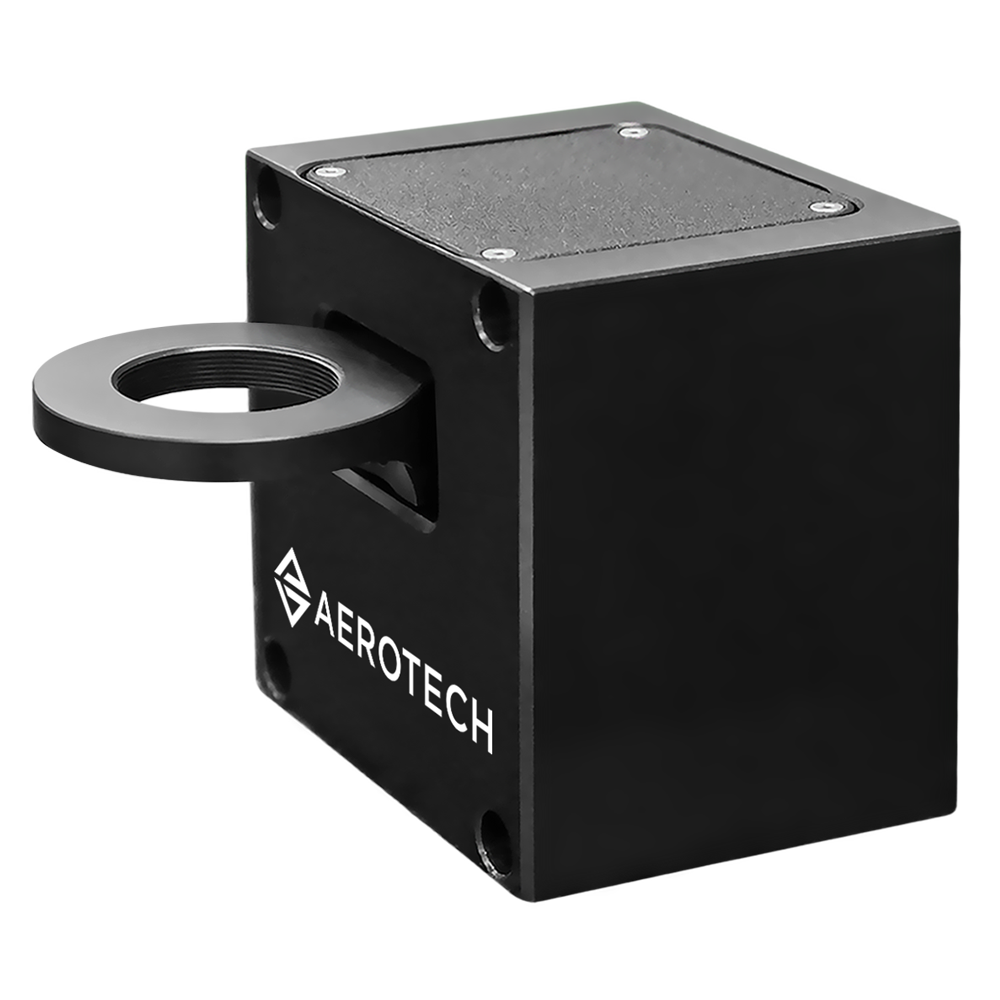

AVF75 Voice Coil Driven Objective Focuser
The AVF75 Voice Coil Driven Objective Focuser enables microscope objective and optics positioning at a large travel without sacrificing speed or nanometer-level performance. Designed to accommodate optical instruments and next-generation laser micromachining applications, the AVF75 is ideal for demanding optical positioning applications that require high precision, high throughput and long travels.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Key Features
- 400 um closed-loop travel

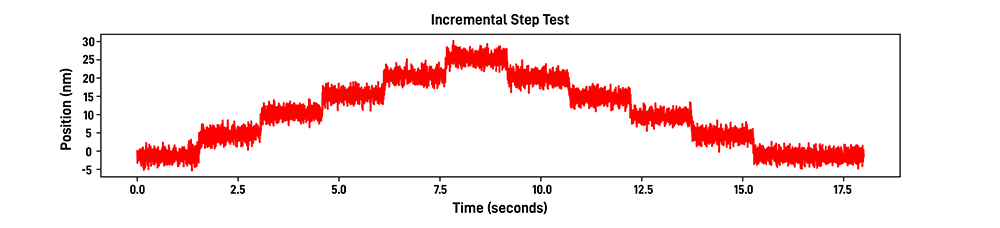

- Outstanding step-and-settle and scanning performance
- Designed for use with larger, high-NA objectives
- Superior positioning resolution and linearity
- Mounting flexibility 29 mm diameter clear aperture
Key Applications
The AVF75 is ideal for many applications, including:
- Microscopy
- Biotechnology
- Medical device manufacturing
- Laser processing
- Semiconductor / wafer inspection
Ordering Information
Travel (Required)
Option | Description |
-400 | 400 µm closed-loop travel |
Objective Adapter (Optional)
Option | Description |
-OA1 | W0.8 X 1/36” objective adapter |
-OA2 | M19 X 0.75 objective adapter |
-OA3 | M25 X 0.75 objective adapter |
-OA4 | M26 X 0.75 objective adapter |
-OA5 | M27 X 0.75 objective adapter |
-OA6 | M28 X 0.75 objective adapter |
-OA7 | M32 X 0.75 objective adapter |
-OA8 | M26 X 1/36” objective adapter |
Integration (Required)
Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.
Option | Description |
-TAS | Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration. |
-TAC | Integration - Test as components Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system. |
