Description

Design Features

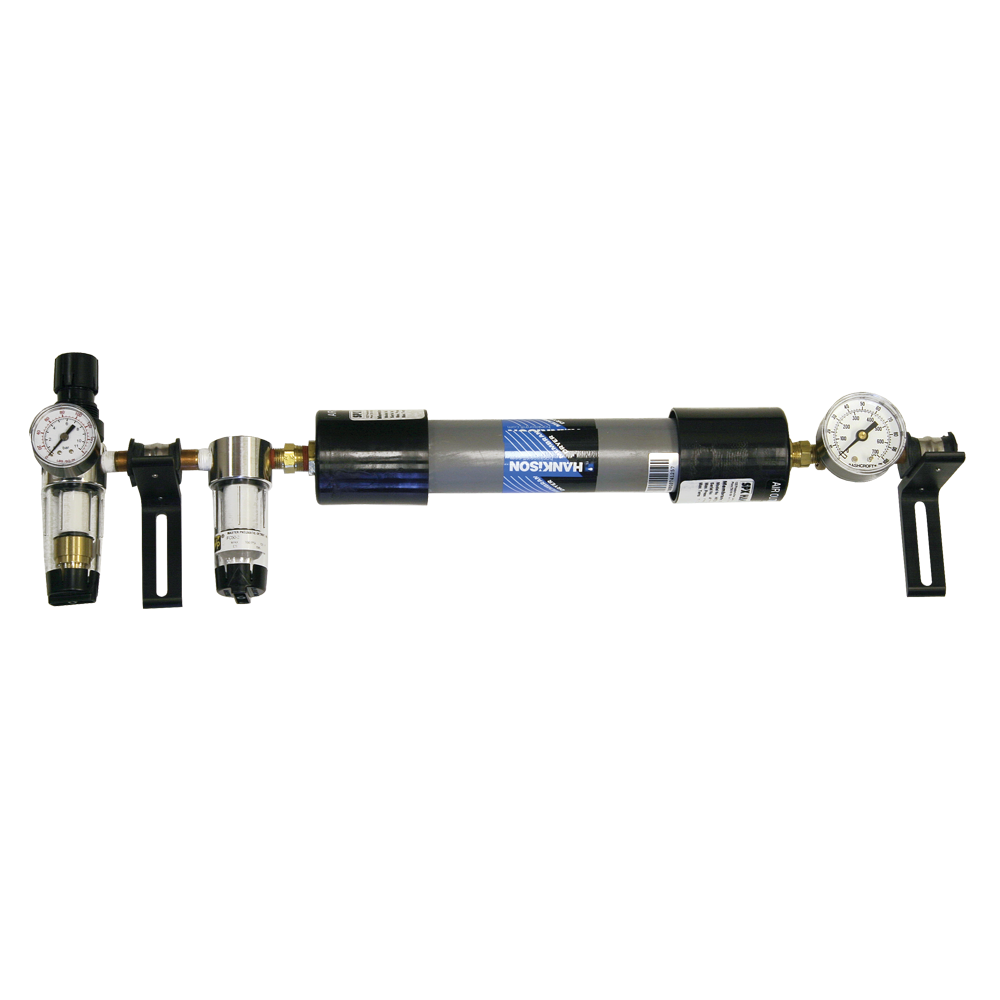

  • Low-maintenance filtration and solenoid kit used for control of Aerotech collet workholding stages
  • Compatible with the ASR, ACS, CCS, LaserTurn, and VascuLathe systems and all Aerotech amplifiers and controllers

Dimensions

CGF (Sheet 1 of 2)



CGF (Sheet 2 of 2)



Ordering Information

CGF Collet and Gripper Filtration Kit

Filtration Kit (Required)

Option Description
-FK1 Filter/regular kit
-FK2 Filter/regular/dryer kit
-FK3 Filter/regular/dryer/ chuck solenoid valve kit
-FK4 Filter/regular/chuck and gripper/solenoid valve kit
Note:
  1. -FK4 is only applicable with the LaserTurn and VascuLathe products.

Connector (Required)

Option Description
-CN1 3-ferrule/chuck solenoid valve kit
-CN2 4-ferrule/chuck and gripper solenoid valve kit
-CN3 26-pin HD connector/chuck solenoid valve kit
-CN4 26-pin HD connector/chuck and gripper solenoid valve kit
-CN5 25-pin D connector/chuck solenoid valve kit
-CN6 25-pin D connector/chuck and gripper solenoid valve kit
Note:
  1. Filtration kit options and connector options are both stage and controller/drive dependent. Options available for all ASR, ACS, CCS, LaserTurn, and VascuLathe products. Compatible with all Aerotech and 3rd-party controller and amplifiers.
