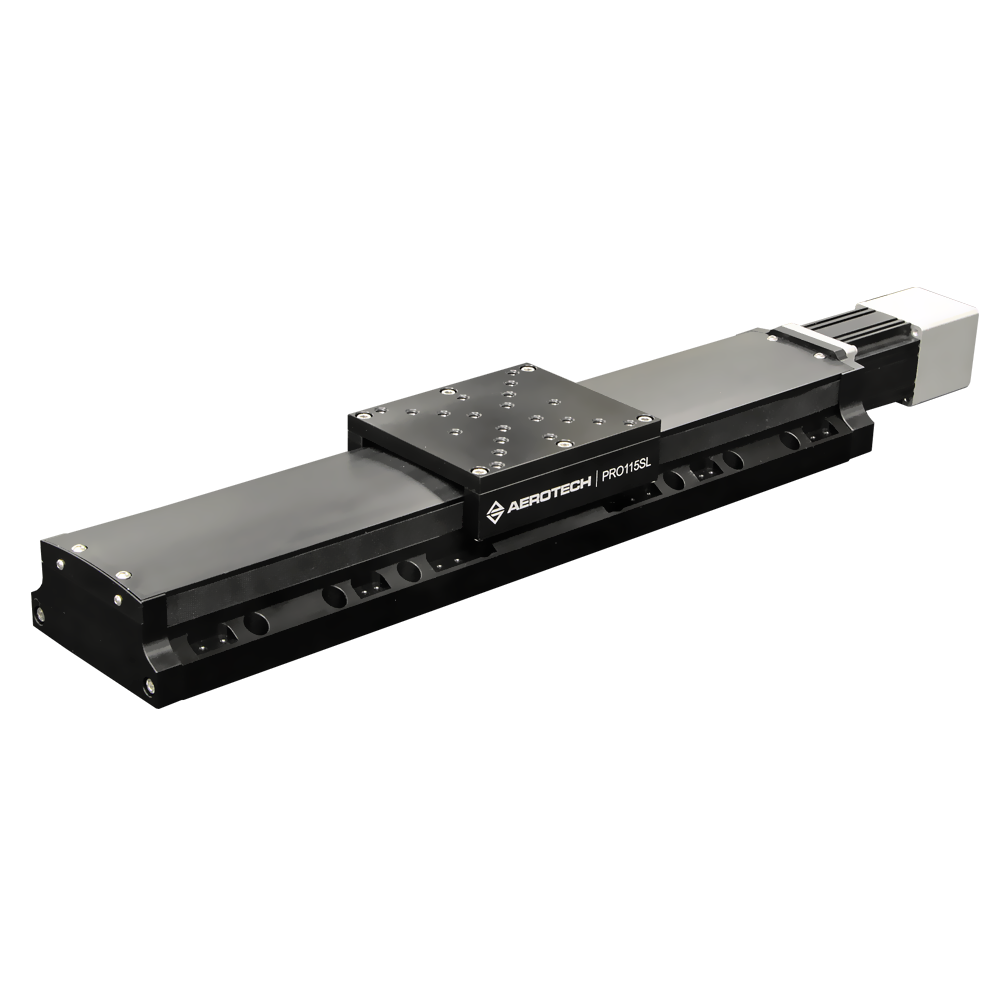

PRO115SL Mechanical Bearing, Ball-Screw Stage
The PRO115SL is a compact stage that excels in medium- and high-performance industrial applications. Combining superior craftsmanship and the highest quality components, PRO115SL stages consistently and reliably deliver best-in-class positioning performance. Thoughtfully engineered features and options, coupled with competitive pricing, make PRO115SL stages the ideal choice for streamlined integration into a wide variety of precision systems, machines and processes.
- Description
- Specifications

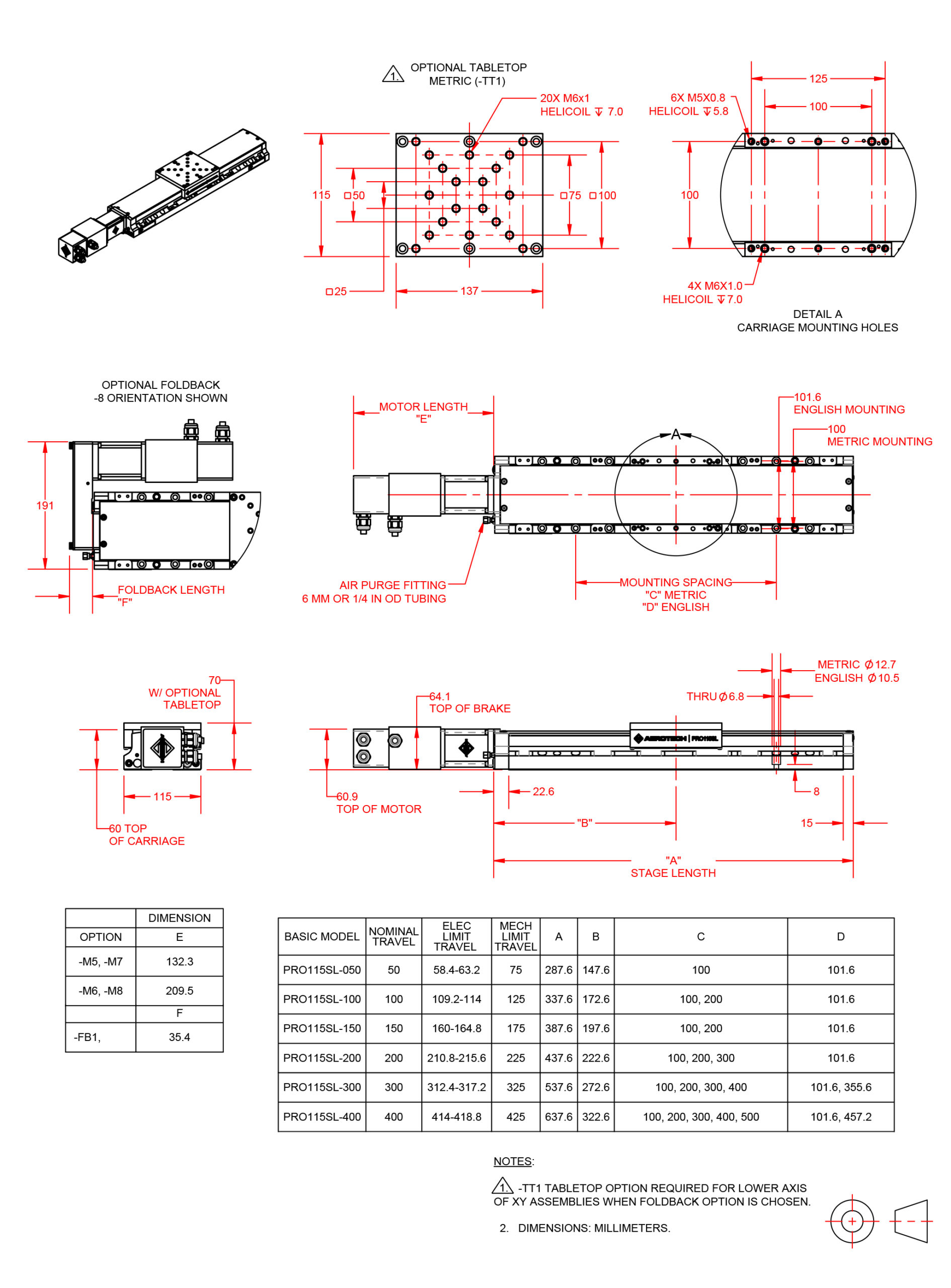

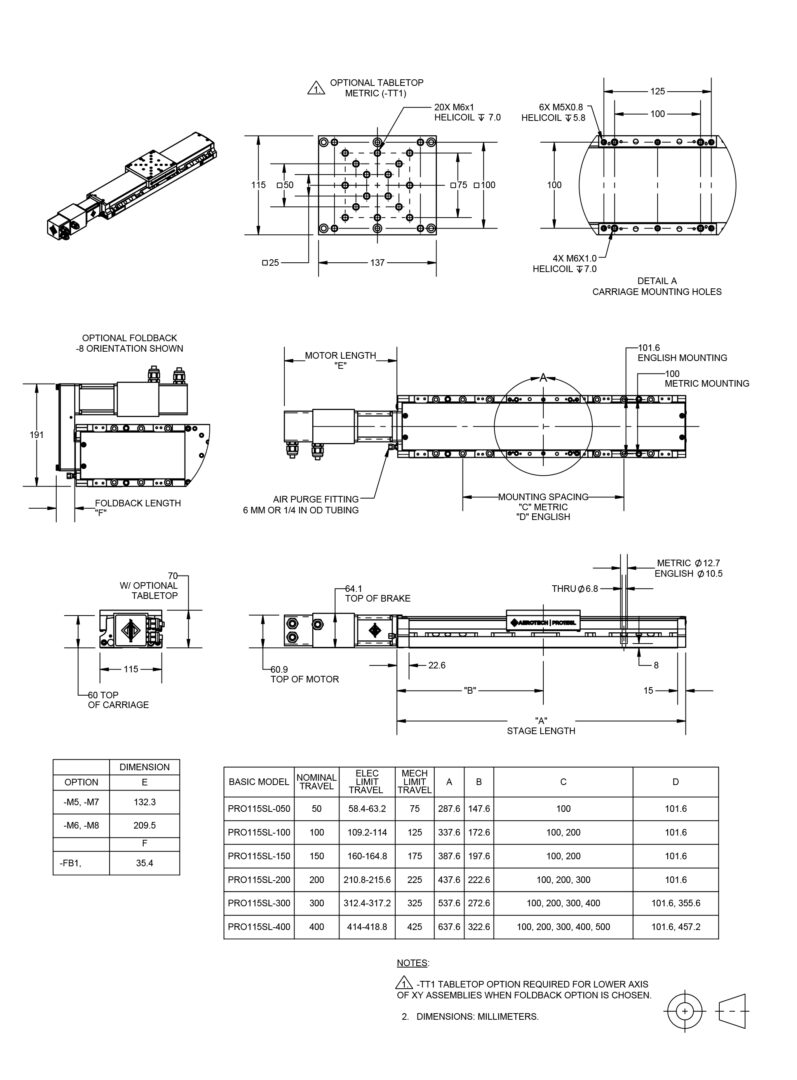

- Dimensions
- Ordering Info
- Downloads
Design Features
- Compact design simplifies integration in space-constrained applications
- Best-in-class geometric performance ensures superior workpoint accuracy
- Excellent motion & positioning performance in a cost-effective package
- Rugged, reliable construction is ideal for versatile industrial use
- Hardcover & side seals offer protection against contamination & particulates
- Vacuum- & cleanroom-compatible versions available
Key Applications
PRO115SL mechanical bearing, ball-screw stages are extremely versatile, trusted and proven in medium- and high-performance applications, such as:
- Laser material processing
- Precision metrology, inspection & microscopy
- Electronics & circuit board manufacturing & inspection
- Display processing
- Synchrotron & light source experiments
- Medical device manufacturing
- Semiconductor fabrication
- Fiber optics & silicon photonics processing
- Additive manufacturing & precision assembly
Rugged & Reliable Mechanical Construction
A long-life recirculating linear guide bearing system, a precision-ground ballscrew and a low-friction sealing solution make the PRO115SL an attractive choice for industrial applications such as laser machining, precision metrology, and electronics manufacturing and inspection. The PRO115SL’s durable construction provides protection from debris while the side seals prevent particulate matter from entering the stage. The curved hard-cover design provides a natural shape that prevents excessive contamination from collecting on the stage. Capable of accommodating an ample payload range, PRO115SL stages are easy and intuitive to integrate, set up and operate and deliver an exceptionally long lifetime of consistent positioning performance.
Design & Integration Flexibility
The PRO115SL’s many standard features and options make it incredibly flexible, so you can easily tailor it to your application. The base mounting holes are accessible from the outside of the stage, allowing for easy horizontal or vertical mounting to both metric and English optical tables and other interfaces. The stage tabletop comes standard with a metric mounting pattern to accommodate your payload, process equipment or even another axis of motion.
Brushless servomotors are available with a variety of encoder feedback options, providing electrical resolutions ranging from 0.5 µm down to the sub-nm level. For vertical applications, the motor can be equipped with a fail-safe holding brake. Plus, PRO115SL stages can be configured with an optional motor foldback kit that reduces the overall axis length, thereby simplifying integration into space-constrained applications.
PRO115SL stages can be prepared for use in special environments by request. Contact us [link to contact page] to learn more about compatibility in vacuum chambers, cleanrooms and more.
Automate with Professional-Grade Motion
Our PRO-series stages are available in a comprehensive spectrum of sizes and configurations to accommodate an equally diverse range of user needs and application requirements. In addition to the PRO-SL series of ball-screw stages, our PRO-LM direct-drive linear stages are equipped with powerful linear motors for smooth, high-dynamic performance. PRO stages are offered in six widths ranging from 115 mm to 560 mm (depending on your application’s space constraints and payload requirements) plus travel lengths ranging from 50 mm to 1000 mm or longer. Also available in a vertical elevator-stage variant, our PRO-SV long-travel lift stages offer heavy-duty lifting capacity and can be easily mounted to PRO-SL and PRO-LM linear stages.
Aerotech PRO-series stages greatly simplify the task of building and integrating multi-axis assemblies and motion systems—whether you prefer to do it yourself or leave it to our motion and automation professionals.
PRO115SL Specifications
| PRO115SL-50 | PRO115SL-100 | PRO115SL-150 | PRO115SL-200 | PRO115SL-300 | PRO115SL-400 | |
|---|---|---|---|---|---|---|
| Travel | 50 mm | 100 mm | 150 mm | 200 mm | 300 mm | 400 mm |
| Accuracy-Standard(1) | ±6 µm | ±8 µm | ±10 µm | ±12 µm | ||
| Accuracy-Calibrated(1) | ±1 µm | ±1.25 µm | ±1.5 µm | ±1.75 µm | ±2.5 µm | ±3 µm |
| Resolution (Min. Incremental Motion) | 0.1 µm(2) ; 1.0 µm (3) | |||||
| Bidirectional Repeatability(1) | ±1 µm | |||||
| Horizontal Straightness(1) | ±1.5 µm | ±2.5 µm | ±3 µm | ±4 µm | ±6 µm | ±8 µm |
| Vertical Straightness(1) | ±1.5 µm | ±2.5 µm | ±3 µm | ±4 µm | ±6 µm | ±8 µm |
| Pitch | 19 µrad | 29 µrad | 39 µrad | 58 µrad | 78 µrad | |
| Roll | 19 µrad | 29 µrad | 39 µrad | 58 µrad | 78 µrad | |
| Yaw | 19 µrad | 29 µrad | 39 µrad | 58 µrad | 78 µrad | |
| Maximum Speed(4) | 300 mm/s | |||||
| Maximum Acceleration(4) | Function of Motor, Amplifier Selection, Payload, and Maximum Axial Load | |||||

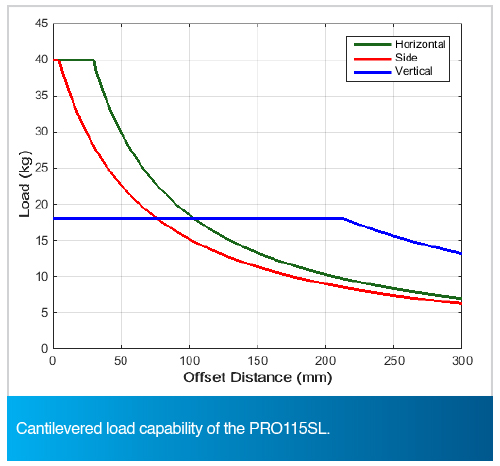

| Load Capacity-Horizontal(5) | 40 kg | |||||
| Load Capacity-Vertical(Axial)(5) | 18 kg | |||||
| Load Capacity-Side(5) | 40kg | |||||
| Moving Mass (w/Tabletop)-SL | 1.4 kg | |||||
| Stage Mass (No Motor)-SL | 4.0 kg | 4.4 kg | 4.8 kg | 5.2 kg | 5.6 kg | 6.8 kg |
| Material | Anodized Aluminum | |||||
| MTBF (Mean Time Between Failure) | 20,000 Hours | |||||
- Certified with -PL1/PL2 options.
- Achieved with Aerotech rotary motor with amplified sine encoder.
- Achieved with Aerotech rotary motor with 2500 cnts/ rev digital encoder.
- Requires the selection of an appropriate amplifier with sufficient voltage and current.
- Axis-orientation for on-axis loading is listed.
- Specifications are for single-axis systems measured 25 mm above the tabletop. Performance of multi-axis systems is payload and workpoint dependent. Contact factory for multi-axis applications.
- Specifications listed are non-foldback kit options. Contact factory for specifications when a foldback kit (-FBx) is used.
PRO115SL Electrical Specifications
| PRO115SL-50 | PRO115SL-100 | PRO115SL-150 | PRO115SL-200 | PRO115SL-300 | PRO115SL-400 | |
|---|---|---|---|---|---|---|
| Drive System | Brushless Linear Servomotor | |||||
| Feedback (Rotary Encoder)(1) | Incremental – 1000 lines/rev (1 Vpp) and 2500 lines/rev (TTL) | |||||
| Maximum Voltage | 340 VDC | |||||
| Limit Switches | 5 V, Normally Closed | |||||
| Home Switch | Near Center | |||||
- Requires the selection of a motor option
Travel (Required)
| Option | Description |
|---|---|
| -050 | 50 mm travel stage |
| -100 | 100 mm travel stage |
| -150 | 150 mm travel stage |
| -200 | 200 mm travel stage |
| -300 | 300 mm travel stage |
| -400 | 400 mm travel stage |
- Other travel options are available upon request. Contact Aerotech for more information.
Tabletop (Optional)
| Option | Description |
|---|---|
| -TT1 | Tabletop with metric dimension mounting |
- Other tabletop options are available upon request. Contact Aerotech for more information.
Motor (Optional)
| Option | Description |
|---|---|
| -M5 | BM75 brushless servomotor, and 2500-line TTL encoder |
| -M6 | BM75 brushless servomotor, 2500-line TTL encoder, and brake |
| -M7 | BM75 brushless servomotor and 1000-line 1 Vpp encoder |
| -M8 | BM75 brushless servomotor, 1000-line 1 Vpp encoder, and brake |
- Other motor options are available upon request. Contact Aerotech for more information.
Foldback Kit (Optional)
| Option | Description |
|---|---|
| -FB1 | Foldback kit for 0.250 inch diameter shaft NEMA 23 motor |
- TT option required for lower axis of XY when a foldback kit is used.
Motor Orientation (Optional)
| Option | Description |
|---|---|
| -2 | Bottom cable exit, optional orientation |
| -3 | Left-side cable exit, standard orientation |
| -8 | Right-side foldback, standard orientation |
- Other motor orientation options are available upon request. Contact Aerotech for more information.
Limits (Required)
| Option | Description |
|---|---|
| -LI1 | Normally-closed limit switches; 5 VDC with 9-Pin D connector |
- Other limit options are available upon request. Contact Aerotech for more information.
Coupling (Optional)
| Option | Description |
|---|---|
| -CP1 | Coupling for 0.250 inch diameter shaft |
- Other coupling options are available upon request. Contact Aerotech for more information.
Metrology (Required)
| Option | Description |
|---|---|
| -PL0 | No metrology performance plots |
| -PL1 | Metrology, uncalibrated with performance plots |
| -PL2 | Metrology, calibrated (HALAR) with performance plots |
Integration (Option)
| Option | Description |
|---|---|
| -TAS | Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration. |
| -TAC | Integration - Test as components Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system. |
Accessories (to be ordered as separate line item)
| Option | Description |
|---|---|
| ALIGNMENT-NPA | Non-precision XY assembly |
| ALIGN-NPAZ | Non-precision XZ or YZ assembly |
| ALIGN-PA10 | XY assembly; 10 arc sec orthogonality. Alignment to within 7 microns orthogonality for short travel stages. |
| ALIGN-PA10Z | XZ or YZ assembly with L-bracket; 10 arc second orthogonality. Alignment to within 10 microns orthogonality for short travel stages. |
| ALIGN-PA5 | XY assembly; 5 arc sec orthogonality. Alignment to within 3 microns orthogonality for short travel stages. |
| ALIGN-PA5Z | XZ or YZ assembly with L-bracket; 5 arc second orthogonality. Alignment to within 5 microns orthogonality for short travel stages. |

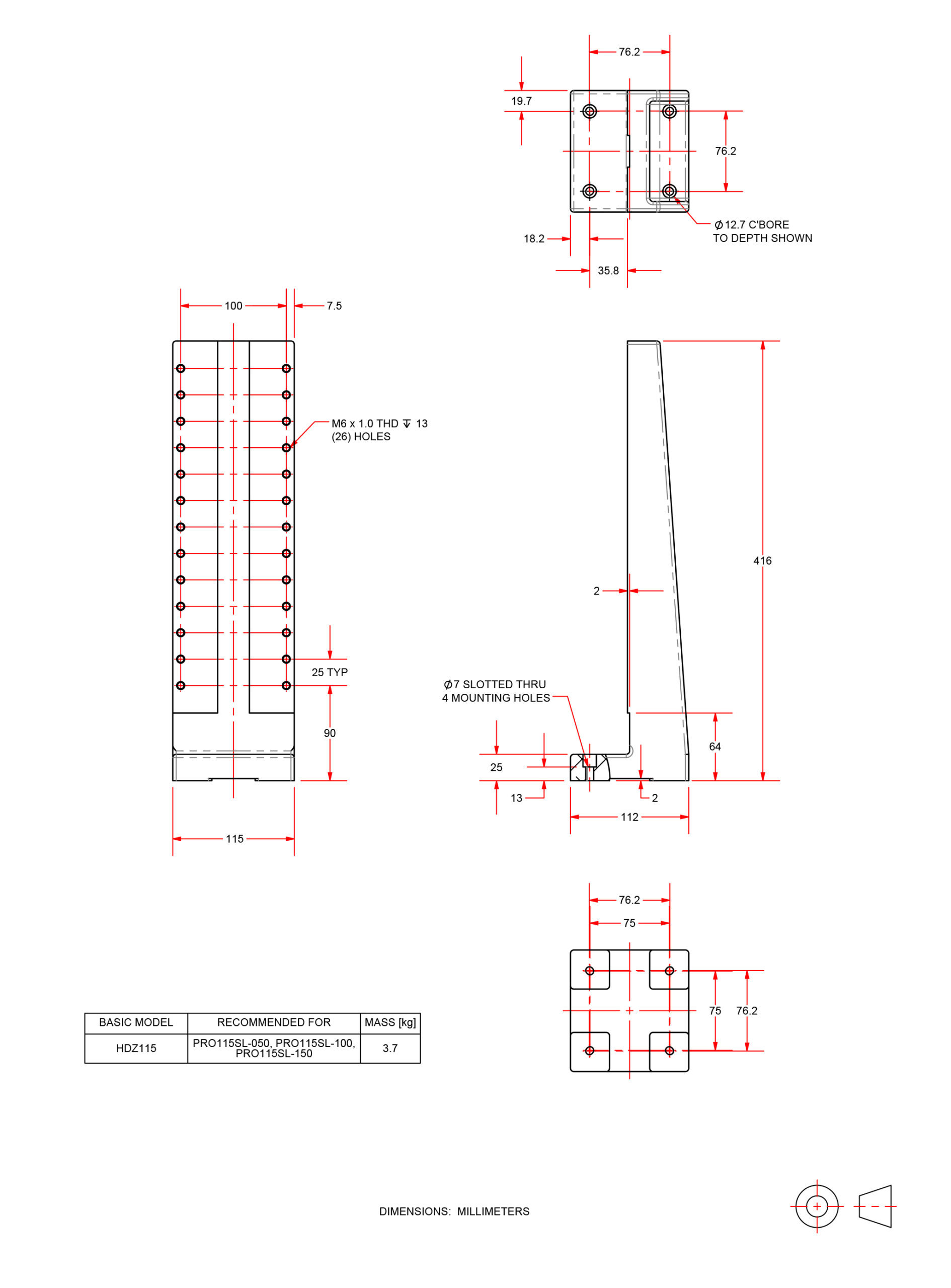

| HDZ115 | Right angle L-bracket for PRO115SL/SLE-050, PRO115SL/SLE-100, and PRO115SL/SLE-150 only. |
- HDZ bracket requires tabletop when mounting to a PRO stage.
