Description

Design Features

  • Superior payload capacity in a compact form-factor provides maximum utility
  • Best-in-class geometric performance ensures superior workpoint accuracy
  • Excellent motion & positioning performance in a cost-effective package
  • Rugged, reliable construction is ideal for versatile industrial use
  • Hardcover & side seals offer protection against contamination & particulates
  • Vacuum- & cleanroom-compatible versions available

Key Applications

PRO165SL mechanical bearing, ball-screw stages are extremely versatile, trusted and proven in medium- and high-performance applications, such as:

  • Laser material processing
  • Precision metrology, inspection & microscopy
  • Electronics & circuit board manufacturing & inspection
  • Display processing
  • Synchrotron & light source experiments
  • Medical device manufacturing
  • Semiconductor fabrication
  • Fiber optics & silicon photonics processing
  • Additive manufacturing & precision assembly

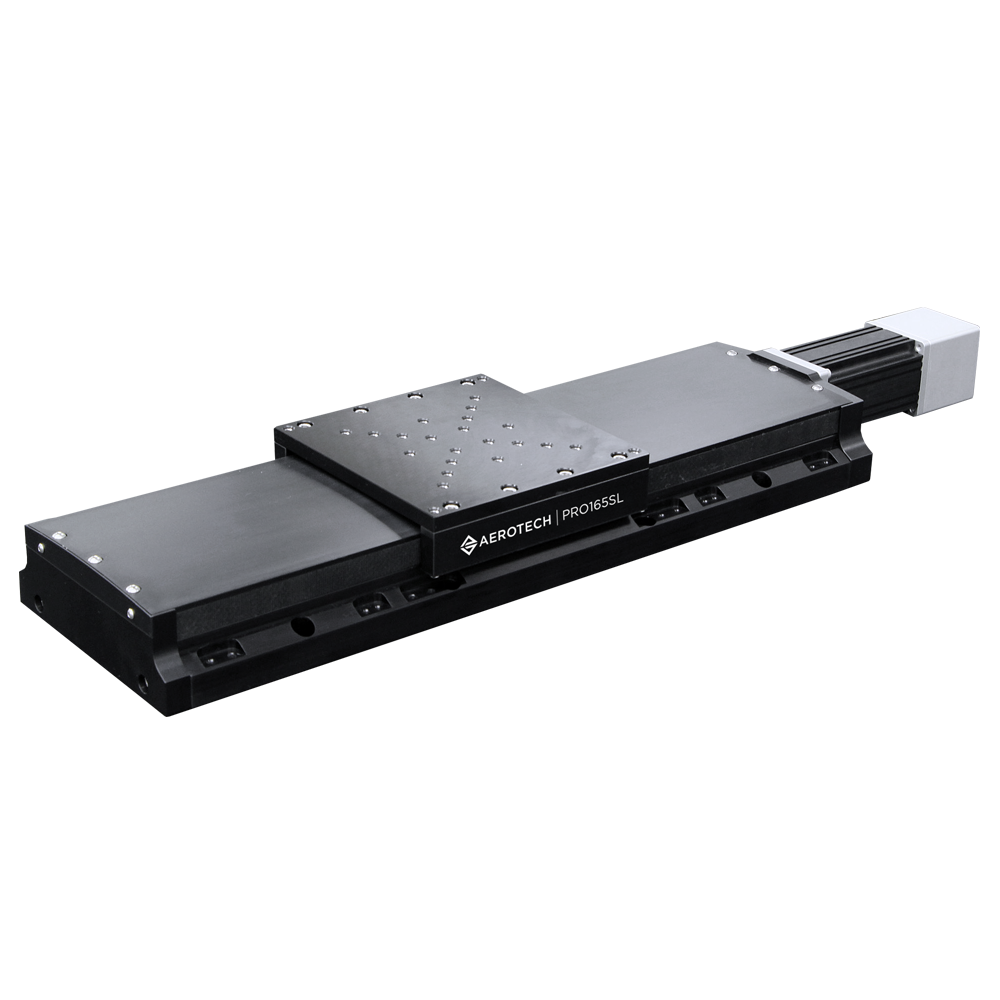

Rugged & Reliable Mechanical Construction

A long-life recirculating linear guide bearing system, a precision-ground ball screw and a low-friction sealing solution make the PRO165SL an attractive choice for industrial applications such as laser machining, precision metrology, and electronics manufacturing and inspection. The PRO165SL’s durable construction provides protection from debris while the side seals prevent particulate matter from entering the stage. The curved hardcover design provides a natural shape that prevents excessive contamination from collecting on the stage. Capable of accommodating an ample payload range, PRO165SL stages are easy and intuitive to integrate, set up and operate. They also deliver an exceptionally long lifetime of consistent positioning performance.

Design & Integration Flexibility

The PRO165SL is designed with many standard features and options that make it incredibly flexible and allow it to be easily tailored to your specific application. The base mounting holes are accessible from the outside of the stage, allowing for easy horizontal or vertical mounting to both metric and English optical tables and other interfaces. The stage tabletop comes standard with a metric mounting pattern to accommodate your payload, process equipment or even another axis of motion.

Brushless servo motors are available with a variety of encoder feedback options, providing electrical resolutions ranging from 0.5 µm down to the sub-nm level. For vertical applications, the motor can be equipped with a fail-safe holding brake. Plus, PRO165SL stages can be configured with an optional motor foldback kit that reduces the overall axis length, thereby simplifying integration into space-constrained applications.

PRO165SL stages can be prepared for use in special environments by request. Contact us to learn about compatibility in vacuum chambers, cleanrooms and more.

Automate with Professional-Grade Motion

Our PRO-series stages are available in many sizes and configurations to accommodate an equally diverse range of user needs and application requirements. In addition to the PRO-SL series of ball-screw stages, we offer PRO-LM direct-drive linear stages, which are equipped with powerful linear motors for smooth, high-dynamic performance. PRO stages are offered in six widths ranging from 115 mm to 560 mm (depending on your application’s space constraints and payload requirements) plus travel lengths ranging from 50 mm to 1000 mm or longer. Also available in a vertical elevator-stage variant, our PRO-SV long-travel lift stages offer heavy-duty lifting capacity and can be easily mounted to PRO-SL and PRO-LM linear stages.

Aerotech PRO-series stages make it easier to build and integrate multi-axis assemblies and motion systems–whether you prefer to do it yourself or leave it to our motion and automation professionals.

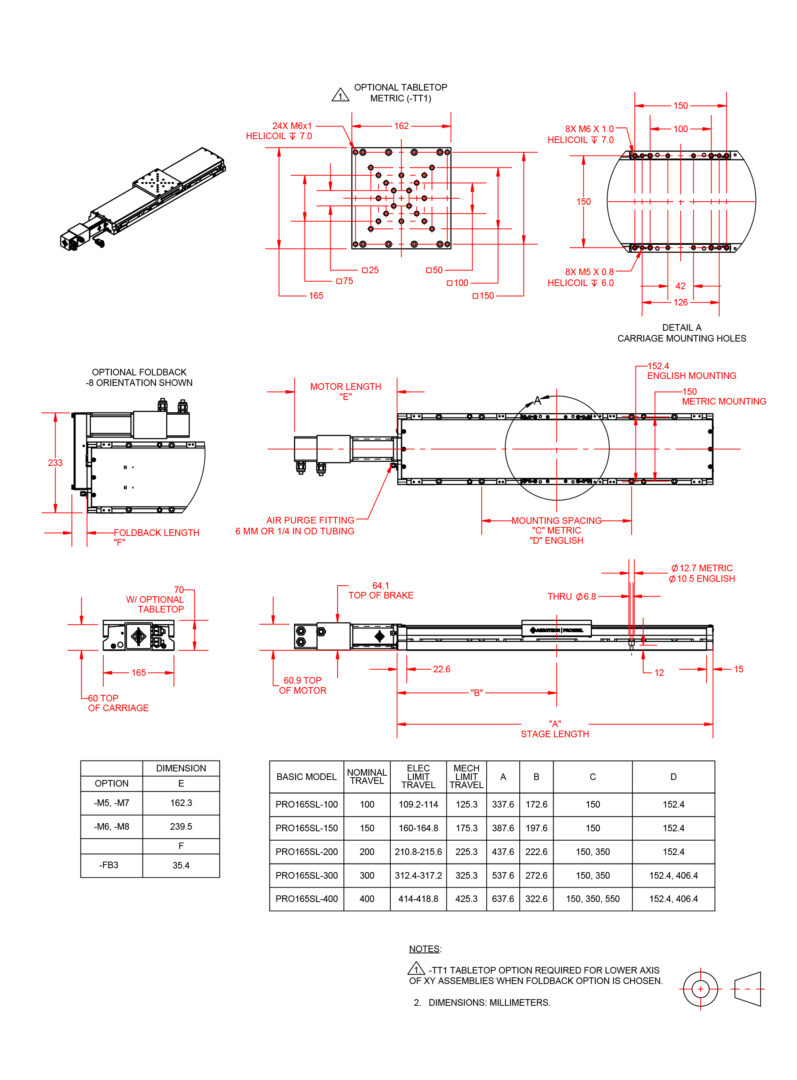

Dimensions

PRO165SL



HDZ Bracket



Ordering Information

PRO165SL Series Linear, Ball-Screw Stage

Travel (Required)

Option Description
-100 100 mm travel stage
-150 150 mm travel stage
-200 200 mm travel stage
-300 300 mm travel stage
-400 400 mm travel stage
Note:
  1. Other travel options are available upon request. Contact Aerotech for more information.

Tabletop (Optional)

Option Description
-TT1 Tabletop with metric dimension mounting
Note:
  1. Other tabletop options are available upon request. Contact Aerotech for more information.

Motor (Optional)

Option Description
-M5 BM130 brushless servomotor, and 2500-line TTL encoder
-M6 BM130 brushless servomotor, 2500-line TTL encoder, and brake
-M7 BM130 brushless servomotor and 1000-line 1 Vpp encoder
-M8 BM130 brushless servomotor, 1000-line 1 Vpp encoder, and brake
Note:
  1. Other motor options are available upon request. Contact Aerotech for more information.

Foldback Kit (Optional)

Option Description
-FB3 Foldback kit for 0.375 inch diameter shaft NEMA 23 motor
Note:
  1. TT option required for lower axis of XY when a foldback kit is used.

Motor Orientation (Optional)

Option Description
-2 Bottom cable exit, optional orientation
-3 Left-side cable exit, standard orientation
-8 Right-side foldback, standard orientation
Note:
  1. Other motor orientation options are available upon request. Contact Aerotech for more information.

Limits (Required)

Option Description
-LI1 Normally-closed limit switches; 5 VDC with 9-Pin D connector
Note:
  1. Other limit options are available upon request. Contact Aerotech for more information.

Coupling (Optional)

Option Description
-CP2 Coupling for 0.375 inch diameter shaft
Note:
  1. Other coupling options are available upon request. Contact Aerotech for more information.

Lifting Hardware (Optional)

Option Description
-LF Lifting hardware
Note:
  1. Lifting option only available on travels 400 mm and greater. Lifting should never be ordered on the upper-axis of an XY set (only order on lower-axis).

Metrology (Required)

Option Description
-PL0 No metrology performance plots
-PL1 Metrology, uncalibrated with performance plots
-PL2 Metrology, calibrated (HALAR) with performance plots

Integration (Required)

Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.

Option Description
-TAS Integration - Test as system
Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration.
-TAC Integration - Test as components
Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system.

Accessories (to be ordered as separate line item)

Option Description
ALIGNMENT-NPA Non-precision XY assembly
ALIGN-NPAZ Non-precision XZ or YZ assembly
ALIGN-PA10 XY assembly; 10 arc sec orthogonality. Alignment to within 7 microns orthogonality for short travel stages.
ALIGN-PA10Z XZ or YZ assembly with L-bracket; 10 arc second orthogonality. Alignment to within 10 microns orthogonality for short travel stages.
ALIGN-PA5 XY assembly; 5 arc sec orthogonality. Alignment to within 3 microns orthogonality for short travel stages.
ALIGN-PA5Z XZ or YZ assembly with L-bracket; 5 arc second orthogonality. Alignment to within 5 microns orthogonality for short travel stages.
HDZ165 Right angle L-bracket for PRO165SL/SLE-050, PRO165SL/SLE-100, and PRO165SL/SLE-150 only.
Note:
  1. HDZ bracket requires one of -TT1/-TT2/-TT4/-TT5 when mounting to a PRO stage.
