Design Features

  • Wide base for large offset loads
  • Powerful dual linear motor drive
  • Designed for high-performance scanning and inspection
  • Active air preload on all air-bearing surfaces
  • Linear encoder feedback provides sub-nanometer resolution
  • High stiffness for heavy loads and excellent geometric performance
  • Four models with travels from 200 mm to 500 mm

Leading-edge industries, particularly in the semiconductor and high-performance test and measurement fields, demand positioning tolerances beyond the capability of conventional ball-screw and mechanical-bearing positioning systems. The ABL1500WB, with its fully active preload, exceptionally high stiffness, and excellent geometric characteristics was designed specifically to meet those demands.

Air-Bearing Design for High Dynamic Performance

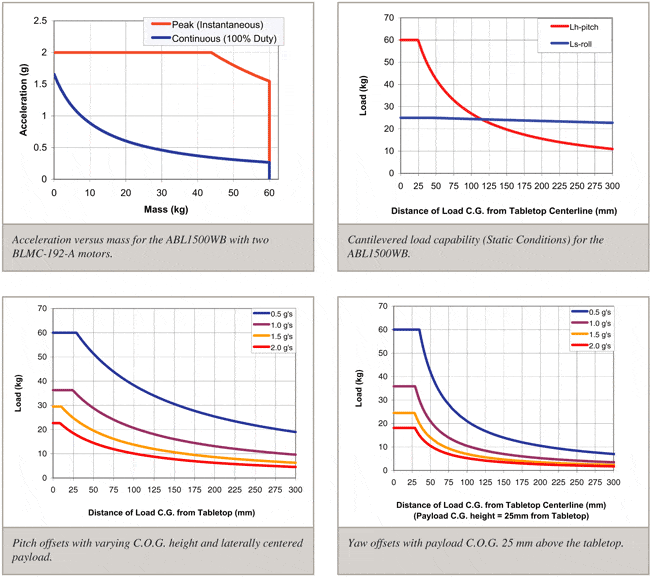

The ABL1500WB incorporates an air-on-air preload on both the vertical and horizontal surfaces. The opposing thin-film pressure maintains the bearing nominal gap tolerance. This design, in addition to the large air-bearing surface that distributes the load over a large surface area, results in a stage with outstanding stiffness that is ideal for heavy or offset loading.

Aerotech’s proprietary manufacturing techniques result in a stage with unsurpassed geometric characteristics, which maximize performance by yielding superior pitch, roll, yaw, straightness and flatness specifications.

Linear Motor Drive

The driving force behind this stage is Aerotech’s BLMC series brushless linear servomotor. The BLMC utilizes an ironless forcer, which means there is zero cogging and no attractive forces, resulting in unsurpassed smoothness of motion.

Zero Maintenance

Our totally noncontact air bearing, noncontact linear motor drive and noncontact feedback device ensure years of maintenance-free operation at the high performance levels expected of Aerotech equipment. Because there is no mechanical contact between moving elements, the ABL1500WB experiences no wear or reduction in performance over time. Service life is virtually unlimited and because there is no lubrication – only clean, dry gas– air bearings are ideal for cleanroom and medical applications.

Cable Management

We carefully optimize the cable bend radius to ensure years of trouble-free operation. In the unlikely event of failure, Aerotech’s modular design makes cable replacement quick and easy with minimal downtime.

We include all customer-required cables, air hoses, etc. in our CMS bundle to facilitate integration into the final system. Both ends are fully connectorized for simple integration into the customer’s machine.



Ordering Information

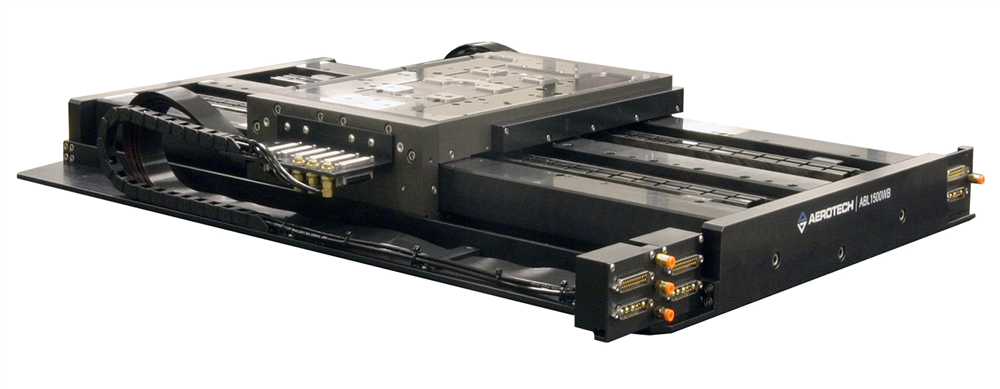

ABL1500WB Air-Bearing Direct-Drive Linear Stage

Option Description

Travel (Required)

Option Description
-200 200 mm travel
-300300 mm travel
-400400 mm travel
-500500 mm travel

Feedback (Required)

Option Description
-E1 Incremental linear encoder, 1 Vpp amplified sine output
-E2Incremental linear encoder, 0.1 µm TTL line driver output
-E3 High-accuracy incremental linear encoder, 1 Vpp amplified sine output

Cable Management (Required)

Option Description
-CMS1 Single axis cable management system
-CMS2Cable management system for XY assembly
-CMS3 Cable management system for XYZ axis

Metrology (Required)

Option Description
-PL1Metrology, uncalibrated with performance plots
-PL2 Metrology, calibrated (HALAR) with performance plots

Integration (Required)

Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.

Option Description
-TAS Integration - Test as system
Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration.
-TAC Integration - Test as components
Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system.

Accessories (to be ordered as a separate line item)

Option Description
ALIGN-NPA Non-precision XY assembly
ALIGN-PA10 XY assembly; 10 arc sec orthogonality. Alignment to within 7 microns orthogonality for short travel stages.
ALIGN-PA5 XY assembly; 5 arc sec orthogonality. Alignment to within 3 microns orthogonality for short travel stages.
ABF Air-bearing filtration kit
