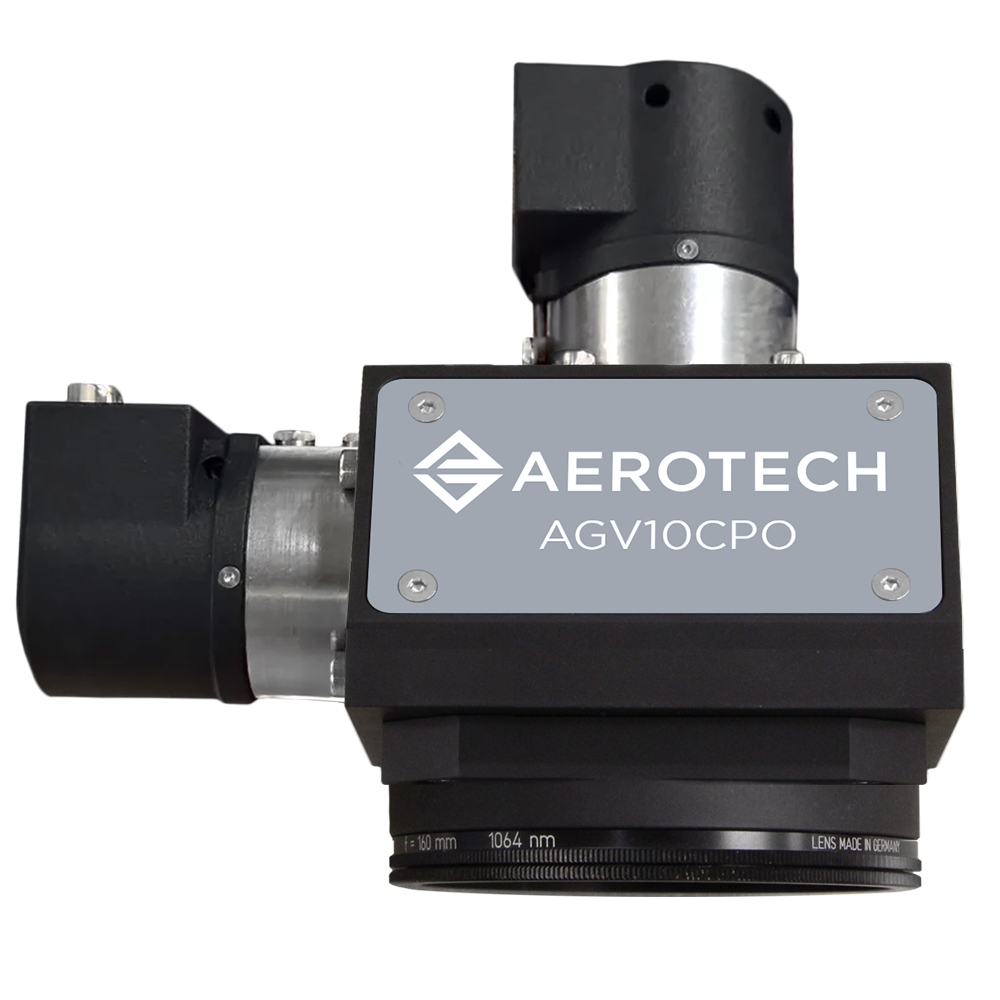

AGV-CPO CORE Performance Two-Axis Laser Scan Heads
The AGV-CPO laser scan head perfectly balances performance and value for the widest range of laser applications. As the entry point for our high-performance 2-axis laser scan heads, the AGV-CPO includes all the CORE performance capabilities of our AGV-HPO and AGV-XPO scanners – plus 22-bit resolution, excellent dynamics and ultra-low thermal drift.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
CORE Features
- 100 kHz trajectory planning & 200 kHz servo rates ensure perfect motion tracking & minimal jump-and-settle times.
- POSITION SYNCHRONIZED OUTPUT (PSO) enables accurate laser triggering regardless of process speed or acceleration
- INFINITE FIELD OF VIEW (IFOV) enables seamless synchronization with linear & rotary servo motion to extend the scanner's FOV to large processing areas
- Optional DIRECT MOTOR STATOR WATER COOLING & AIR-COOLED MIRRORS minimizes process stabilization time & thermal drift
- Dual digital encoder feedback eliminates velocity error & enables SINGLE-DIGIT MICROMETER-LEVEL ACCURACY throughout the scanner's Field of View (FOV)
- Available in 10 mm, 14 mm & 20 mm input apertures.
Key Applications
AGV-CPO provides dynamics, precision and superior optical performance to a broad range of laser applications, including:
- Laser process development & research
- Ultrafast laser processing
- High-speed drilling & cutting
- Micromachining
- Surface texturing
Delivering Aerotech CORE Performance
The AGV-CPO delivers the CORE performance capabilities of all our 2-axis scanners, including 100 kHz trajectories with 200 kHz servo rates, seamless integration with servo axes with Infinite Field of View (IFOV), and precise laser triggering based on position feedback with Position Synchronized Output (PSO). Combining these innovative features with value enables the AGV-CPO to deliver more performance to a broad range of laser applications.
Perfectly Balanced Precision, Dynamics & Value
Our AGV-CPO scan heads are engineered from the ground up to deliver high speeds and accelerations while simultaneously providing outstanding part-path accuracy – much like their higher-performance counterparts, the AGV-HPO and AGV-XPO. With 22-bit effective scanner resolution, <100 µrad accuracy and <0.6 µrad RMS repeatability, the AGV-CPO exceeds industry standards for precision. Integrated motor water cooling and optional air-cooled mirrors help ensure ultra-low thermal drift. The motors’ dynamics are optimized for the most demanding laser processing applications with peak accelerations up to 225,000 m/s2 and speeds up to 75 m/s with zero tracking error.
Upgrade Your Process at Any Time
All AGV 2-axis laser scan heads are controlled by the Automation1 PC-based controller and Automation1 GL4 2-axis laser scan head drive. This means you can perform research and develop your process with the AGV-CPO, then upgrade to the extreme dynamic performance of the AGV-XPO scanner without needing any additional control hardware from Aerotech. This common mechanical and electrical integration ensures your process development can scale to high-volume production at any time with zero downtime or additional development costs.
Advanced Programming Features
The AGV-CPO uses our Automation1 PC-based controller to coordinate its motion with additional servo axes via IFOV and Mark on the Fly (MOTF). It operates natively on RS-274 compliant G-Code, enabling nearly any CAM software to generate trajectories for it – so it can be molded to work with your process development software stack. Additional scanners can be controlled with advanced C-transformations to create complex multi-axis trajectories for all axes connected to the controller.
Dimensions

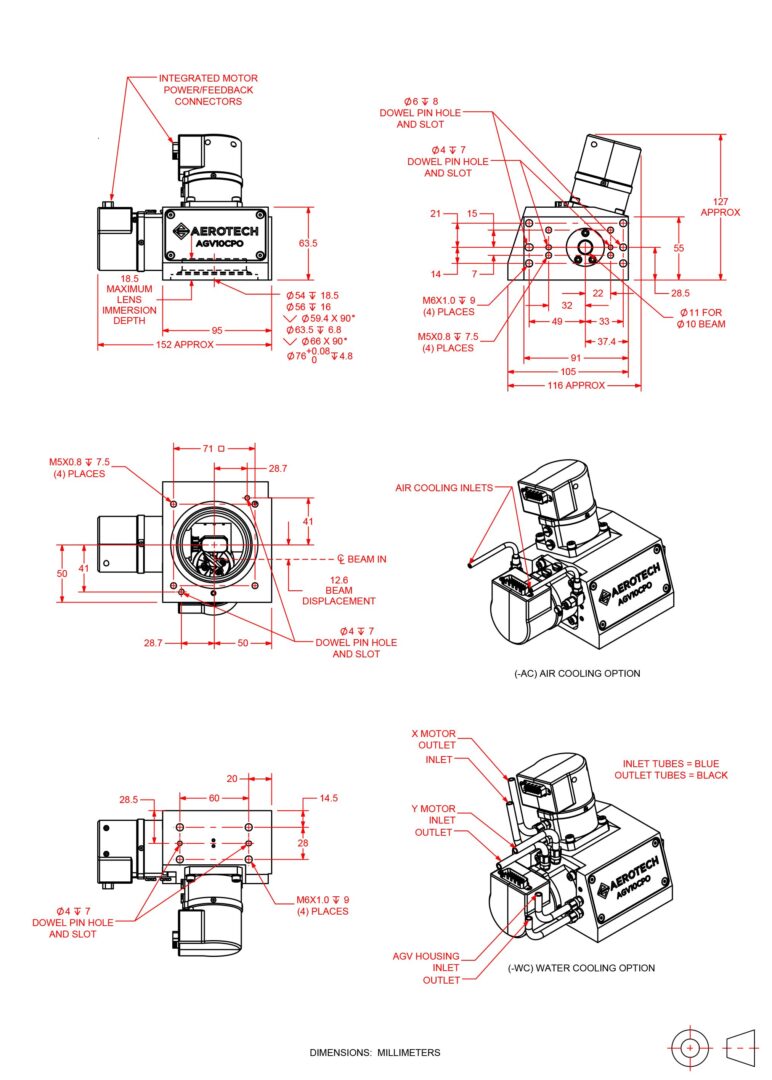

AGV10CPO-BE1

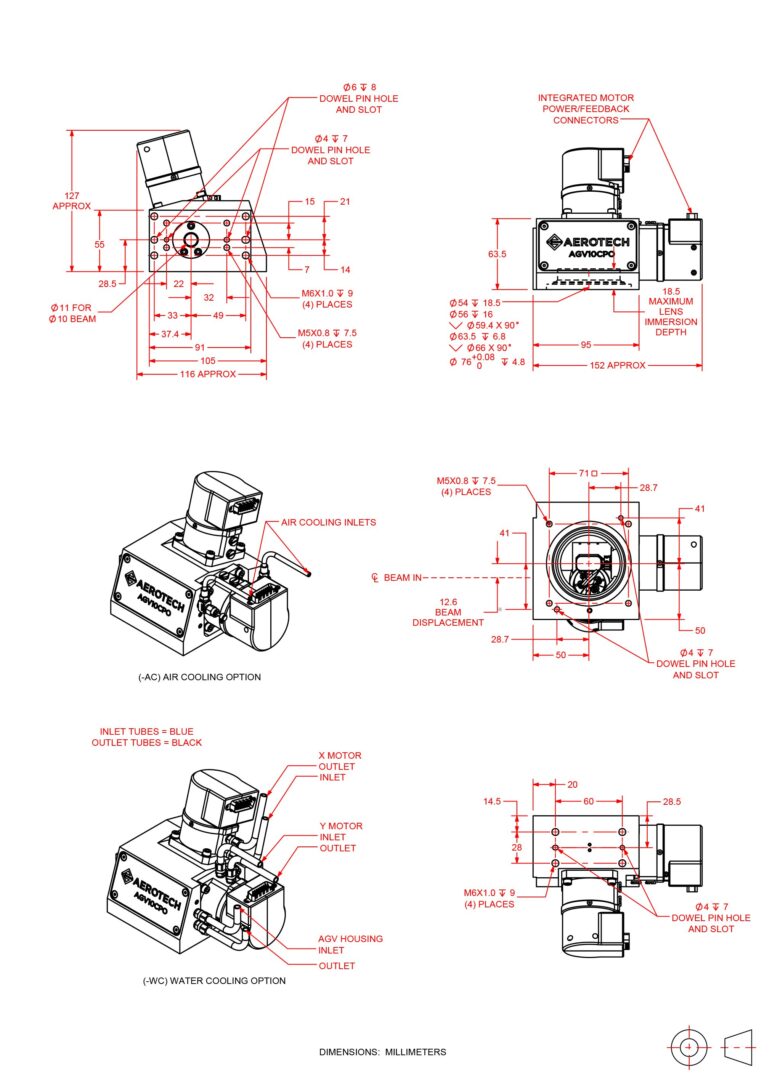

AGV10CPO-BE2

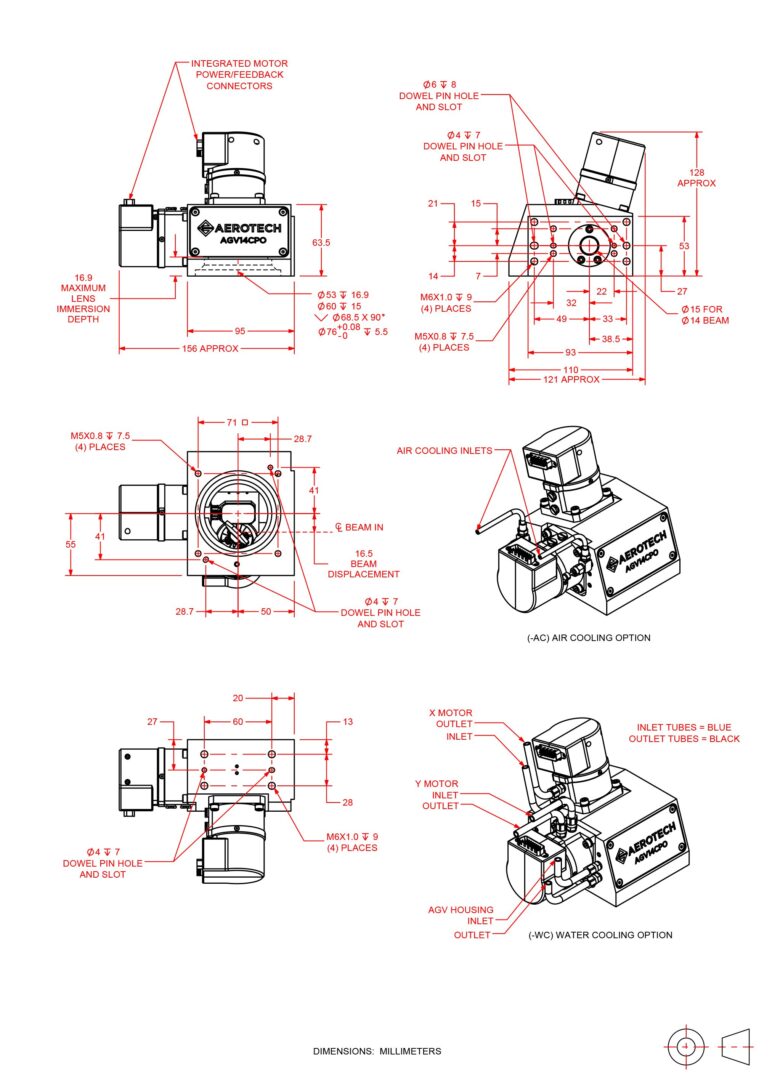

AGV14CPO-BE1

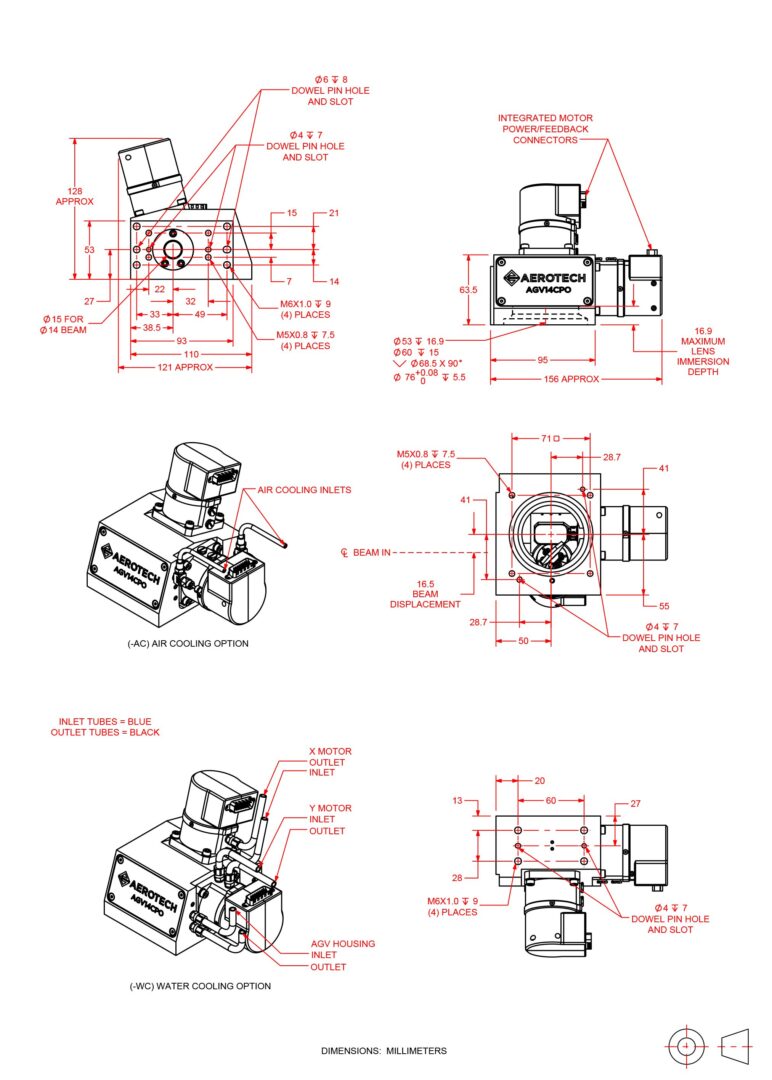

AGV14CPO-BE2

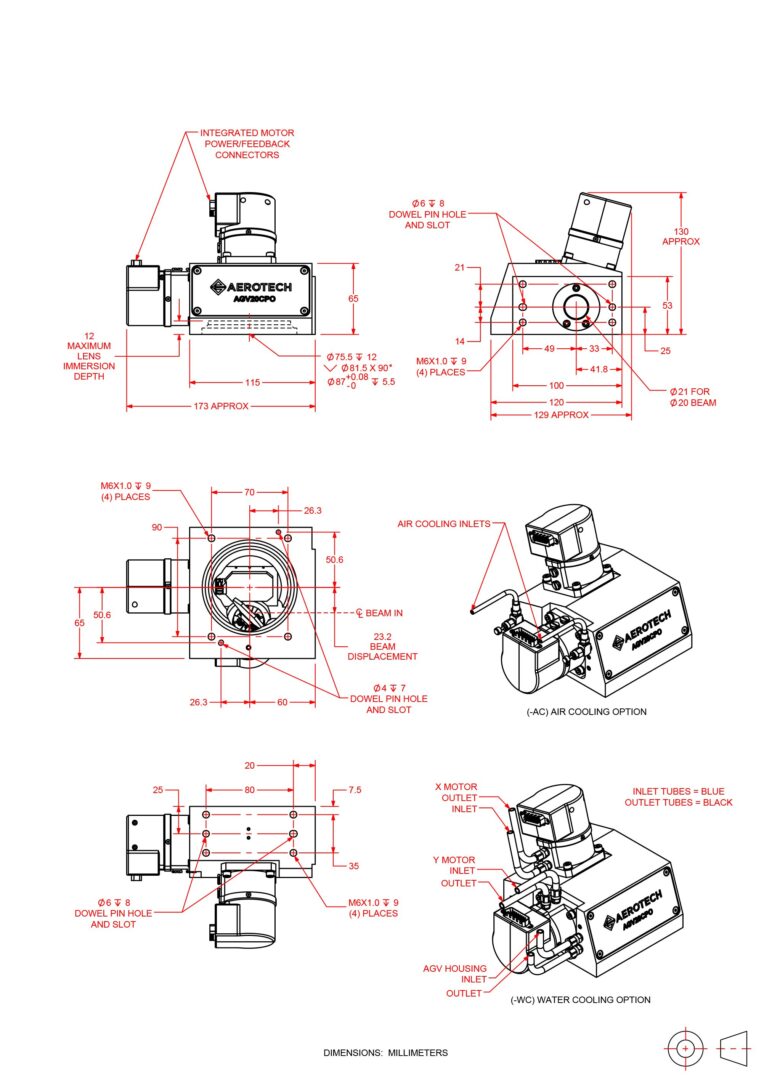

AGV20CPO-BE1

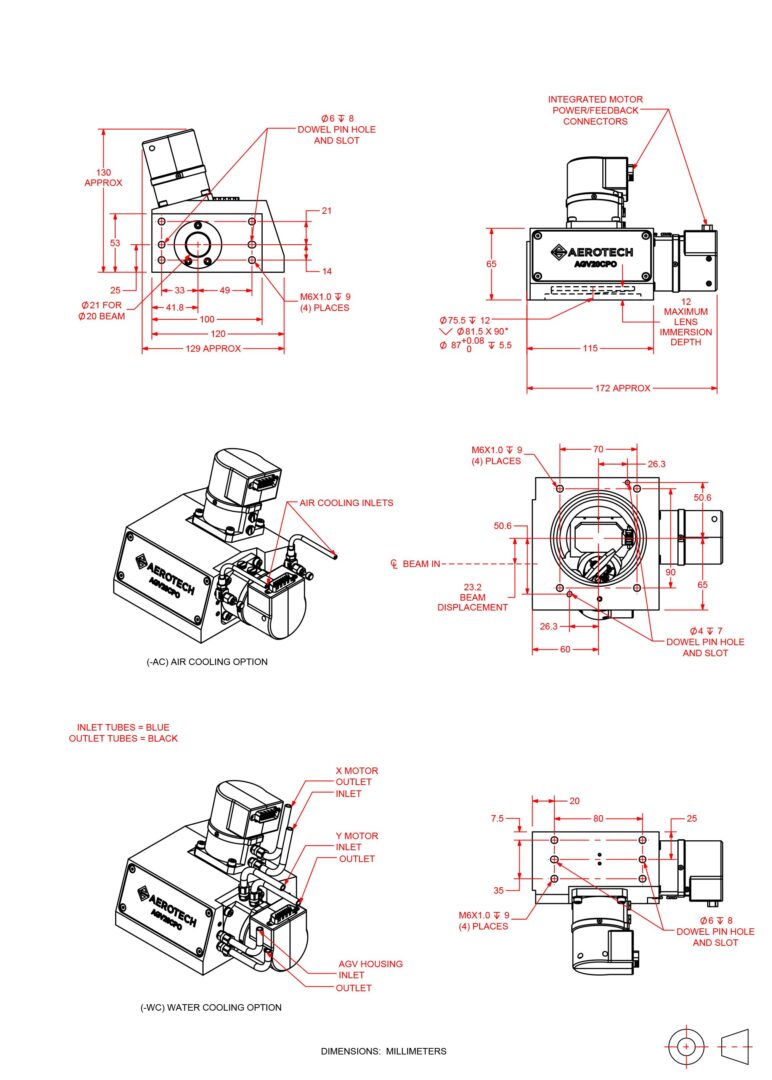

AGV20CPO-BE2
Ordering Information
AGV-CPO CORE Performance Series Laser Scan Head
| Option | Description |
| AGV10CPO | 2-axis galvanometer scanner with 10 mm diameter beam aperture |
| AGV14CPO | 2-axis galvanometer scanner with 14 mm diameter beam aperture |
| AGV20CPO | 2-axis galvanometer scanner with 20 mm diameter beam aperture |
- Contact factory for additional aperture options.
Beam Entry (Required)
| Option | Description |
| -BE1 | Right-side laser beam entry (standard) |
| -BE2 | Left-side laser beam entry |
Wavelength of Mirror Coating (Required)
| Option | Description |
| -W011S | 1030/515/343 nm Tri-Band |
| -W013S | 9.3-10.6 µm CO2 |
- Custom coatings available. Contact factory for details.
Air Cooling (Optional)
| Option | Description |
| -AC | Air Cooling |
Water Cooling (Optional)
| Option | Description |
| -WC | Water Cooling |
Integration (Required)
Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.
| Option | Description |
| -TAS | Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration. |
