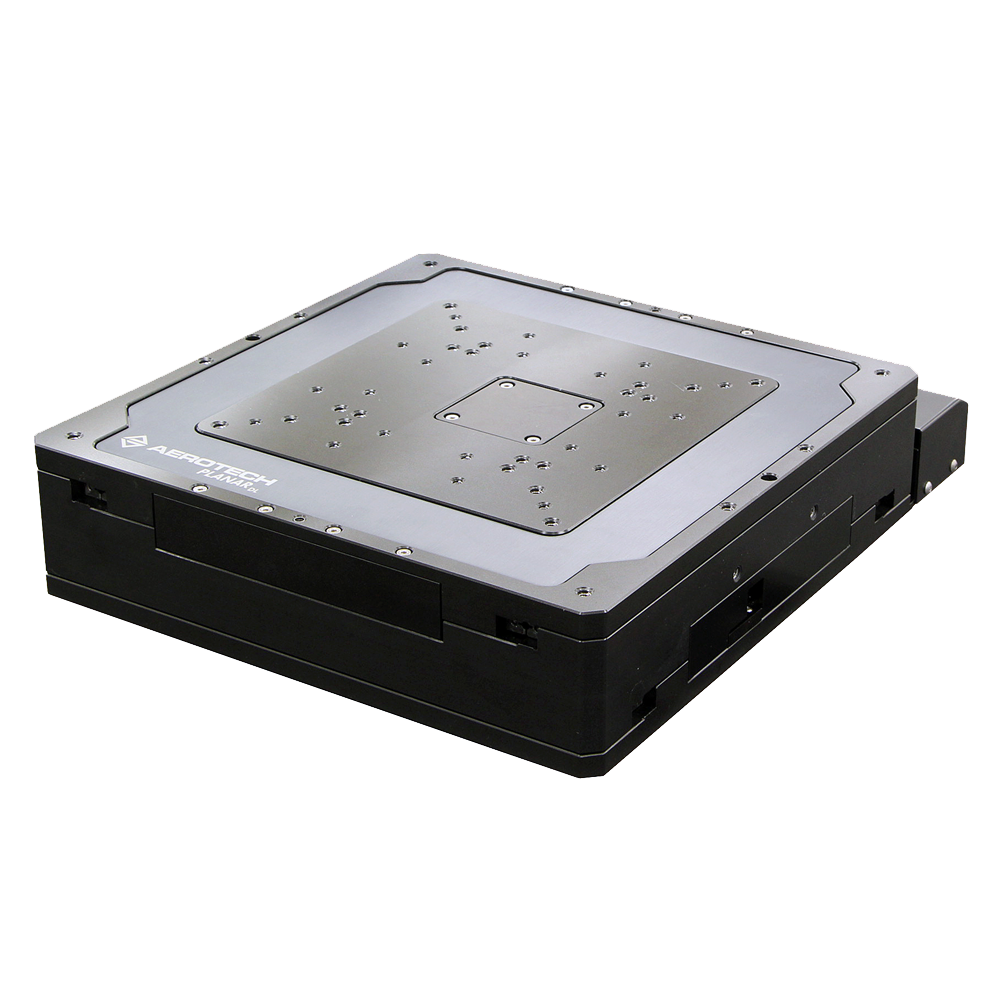

Description

Design Features

  • Integrated, low-profile, XY, linear-motor stage
  • Excellent geometric performance (straightness to ±0.4 µm; flatness to ±1 µm)
  • Anti-creep, precision crossed-roller bearings
  • Large selection – nine models in travel and accuracy

Superior Stage Design

The PlanarDL XY design allows for industry-leading planar geometric performance in applications where straightness and flatness of motion are critical. High-precision anti-creep crossed-roller bearings, precision-machined surfaces and Aerotech linear motors driving through the axes’ center-of-stiffness result in a positioning stage with exceptional geometric tolerances.

The PlanarDL structural elements are optimized for high-dynamics and high-stiffness for the most demanding dynamic applications. Capable of achieving 1 m/s velocities and 1.5 g accelerations, the PlanarDL enables high-throughput, high-accuracy processing resulting in superior process yield and a low total cost of ownership. Unlike competitive products using recirculating bearings, the anti-creep crossed-roller bearings used in this design permit smooth motion making this an ideal stage solution for challenging scanning applications.

Noncontact Direct-Drive Technology

Only noncontact, direct-drive technology offers high-speed and accurate positioning coupled with maintenance-free operation and long service life. At the heart of the PlanarDL is Aerotech’s proprietary direct-drive technology. This drive technology allows for unmatched performance compared to other competitive screw-based and linear motor designs.

The PlanarDL-200XY and -300XY stages are both available with one or two motors per axis, allowing optimization of each individual axis for the specific application and process. Regardless of the number of motors selected, the resulting drive force acts through the centers of friction and stiffness resulting in superior geometric performance and accuracy.

Integrated Cable Management

The cable management system on the PlanarDL is integrated into the stage and optimized for long life and performance. Additional standard options are available for extra servo axes or air/vacuum lines for vacuum chucks or other process pneumatics.

Extreme Positioning Performance

The PlanarDL is available in three positioning performance options. Relying upon decades of experience in system-level design including not only positioning mechanics, but also software and electronics, Aerotech has developed advanced technologies to push the envelope of precision. High-performance -PLUS and -ULTRA options are available to enable accuracies and straightness values down to ±400 nm and orthogonality down to 1 arc second.

Dimensions

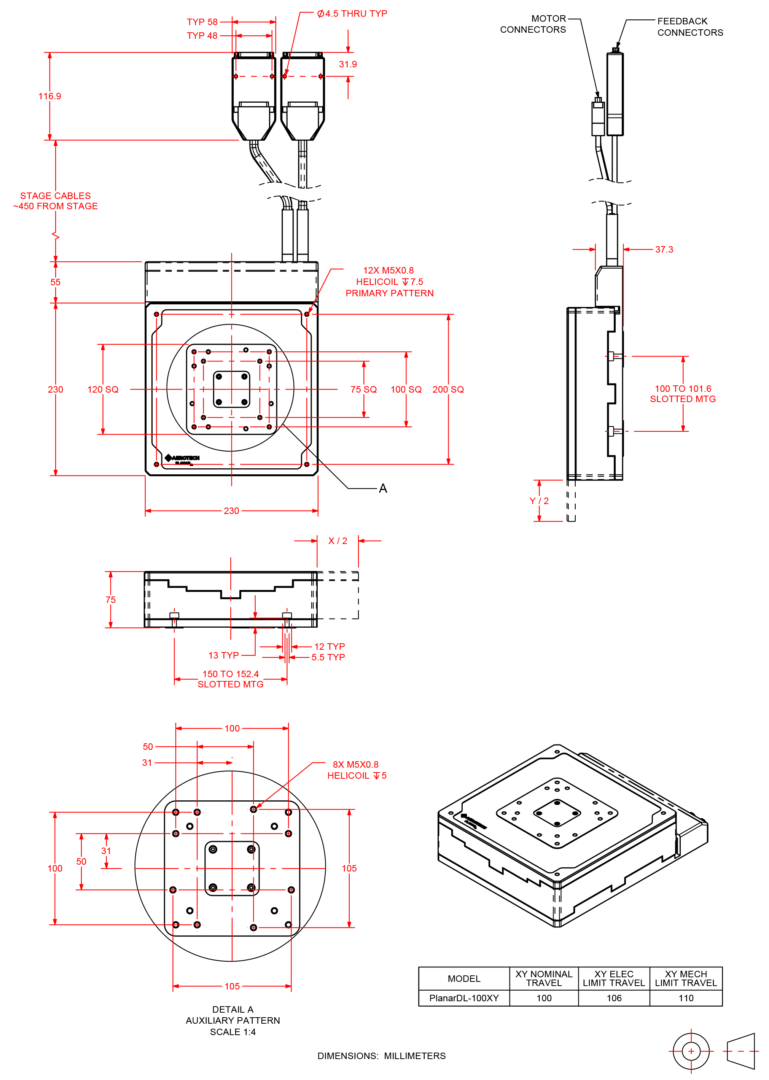

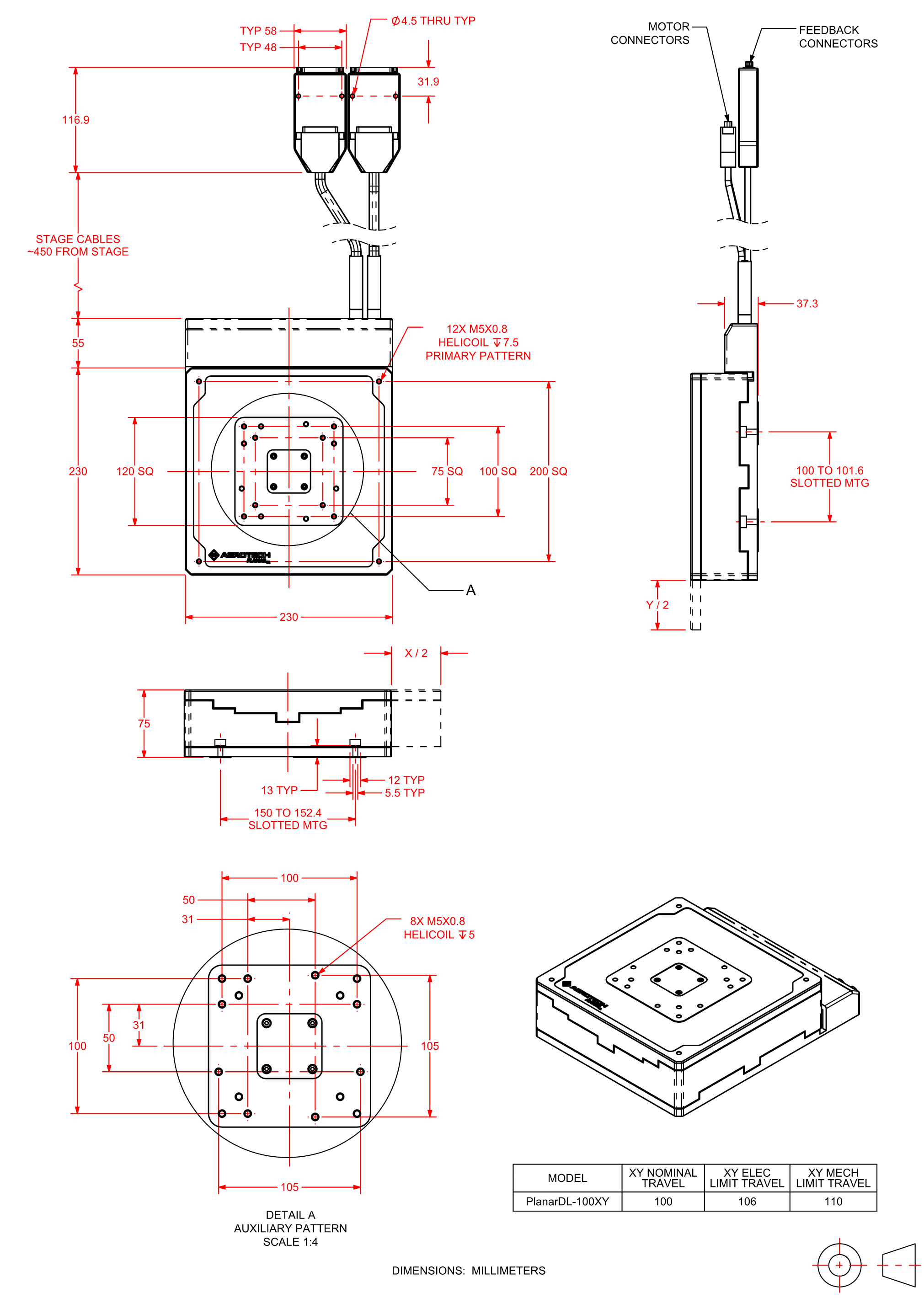

PlanarDL-100XY



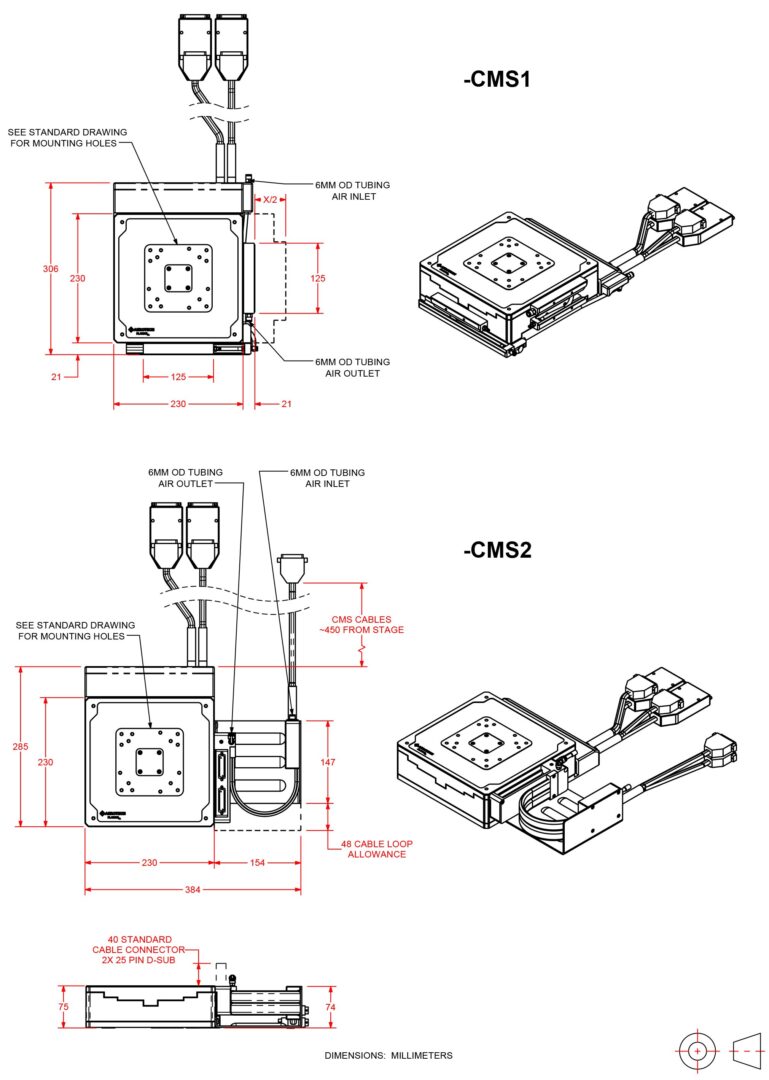

PlanarDL-100XY-CMS1/2

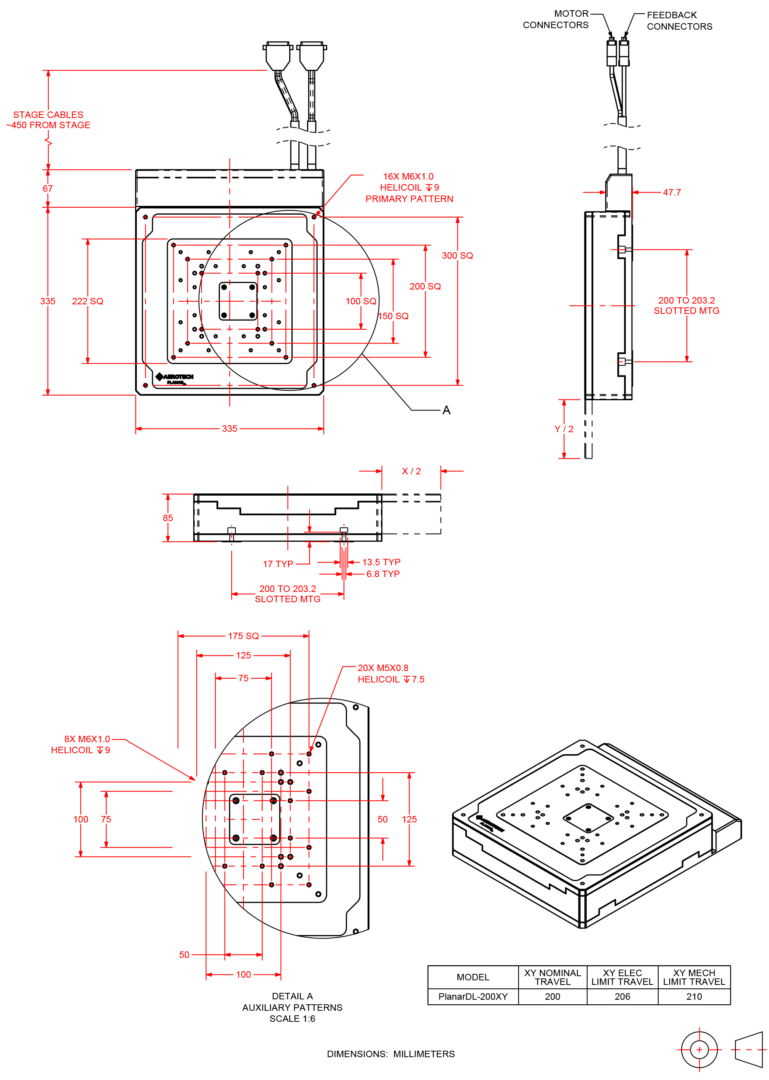

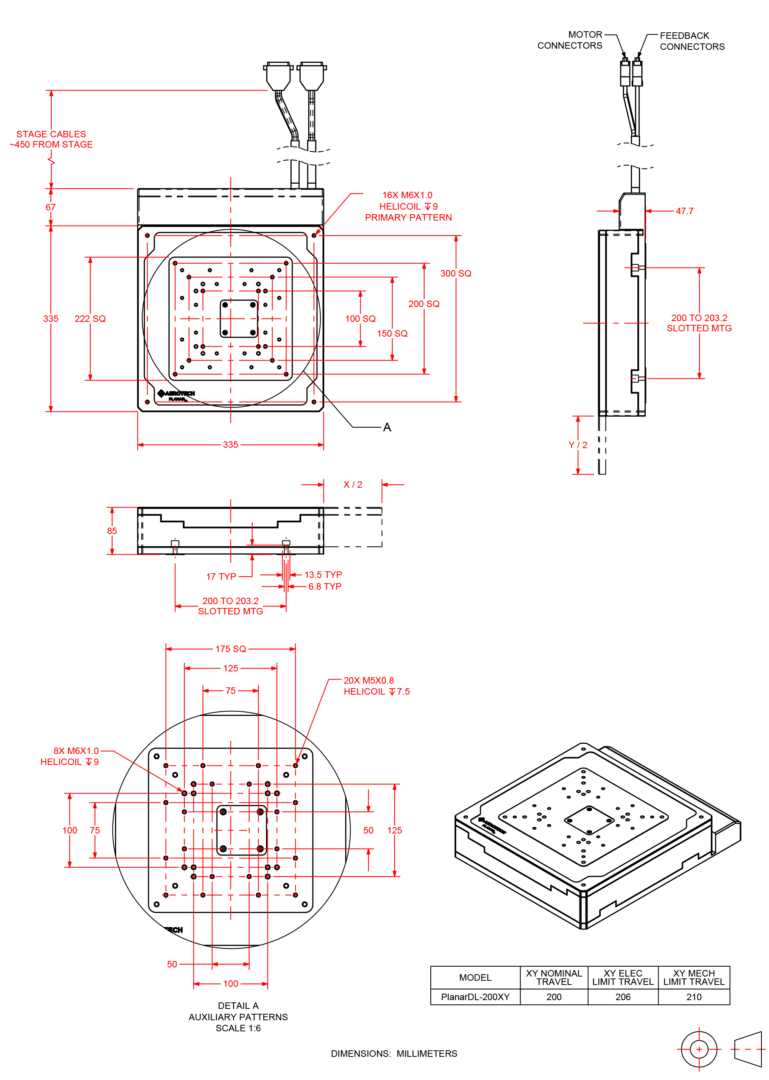

PlanarDL-200XY

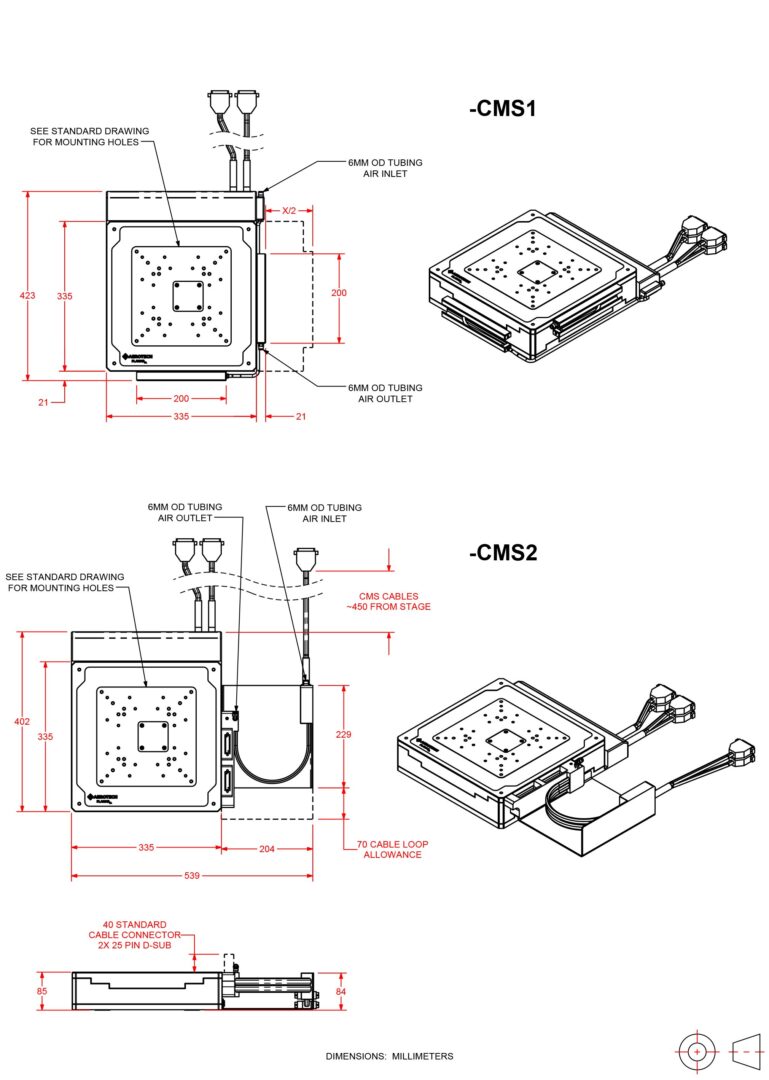

PlanarDL-200XY-CMS1/2

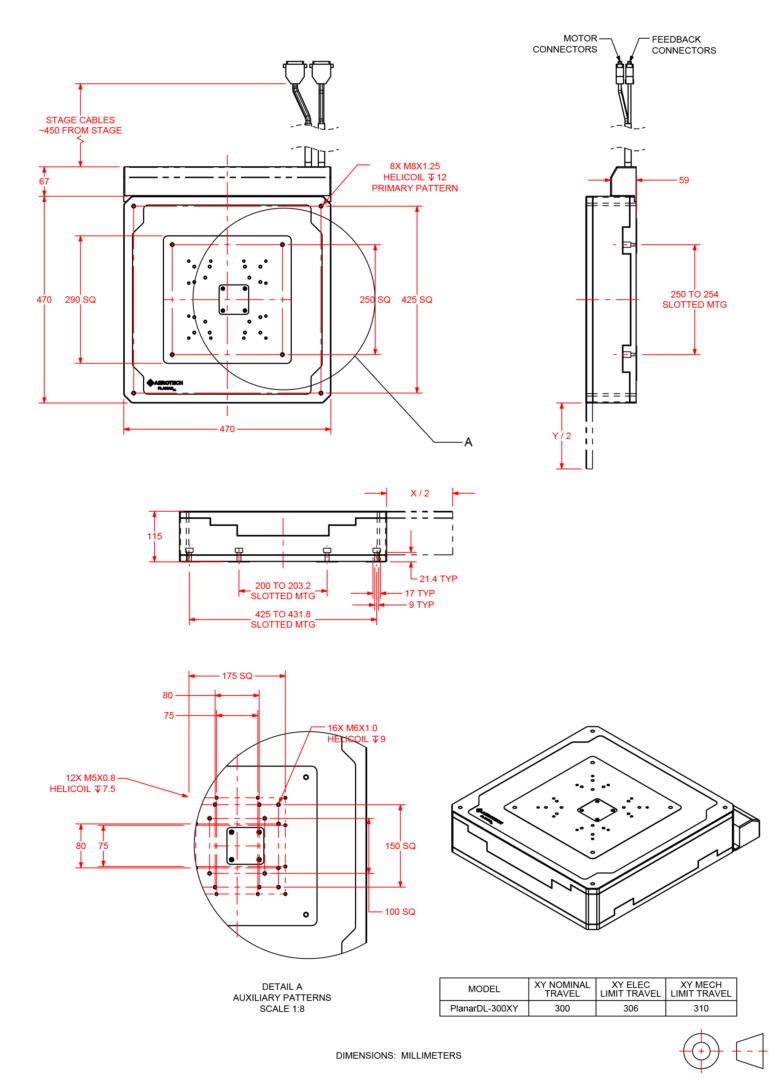

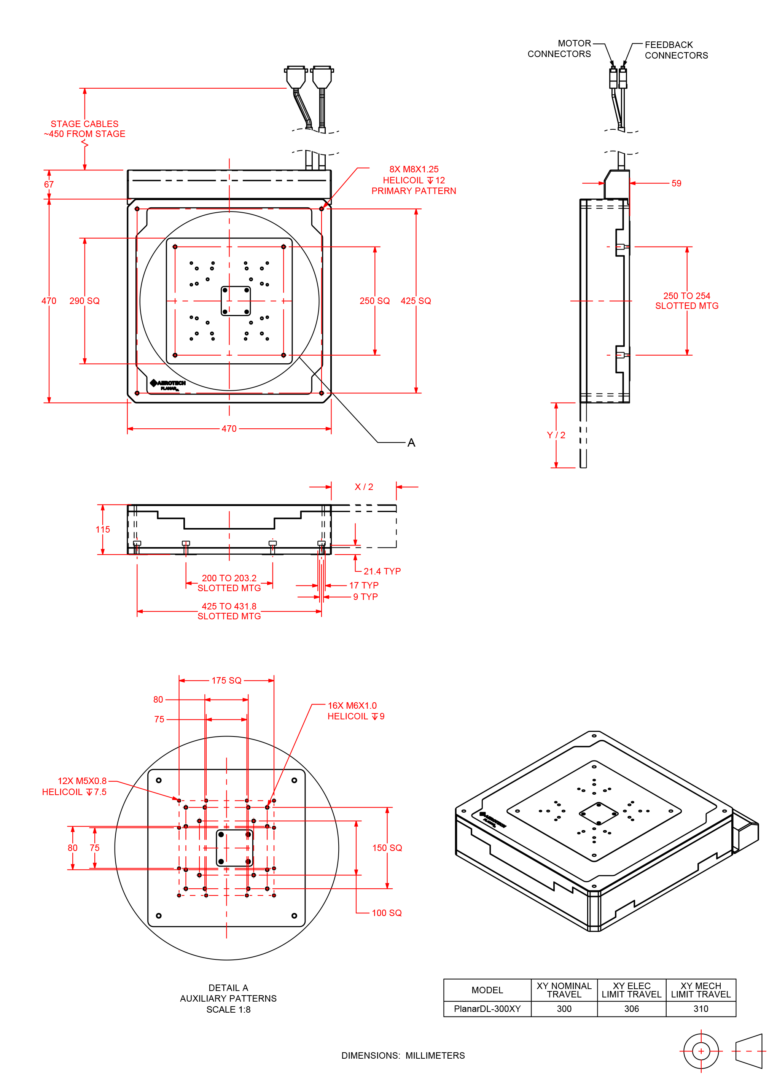

PlanarDL-300XY

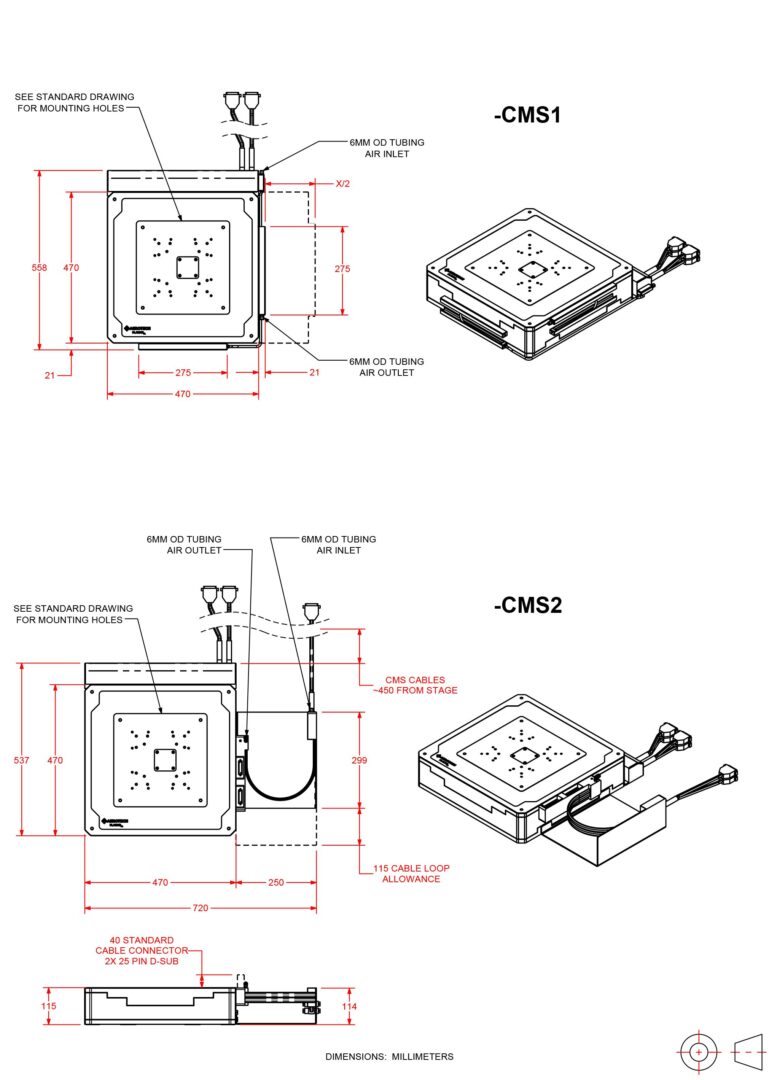

PlanarDL-300XY-CMS1/2



Ordering Information

PlanarDL Two Axis Mechanical-Bearing Direct-Drive Linear Stage

Option Description
PlanarDL-100XY Two axis mechanical-bearing direct-drive linear stage, 100 x 100 mm travel
PlanarDL-200XY Two axis mechanical-bearing direct-drive linear stage, 200 x 200 mm travel
PlanarDL-300XY Two axis mechanical-bearing direct-drive linear stage, 300 x 300 mm travel

Motor (Required) - Not Applicable for PlanarDL-100XY

Option Description
-M1 1 motor on upper axis; 1 motor on lower axis
-M2 2 motors on upper axis; 1 motor on lower axis
-M3 1 motor on upper axis; 2 motors on lower axis
-M4 2 motor on upper axis; 2 motors on lower axis

Feedback (Required)

Option Description
-E1 Incremental encoders, 1 Vpp on upper and lower axes
-E2 Incremental encoders, 0.1 µm Digital RS422 on upper axis, 1 Vpp on lower axis
-E3 Incremental encoders, 1 Vpp on upper axis, 0.1 µm Digital RS422 on lower axis
-E4 Incremental encoders, 0.1 µm Digital RS422 on upper and lower axes

Cable Mangagement (Optional)

Option Description
-CMS1 Cable management for air/vacuum line
-CMS2 Cable management for air/vacuum line and 3rd axis motor/feedback

Performance Grade (Required)

Option Description
-PL1 Base performance
-PL3 High-accuracy performance, PLUS
-PL4 Ultra-high accuracy 2D performance, ULTRA
Note:
  1. -PL3 and -PL4 performance grades require Aerotech controller.

Integration (Required)

Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.

Option Description
-TAS Integration - Test as system
Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration.
-TAC Integration - Test as components
Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system.
