Description

Design Features

  • Supports 60 kg load capacity, with up to 50 mm travel and 20 mm/s maximum speed
  • Delivers excellent straightness & angular performance thanks to high-precision crossed-roller bearings
  • Achieves 10 nm step size by combining precision-ground ball-screw, slotless torque motor & low-expansion linear encoder
  • Provides long service life thanks to high-reliability drive mechanism
  • Integrates seamlessly with PRO-SL and PRO-LM linear stages
  • Offers ThermoComp® for consistent performance in changing environments

Key Applications

PRO-SV stages are ideal for height-restricted applications or situations when multiple positioning stages are stacked, including:

  • Synchrotron & beamline sample manipulation
  • Wafer inspection
  • Surface metrology
  • Laser microprocessing
  • Precision manufacturing

Long Travel in a Low-Profile Package

Unlike other types of vertical motion stages, PRO-SV features a drive mechanism that impinges directly on the moving carriage. This provides an exceptionally long range of vertical travel and maintains the shortest height possible, granting free and clear access to the user’s payload. Minimizing the work-point height is especially important in designing motion systems because it minimizes the Abbe offset, thus contributing to greater overall precision.

Precisely Engineered for Superior Performance

A major problem commonly associated with lift stages is subpar geometric performance (i.e., straightness, pitch, roll, and yaw). PRO-SV provides an innovative solution to this problem. Guided by anti-creep and crossed-roller bearings, the moving carriage is thoroughly supported in all directions, making PRO-SV the most precise commercially-available lift stage on the market. Additionally, a slotless, brushless torque motor is joined directly to a large-diameter, precision-ground ball-screw drive mechanism to position even the heaviest payloads with extremely smooth, cog-free motion. The lack of belts, gears, and flex-couplings contributes to PRO-SV’s high reliability and eliminates sources of error from wind-up and excessive backlash.

Features for Design and Integration Flexibility

PRO-SV is engineered for seamless integration into multi-axis stage platforms, motion systems, and machines. It mounts directly to Aerotech’s renowned PRO-SL and PRO-LM linear translation stages and is available with an optional accessory tabletop, to which a variety of Aerotech rotary stages or other process equipment can be integrated. Directly-coupled rotary encoder feedback is standard, and several optional high-resolution linear encoder additions exist for enhanced precision and high bandwidth when operating with dual-loop feedback. When payload management safety is critical, PRO-SV can be configured with an absolute linear encoder, as well as a holding brake, to provide extra levels of protection against inadvertent damage.

Mitigate Thermal Errors with ThermoComp®

Temperature changes and thermal effects can be the most detrimental sources of error in precision machines, and screw drives are particularly susceptible. To combat this issue, PRO-SV stages are available with Aerotech’s ThermoComp® feature, an integrated temperature compensation solution that delivers accurate and dependable positioning performance in the presence of thermal disturbances. It protects the stage from the effects of variable-temperature environments and friction-induced self-heating, ultimately providing stability to the user’s process, even in extreme industrial environments.

Dimensions

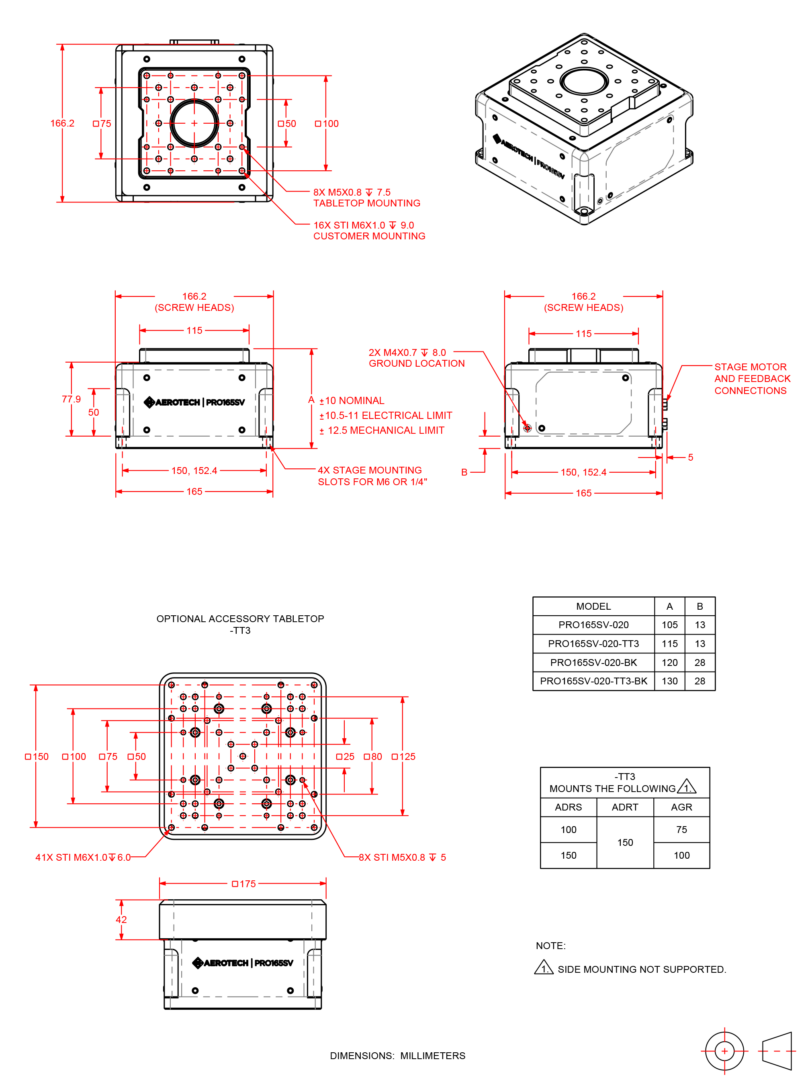

PRO165SV-020

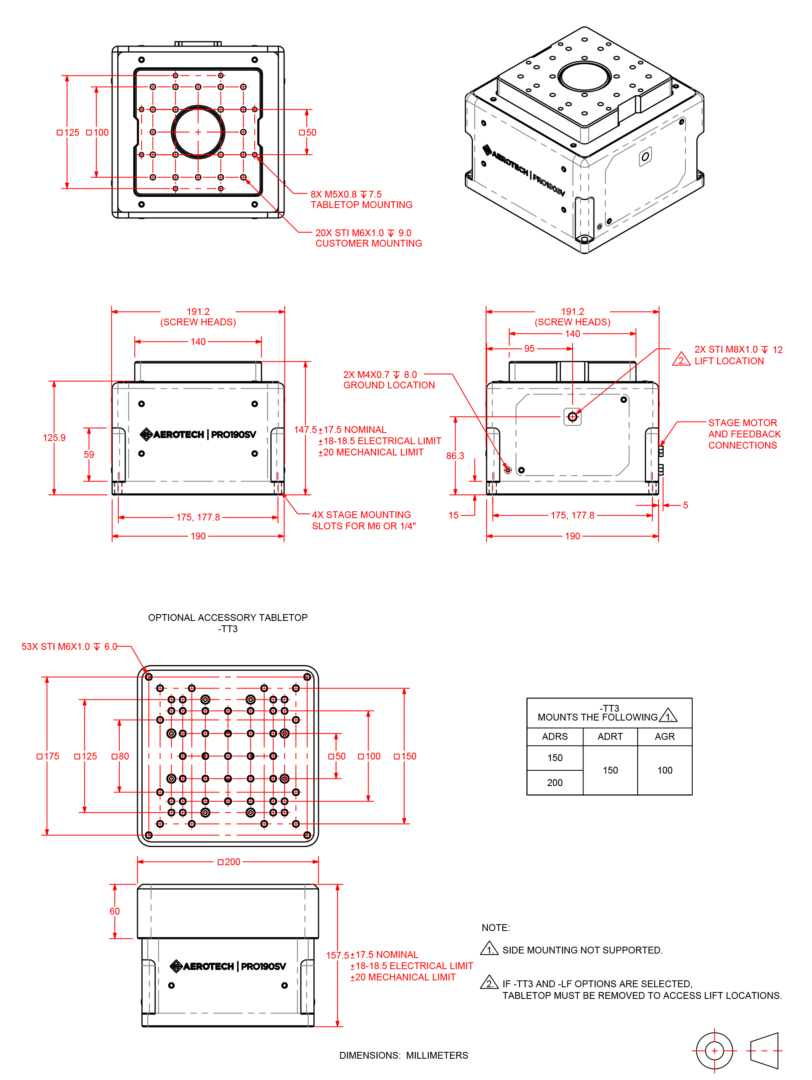

PRO190SV-035

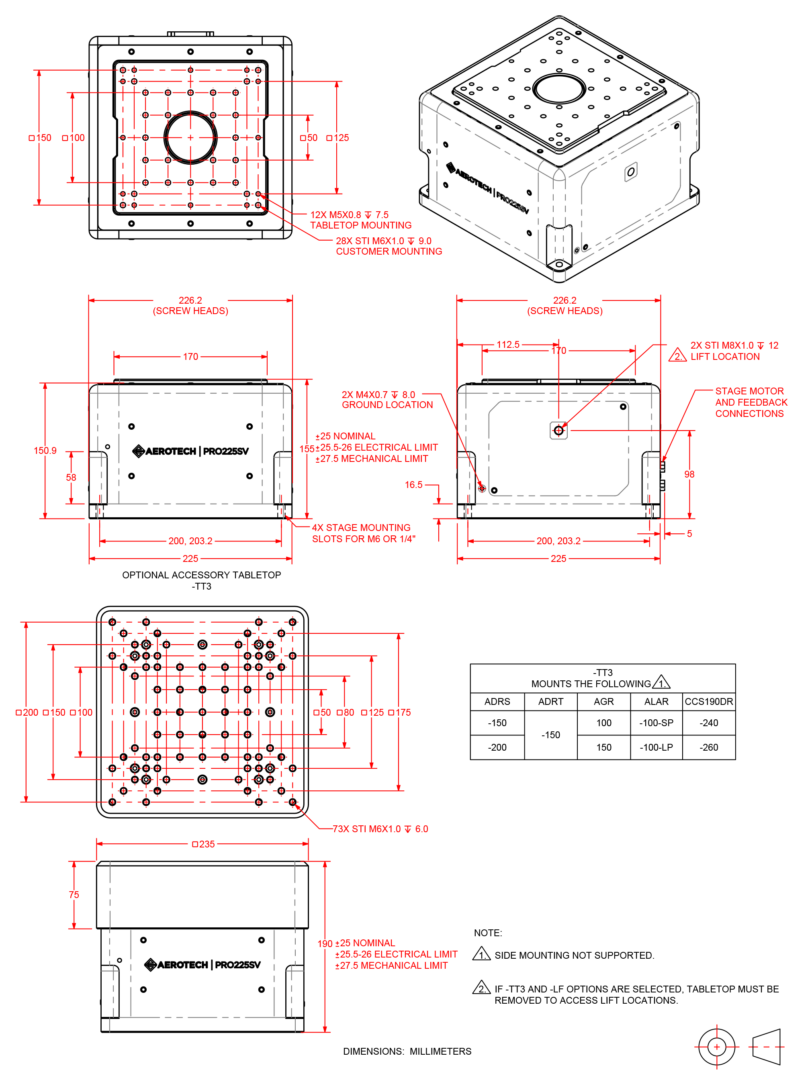

PRO225SV-050



Ordering Information

PRO-SV Long-Travel Lift Stage

Option Description
PRO165SV-020 PRO165SV mechanical-bearing, ball-screw lift stage, 20 mm travel
PRO190SV-035 PRO190SV mechanical-bearing, ball-screw lift stage, 35 mm travel
PRO225SV-050 PRO225SV mechanical-bearing, ball-screw lift stage, 50 mm travel

Feedback (Required)

Option Description
-E1 Rotary incremental encoder, 1 Vpp
-E2 Rotary incremental encoder, digital RS-422
-E3 Direct linear encoder, 1 Vpp + rotary encoder, 1 Vpp (dual-loop)
-E4 Direct linear encoder, 1 Vpp + rotary encoder, digital RS-422 (dual-loop)
-E5 Direct linear encoder, digital RS-422 + rotary encoder, 1 Vpp (dual-loop)
-E6 Direct linear encoder, digital RS-422 + rotary encoder, digital RS-422 (dual-loop)
-E7 Absolute linear encoder + rotary encoder, 1 Vpp (dual-loop)

Tabletop (Optional)

Option Description
-TT3 Accessory tabletop with mounting for select rotary stages

Brake (Optional)

Option Description
-BK Holding brake
Note:
  1. The holding brake option is recommended when the payload exceeds 75% of the load capacity as a precaution in the event that power to the stage is unexpectedly lost.

ThermoComp (Optional)

Option Description
-TCMP ThermoComp integrated thermal compensation

Metrology (Required)

Option Description
-PL0 No metrology performance plotws
-PL1 Metrology, uncalibrated with performance plots
-PL2 Metrology, calibrated (HALAR) with performance plots

Integration (Required)

Option Description
-TAS Integration - Test as system

Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration.
-TAC Integration - Test as components

Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system.
