Design Features

  • Ultra heavy-duty load capacity with premium geometric performance
  • Best-in-class geometric performance ensures superior workpoint accuracy
  • Excellent motion & positioning performance in a cost-effective package
  • Rugged, reliable construction is ideal for versatile industrial use
  • Hardcover & side seals offer protection against contamination & particulates
  • Vacuum- & cleanroom-compatible versions available

Key Applications

PRO560SL mechanical bearing, ball-screw stages are extremely versatile, trusted and proven in medium- and high-performance applications, such as:

  • Laser material processing
  • Precision metrology, inspection & microscopy
  • Electronics & circuit board manufacturing & inspection
  • Display processing
  • Synchrotron & light source experiments
  • Medical device manufacturing
  • Semiconductor fabrication
  • Fiber optics & silicon photonics processing
  • Additive manufacturing & precision assembly

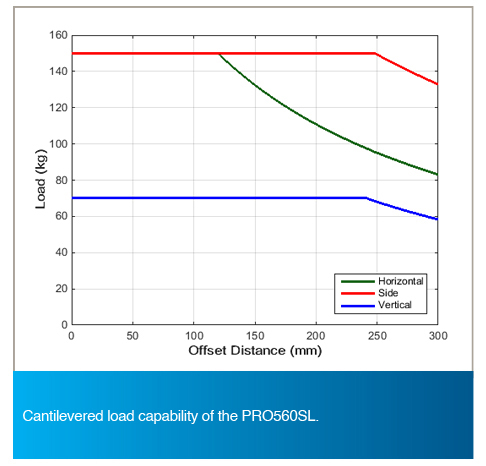

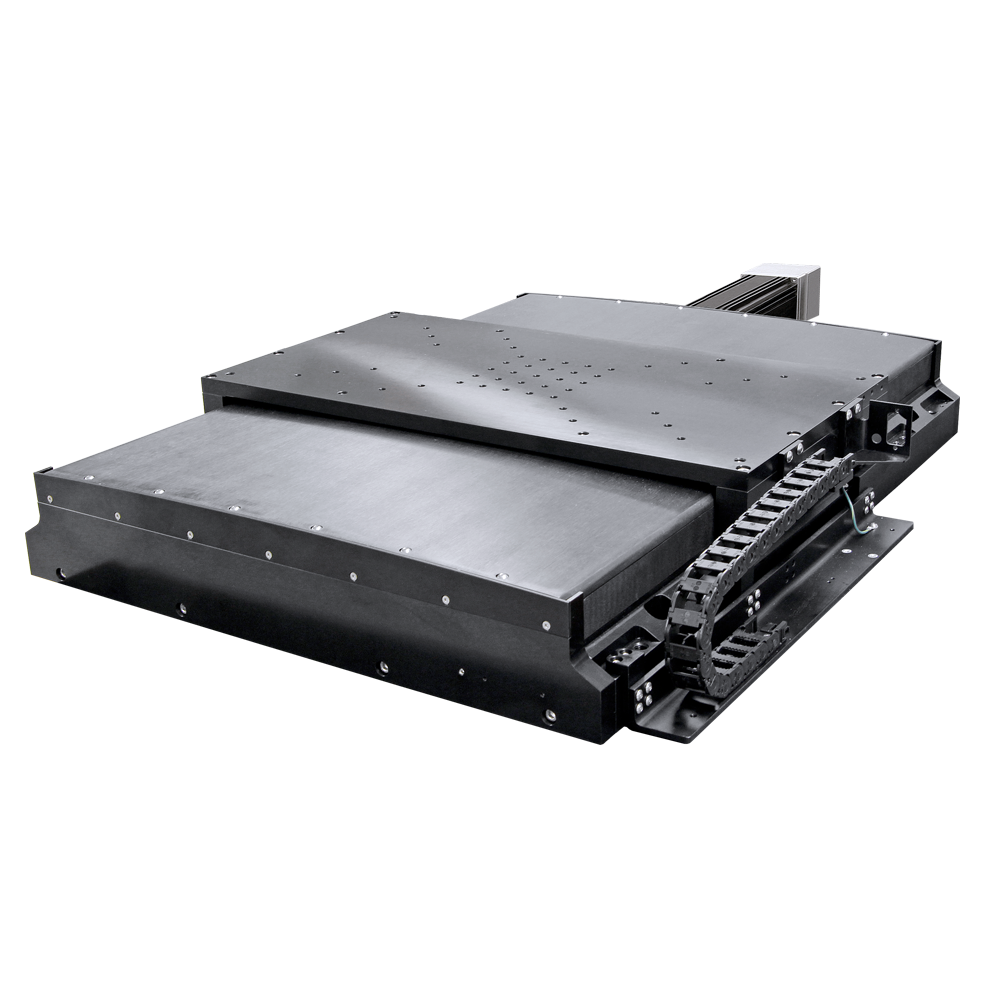

Rugged & Reliable Mechanical Construction

A long-life recirculating linear guide bearing system, a precision-ground ball screw and a low-friction sealing solution make the PRO560SL an attractive choice for industrial applications such as laser machining, precision metrology, and electronics manufacturing and inspection. The PRO560SL’s durable construction provides protection from debris while the side seals prevent particulate matter from entering the stage. The curved hardcover design provides a natural shape that prevents excessive contamination from collecting on the stage. Capable of accommodating an ample payload range, PRO560SL stages are easy and intuitive to integrate, set up and operate. They also deliver an exceptionally long lifetime of consistent positioning performance.

Design & Integration Flexibility

The PRO560SL’s many standard features and options make it incredibly flexible, so you can easily tailor it to your application. The base mounting holes are accessible from the outside of the stage, allowing for easy horizontal or vertical mounting to both metric and English optical tables and other interfaces. The stage tabletop comes standard with a metric mounting pattern to accommodate your payload, process equipment or even another axis of motion.

Brushless servo motors are available with a variety of encoder feedback options, providing electrical resolutions ranging from 0.5 µm down to the sub-nm level. For vertical applications, the motor can be equipped with a fail-safe holding brake.

PRO560SL stages can be prepared for use in special environments by request. Contact us to learn about compatibility in vacuum chambers, cleanrooms and more.

Automate with Professional-Grade Motion

Our PRO-series stages are available in many sizes and configurations to accommodate an equally diverse range of user needs and application requirements. In addition to the PRO-SL series of ball-screw stages, we offer PRO-LM direct-drive  linear stages, which are equipped with powerful linear motors for smooth, high-dynamic performance. PRO stages are offered in six widths ranging from 115 mm to 560 mm (depending on your application’s space constraints and payload requirements) plus travel lengths ranging from 50 mm to 1000 mm or longer. Also available in a vertical elevator-stage variant, our PRO-SV long-travel lift stages offer heavy-duty lifting capacity and can be easily mounted to PRO-SL and PRO-LM linear stages.

Aerotech PRO-series stages make it easier to build and integrate multi-axis assemblies and motion systems—whether you prefer to do it yourself or leave it to our motion and automation professionals.



Ordering Information

PRO560SL Series Linear, Ball-Screw Stage

Travel (Required)

Option Description
-0300 300 mm travel stage
-0400 400 mm travel stage
-0500 500 mm travel stage
-0600 600 mm travel stage
-0800 800 mm travel stage
-1000 1000 mm travel stage

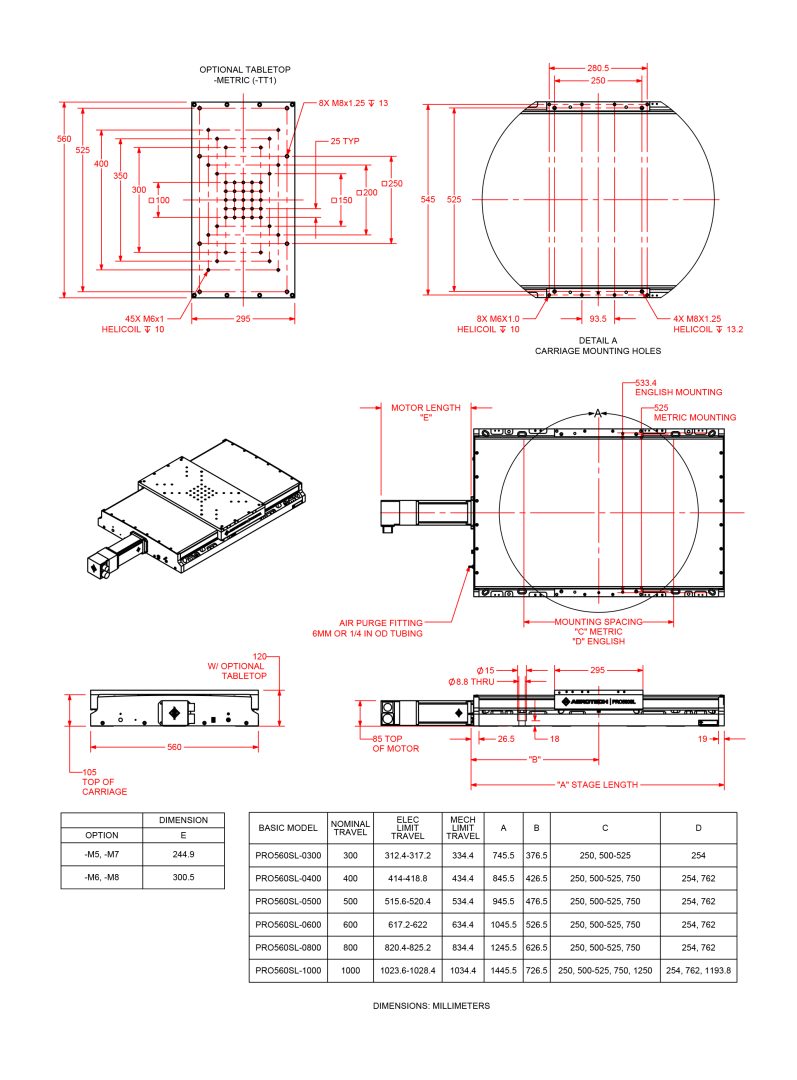

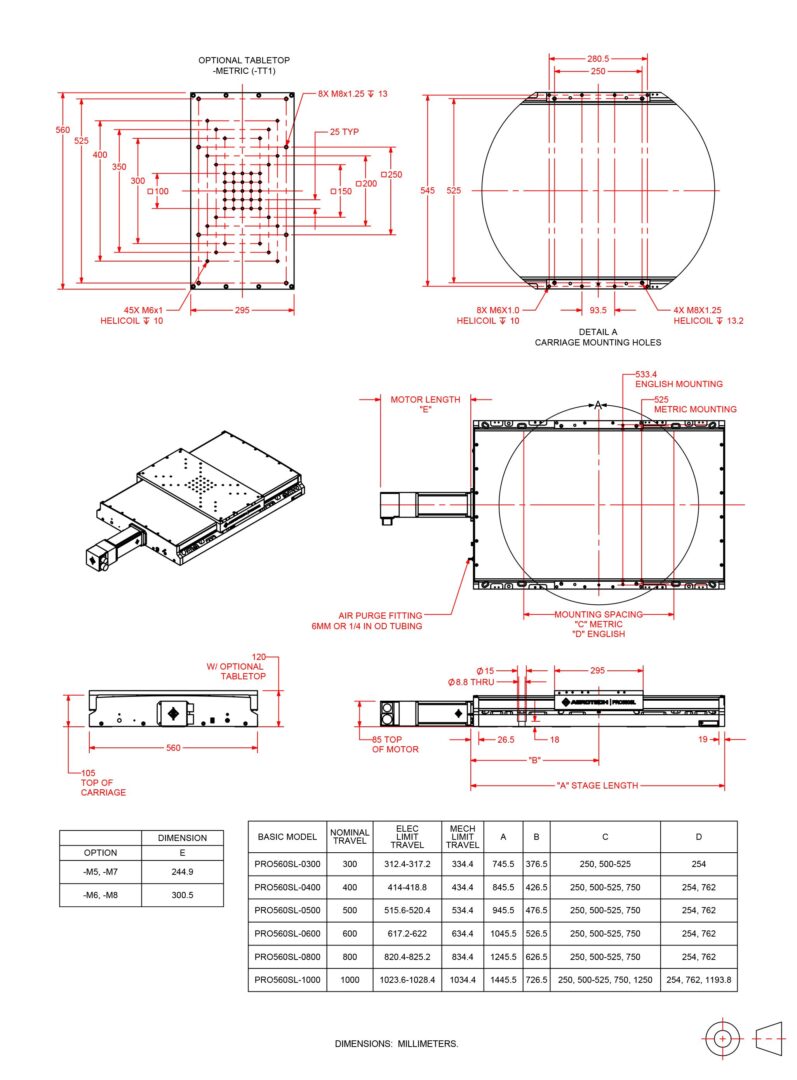

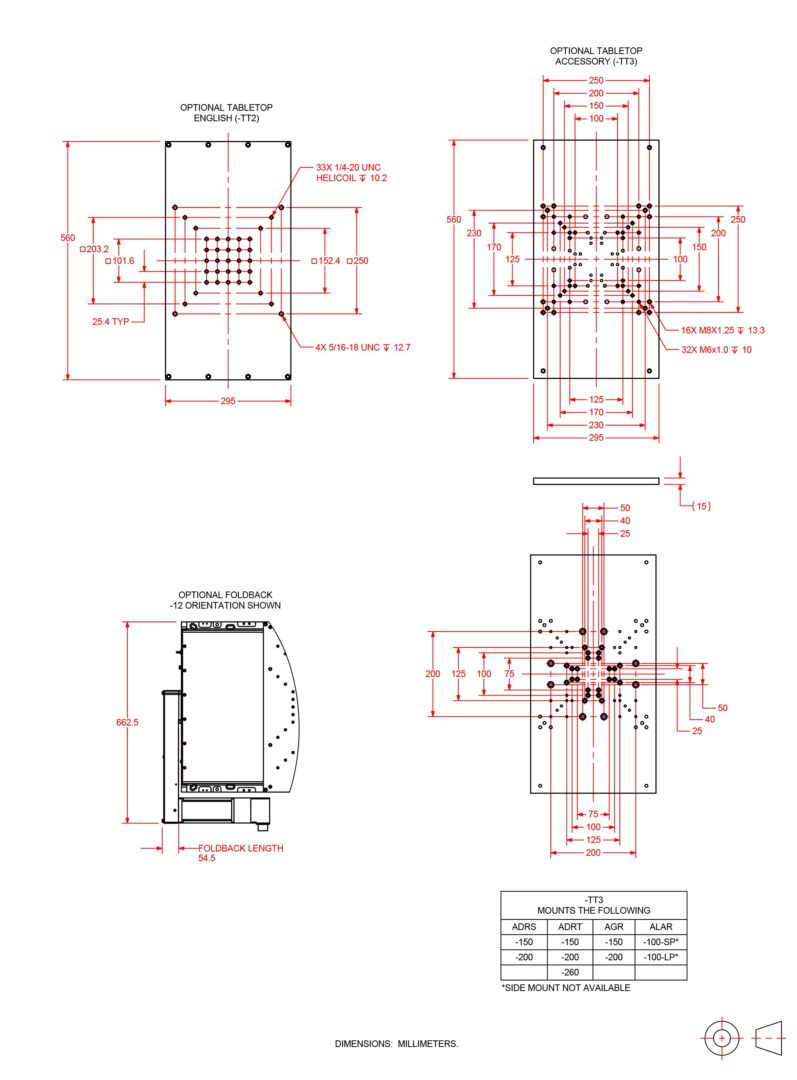

Tabletop (Optional)

Option Description
-TT1 Tabletop with metric dimension mounting
  1. Other tabletop options are available upon request. Contact Aerotech for more information.

Motor (Optional)

Option Description
-M5 BM500 brushless servomotor and 2500-line TTL encoder
-M6 BM500 brushless servomotor, 2500-line TTL encoder, and brake
-M7 BM500 brushless servomotor and 1000-line 1 Vpp encoder
-M8 BM500 brushless servomotor, 1000-line 1 Vpp encoder, and brake
  1. Other motor options are available upon request. Contact Aerotech for more information.

Motor Orientation (Optional)

Option Description
-2 Bottom cable exit, option orientation
-3 Left-side cable exit, standard orientation
  1. Other mounting orientation options are available upon request. Contact Aerotech for more information.

Limits (Required)

Option Description
-Ll1 Normally-closed limit switches; 5 VDC with 9Pin D connector
  1. Other limit options are available upon request. Contact Aerotech for more information.

Coupling (Optional)

Option Description
-CP1 Coupling for 0.500 inch diameter shaft

Lifting Hardware (Optional)

Option Description
-LF Lifting hardware
  1. Lifting option available on all travels. Lifting should never be ordered on the upper-axis of an XY set (only order on lower-axis).

Metrology (Required)

Option Description
-PL0 No metrology performance plots
-PL1 Metrology, uncalibrated with performance plots
-PL2 Metrology, calibrated (HALAR) with performance plots

Integrated (Required)

Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.

Option Description
-TAS Integration - Test as system
Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration.
-TAC Integration - Test as components
Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system.

Accessories (to be ordered as separate line item)

Option Description
ALIGNMENT-NPA Non-precision XY assembly
ALIGN-PA10 XY assembly; 10 arc sec orthogonality. Alignment to within 7 microns orthogonality for short travel stages.
ALIGN-PA5 XY assembly; 5 arc sec orthogonality. Alignment to within 3 microns orthogonality for short travel stages.
