ADRS Mechanical-Bearing Direct-Drive Rotary Stage
ADRS stages combine direct-drive brushless technology with a low profile to increase throughput and minimize “stack-up” errors at your work point. Because they achieve quicker acceleration and higher top speeds than gear- or belt-driven mechanisms, ADRS stages yield higher overall throughput. Plus, with no brushes to replace and no gear trains or belts to maintain, they’re optimized for 24/7 production environments and result in lower total cost of ownership.
Interested in buying online? Learn more here.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Design Features
- Maximizes positioning performance with direct-drive brushless motor technology
- Delivers high-torque output
- Offers outstanding velocity stability due to cog-free slotless motor design
- Uses direct coupled, high-accuracy rotary encoder
- Yields high throughput and low total cost of ownership
- Provides a clear aperture that can be used for product feed-through or laser beam delivery
- Minimizes working height
- Designed for 24/7 production environments that required precise, low-maintenance components
Key Applications
ADRS is ideal for 24/7 production environments that required precise, low-maintenance components, including:
- Rotary indexing and alignment
- Precision testing, measurement and inspection
- Sensor testing
- Semiconductor wafer processing
- Precision manufacturing and automation
- Laser microprocessing
Superior Alternative to Belt- and Worm-Drive Stages
Aerotech’s ADRS series combines direct-drive brushless technology with a low profile to increase throughput and minimize “stack-up” related errors at your work point. With no brushes to replace and no gear trains or belts to maintain, direct-drive technology is optimized for 24/7 production environments. It provides quicker acceleration and higher top speeds than gear- or belt-driven mechanisms, yielding higher total overall throughput. The low-maintenance and high-performance characteristics of the ADRS series result in a lower total cost of ownership.
Multiple Configurations to Meet Your Needs
The ADRS series is available in 100 mm, 150 mm and 200 mm versions and can be configured with a variety of encoder options for high-precision position feedback. Alternate motor windings provide the flexibility to achieve either low-current or low-voltage operation at a given speed.
Metric and English pattern tabletops are available, and slotted mounting holes enable attachment to 25 mm and 1-inch hole pattern breadboards. Tabletops also feature a labyrinth seal to protect the bearings and encoder from contamination. Add an optional lower seal to the shaft for applications where the bottom of the stage is exposed to contamination.
Dimensions

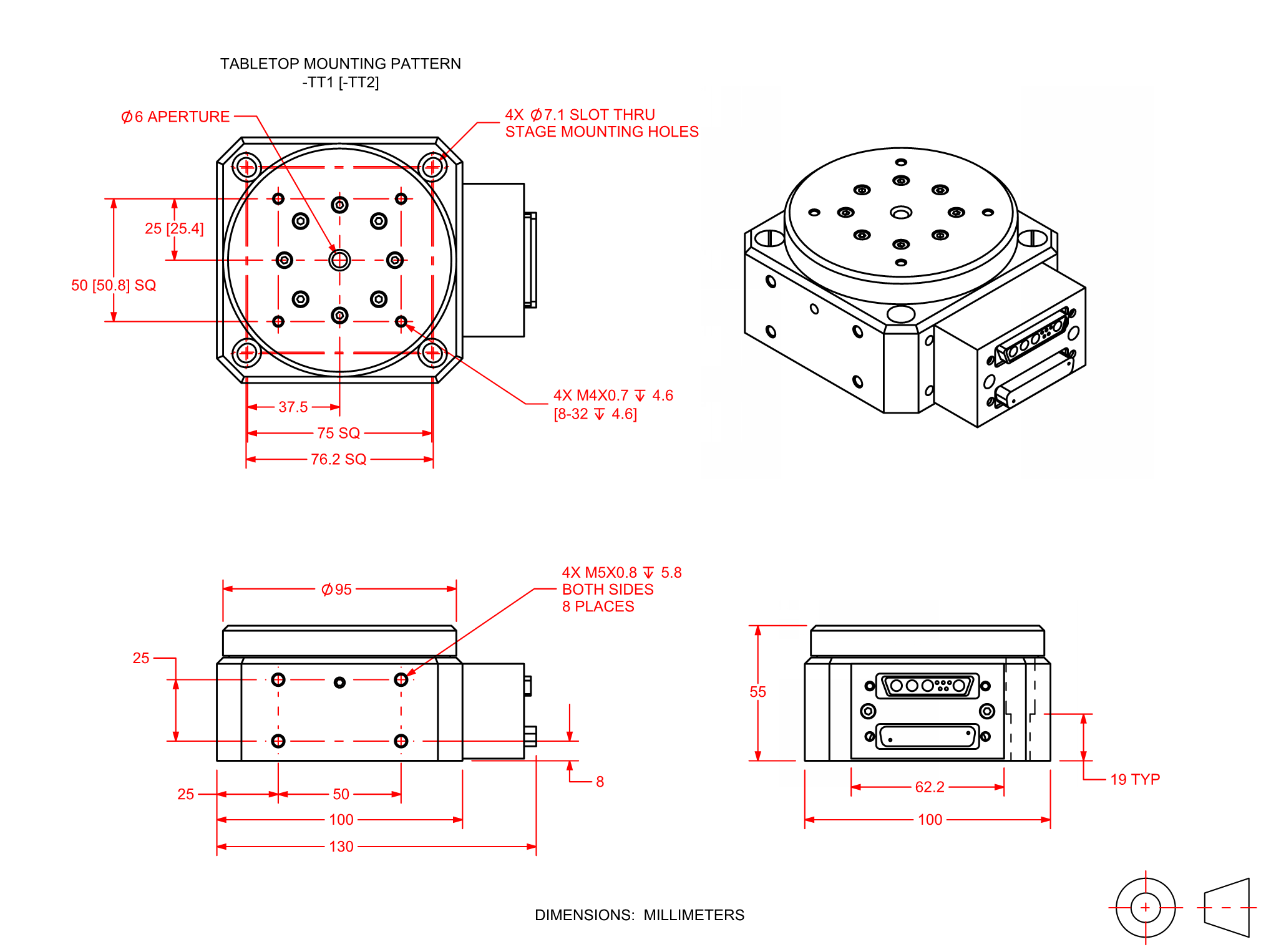

ADRS100

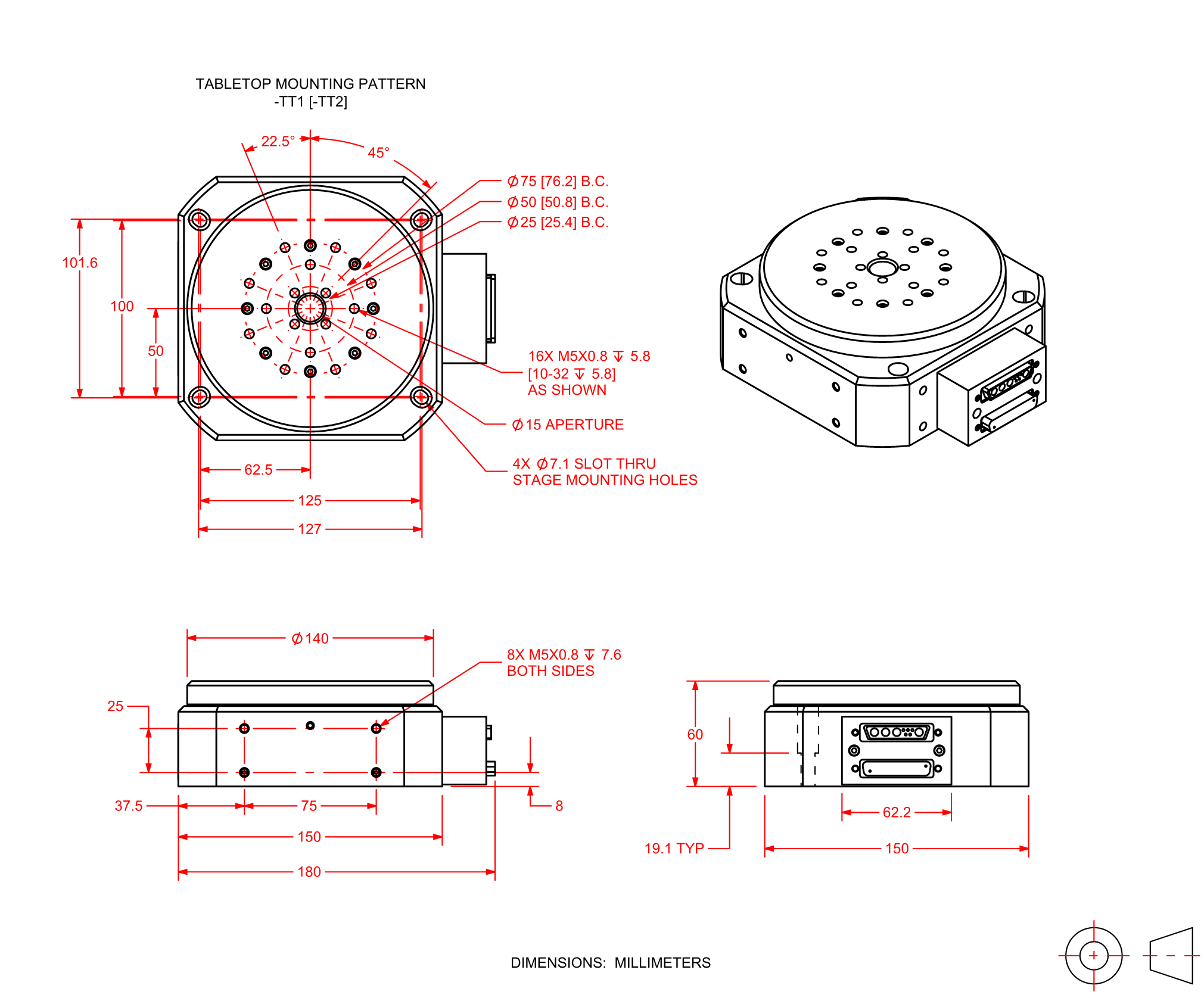

ADRS150

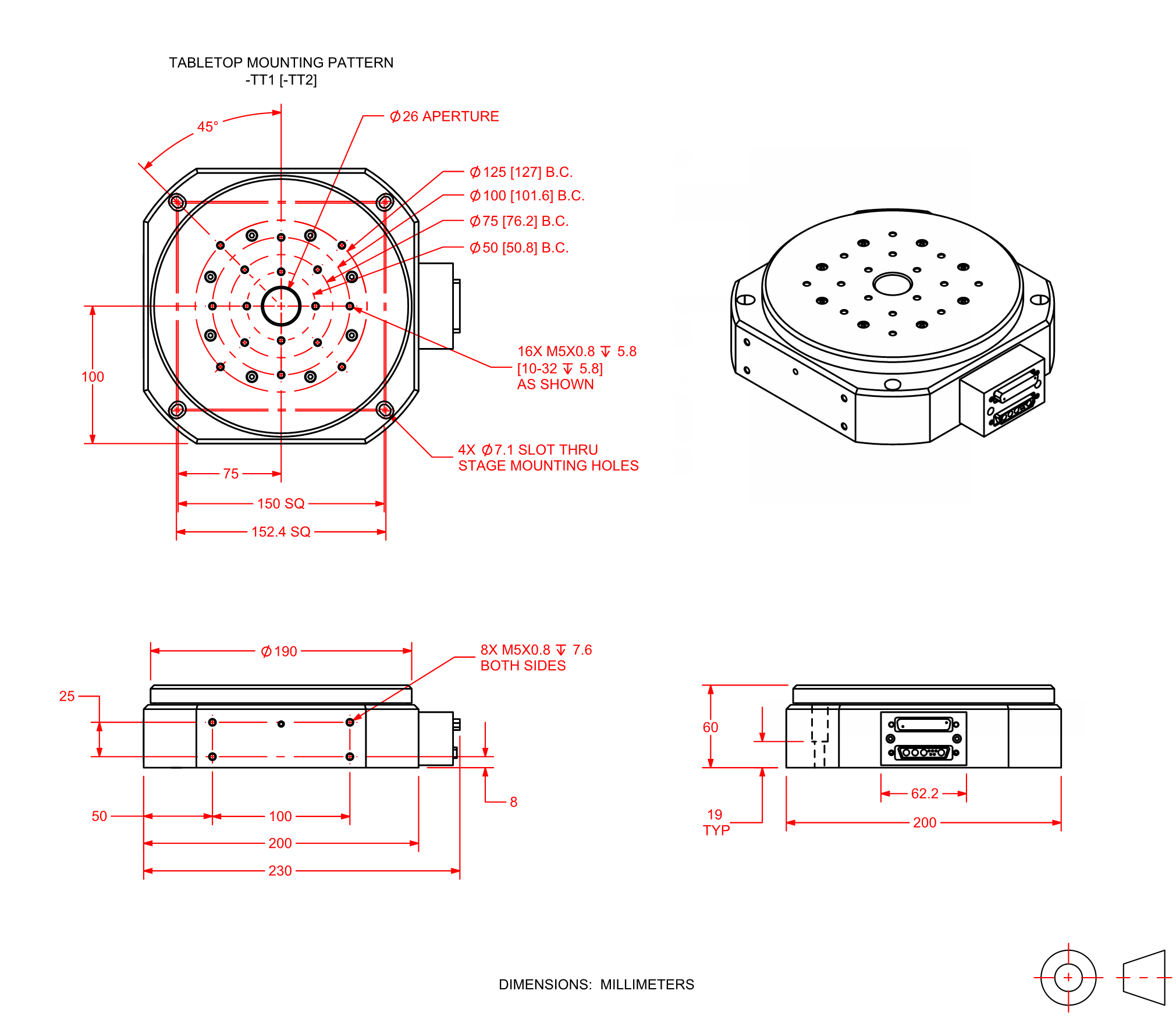

ADRS200
Ordering Information
ADRS Mechanical-Bearing Direct-Drive Rotary Stage
| Option | Description |
| ADRS100 | ADRS100 mechanical-bearing direct-drive rotary stage |
| ADRS150 | ADRS150 mechanical-bearing direct-drive rotary stage |
| ADRS200 | ADRS200 mechanical-bearing direct-drive rotary stage |
Feedback (Required)
| Option | Description |
| -E6 | Incremental encoder, 1 Vpp |
| -E7 | Incremental Encoder, digital RS422, electrical resolution 10.24 arc sec (ADRS100) or 6.48 arc sec (ADRS150, ADRS200) |
| -E8 | Incremental Encoder, digital RS422, electrical resolution 5.12 arc sec (ADRS100) or 3.24 arc sec (ADRS150, ADRS200) |
| -E9 | Incremental Encoder, digital RS422, electrical resolution 2.56 arc sec (ADRS100) or 1.62 arc sec (ADRS150, ADRS200) |
| -E10 | Incremental Encoder, digital RS422, electrical resolution 1.02 arc sec (ADRS100) or 0.65 arc sec (ADRS150, ADRS200) |
Motor (Required)
| Option | Description |
| -M1 | Low current, -A winding |
Tabletop (Required)
| Option | Description |
| -TT1 | Metric tabletop |
| -TT2 | English tabletop |
Lower Seal (Optional)
| Option | Description |
| - | No lower seal |
| -SL | Rear seal |
- Lower Seal not available for the ADRS100
Metrology (Required)
| Option | Description |
| -PL1 | Metrology, uncalibrated with performance plots |
| -PL2 | Metrology, calibrated (HALAR) with performance plots |
Integration (Required)
Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.
| Option | Description |
| -TAS | Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration. |
| -TAC | Integration - Test as components Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system. |
