AGV-CA Camera Adapter for 2 & 3 Axis Laser Scan Heads

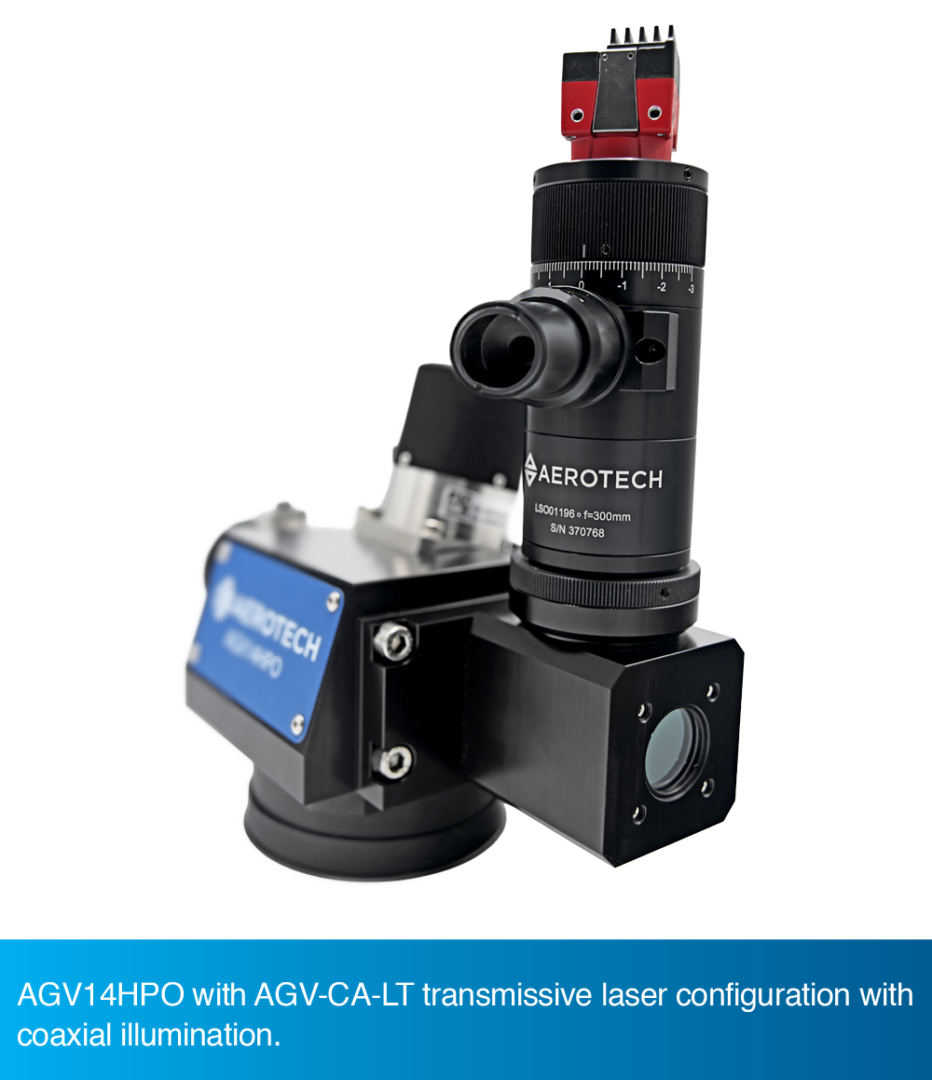

AGV14HPO with AGV-CA-LT transmissive laser configuration with coaxial illumination.
AGV-CA-LR reflective laser configuration without coaxial illumination.

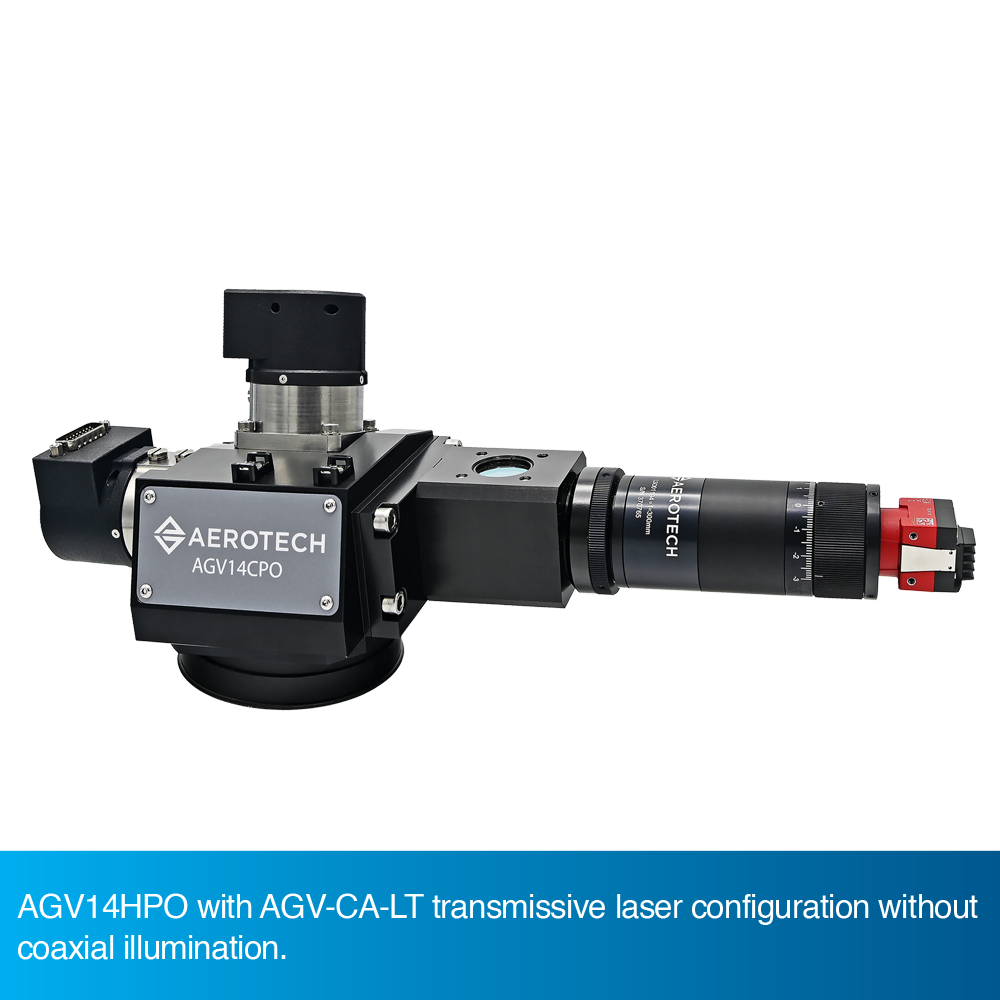

AGV14HPO with AGV-CA-LT transmissive laser configuration without coaxial illumination.

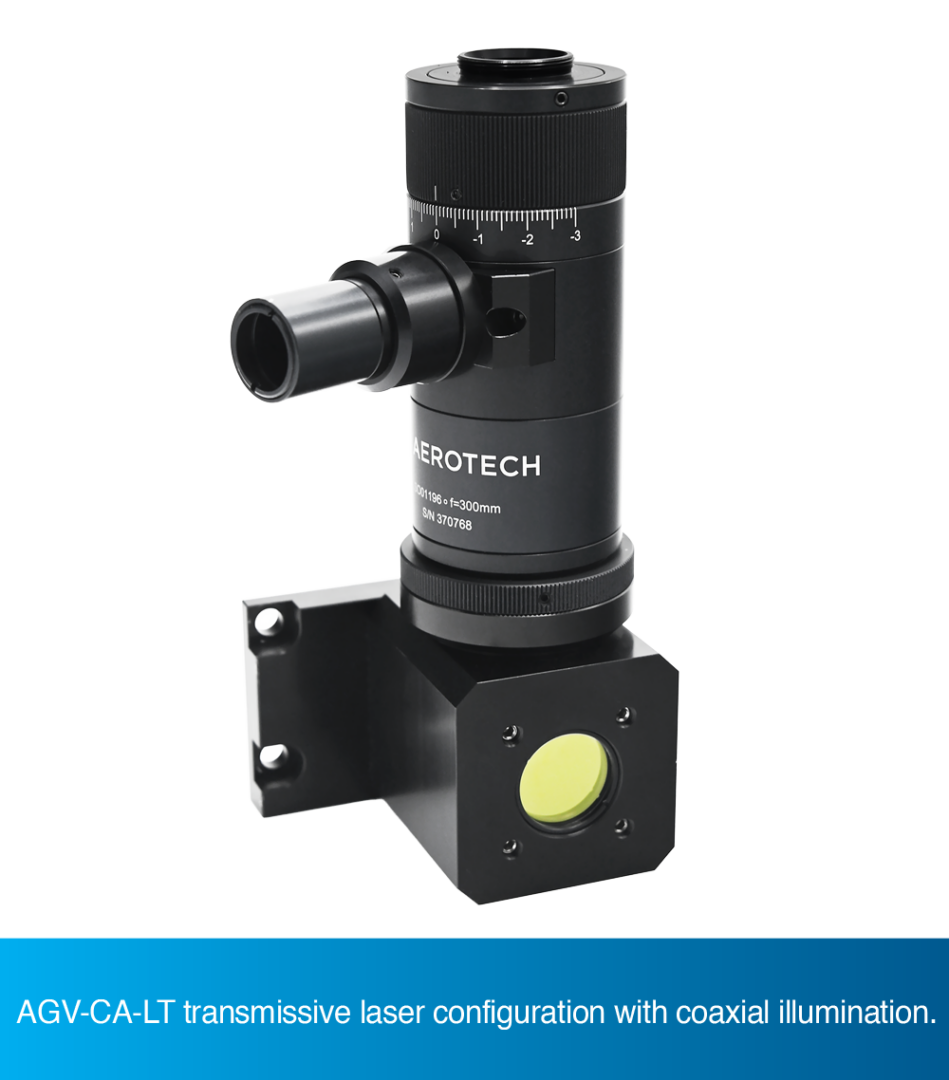

AGV-CA Camera Adapter for 2 & 3 Axis Laser Scan Heads
AGV14HPO with AGV-CA-LT transmissive laser configuration with coaxial illumination.
AGV-CA-LR reflective laser configuration without coaxial illumination.
AGV14HPO with AGV-CA-LT transmissive laser configuration without coaxial illumination.

AGV-CA Camera Adapter for 2 & 3 Axis Laser Scan Heads

The AGV-CA camera adapter enables digital imaging of the laser scan heads’ focal plane for part alignment, quality assessment, and any other automated machine vision application. A multi-wavelength, all-reflective design ensures maximum laser power transmission and ultimate application flexibility. Designed specifically for high-resolution monochrome imaging applications required by industrial machine builders to minimize their machine footprint and maximize productivity, the AGV-CA sets the standard for through-laser scan head imaging performance.

Have questions? Contact an Aerotech expert.
Request a Quote
Description

Key Features

  • High-Resolution Monochrome Imaging of 2D & 3D laser scanners’ field of view (FOV)
  • Choose from 150 mm or 300 mm focal length lenses to enable imaging of features as small as 5 µm
  • Supports CW to Ultrafast pulsed YB:YAG(1064nm) and ND:YAG (1030nm) lasers and their harmonics
  • Enclosure is resistant to ingress of particles and process debris
  • Adjustable (0/90/180/270°) input aperture/camera positioning

Key Applications

AGV-CA is ideal for laser scan head imaging applications, including:

  • Part identification & alignment
  • Automated scanner calibration
  • Laser process quality assessment
  • Machine vision applications

Flexible & Configurable

The AGV-CA offers either 100% reflective (-LR) or transmissive options (-LT1/2) for the laser input configuration; these configurations change the position of the laser input aperture and lens to best suit any laser power and machine integration application requirements.  Additionally, the AGV-CA enables users the flexibility to orient the lens body or input aperture (configuration dependent) between 0-90-180-270° orientations to best fit into any free-space or fiber-delivered beam line. Both reflective and transmissive input beams feature an SM1-threaded input for adapting lens tubes used to create sealed beamlines and other optical components. Finally, user interchangeable galvo laser scan head mounting flanges enable compatibility with 10, 14, & 20 mm AGV 2-axis laser scan heads (CPO/HPO/XPO) as well as all  AGV3D models in both right and left side beam entry configurations.

*Customized beam splitter coatings are possible; contact Aerotech sales for more information.

High Performance, Durable Optics For Industrial Ultrafast Lasers

The AGV-CA features dichroic beam splitters and transmissive protective windows that support CW to Ultrafast pulsed YB:YAG(1064nm) and ND:YAG (1030nm) lasers and their harmonics in visible and UV wavelengths**. All configurations have premium optical coatings with Laser-Induced Damage Threshold (LIDT) performance*** able to support modern pulsed lasers with average powers exceeding 100W and pulse durations down to 200 fs. The AGV-CA enclosure is designed to enable positive pressurization to prevent dust ingress and offers some passive cooling of the camera adapter optics when paired with an AGV that has air cooling (-AC option) installed.

** -LR reflective laser configuration reflects IR (1025-1085nm), Visible (510-540nm), and UV (335-360nm) laser wavelengths; -LT1 transmissive laser configuration transmits only UV (335-360nm); -LT2 transmissive laser configuration transmits both IR (1025-1085nm) and Visible (510-540nm) wavelengths.

***LIDT performance data for supported wavelengths available upon request.

Superior Imaging Performance

The AGV-CA enables high-resolution monochrome imaging using 620-650 nm red light, supporting C-mount cameras with sensor formats up to 2/3 and pixel sizes down to 1.6 µm****. It can be configured with either 150 mm or 300 mm focal-length lenses, which focus at infinity.  The optics leverage the laser scan head’s F-theta objective to create a sharp, high-contrast digital image for various applications, from finding and aligning to part features to dimensional process quality measurements.  When configured with the highest-resolution 300 mm focal-length lens, the AGV-CA is capable of resolving down to 5 µm features. These capabilities enable AGV-CA to resolve the smallest details and perform the most demanding industrial machine vision applications without the need for auxiliary imaging systems.

**** This reflects a validated camera configuration; users must select a camera for their application. Pixel size and sensor format will impact the final image resolution performance.

Specifications

Specifications

AGV-CA10AGV-CA14AGVCA20 & AGV3D
Laser Beam Clear Aperture(1)10 mm14 mm20 mm
Compatible Laser Wavelengths(2)-LR: 335-360 nm (UV), 510-540 nm (Visible) and 1025-1085 nm (IR)
-LT1: 335-360 nm (UV)
-LT2: 510-540 nm (Visible) and 1025-1085 nm (IR)
Observable Wavelength(3)635 nm +/- 15nm
Laser Beam Input InterfaceSM1 threaded for lens tubes or 4-bolt 30mm cage system (or other coupler)
Laser Power Efficiency-LR: >99%
-LT1/2: >98%
Laser Input/Camera Orientation Adjustment(4)360°, fully adjustable
Notes:
  1. Clear aperture represents the smallest aperture within the optical path for both the laser beam and imaging.
  2. Laser compatibility includes beam splitter and input cover glass for only, note -LR and LT1/2 are compatible with different laser wavelengths.
  3. Observation wavelength limited by bandpass filter installed on lens.
  4. Camera orientation only compatible with -LT1/2 laser configurations. With -LR configuration the input aperture is fully adjustable and the camera orientation is fixed.

Objective Lens Specifications

AGV-CA10AGV-CA14AGVCA20 & AGV3D
Imaging Lens Focal Length-F1: 150 mm

-F2: 300 mm
Minimum Resolvable Feature Size(5)-F1: 0.01 mm [10 µm]

-F2: 0.005 mm [5 µm]
Typical Field of View (FOV)(5)-F1: 3.80 X 2.85 mm

-F2: 1.90 X 1.43 mm
Notes:
  1. Based on specified lens focal length at 1030 nm with 100 mm FL F-theta objective with a 1/2.5" camera sensor, 2.2 µm pixel size.

Camera Compatibility

AGV-CA10AGV-CA14AGVCA20 & AGV3D
Recommended Camera Type(6)Monochrome
Camera Sensor Size/Format(6)Up to 2/3"
Camera Connection on Lens(6)C-mount
Notes:
  1. Camera is not included. Camera sensor format and pixel size will impact the minimum resolvable feature size specification.

Mechanical Specifications

AGV-CA10AGV-CA14AGVCA20 & AGV3D
Dimensions (L x W x H)(7)-LR: 211 X 112 X 54 mm
-LT1/2: 74 X 112 X 192 mm
Weight(7)1.25 kg
Operating Temperature15° to 35°C
Operating Humidity< 60% RH, non-condensing
Notes:
  1. Without camera.

Coaxial Illumination Specifications

AGV-CA10AGV-CA14AGVCA20 & AGV3D
LED WavelengthVisible Red
Input Voltage5V DC
Beam ConditioningDiffused
Illumination ModeContinuous

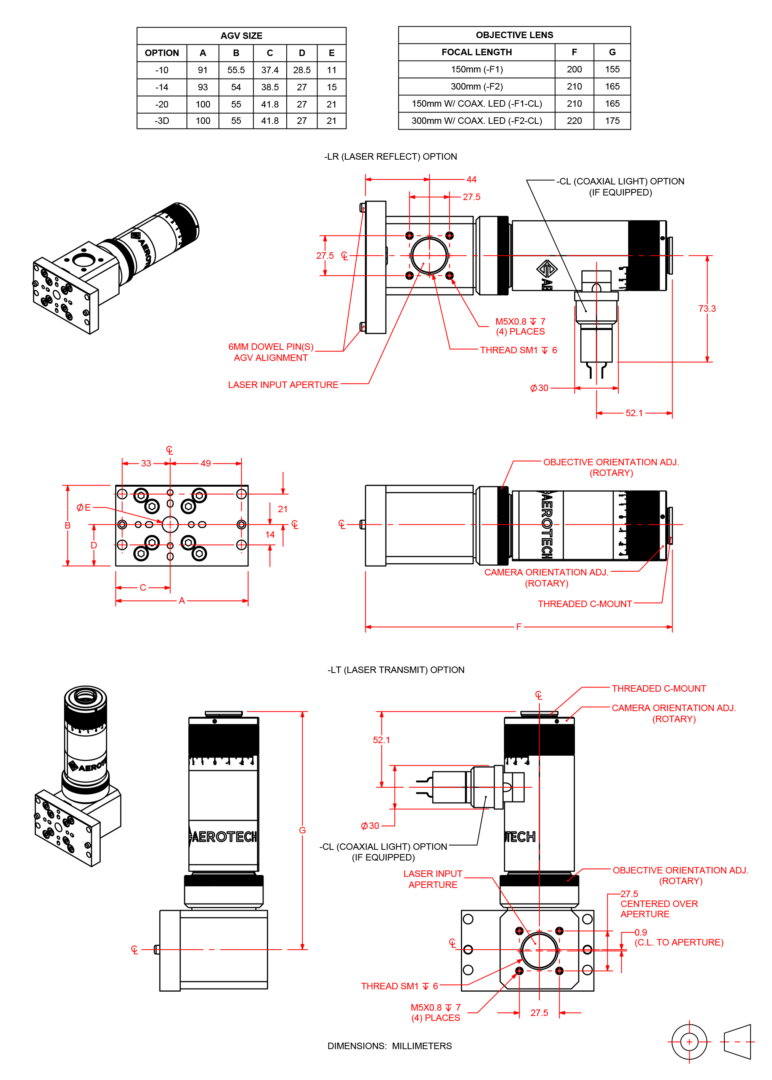

Dimensions
AGV-CA
Ordering Info
AGV-CA Scan Head Camera Adapter
OptionDescription
AGV-CAAGV Camera Adapter
Input Model Adapter (Required)
OptionDescription
-10Adapter plate for AGV10 (BE1 & BE2)
-14Adapter plate for AGV14 (BE1 & BE2)
-20Adapter plate for AGV20 (BE1 & BE2)
-3DAdapter plate for AGV3D (BE1 & BE2)
Laser Configuration (Required)
OptionDescription
-LRReflect (Laser): UV (335-360nm), Green (510-540nm), and IR (1025-1085nm)
Transmit (Image): Red (620-650nm)
-LT1Reflect (Image): Red (620-650nm)
Transmit (Laser): UV (335-360nm)
-LT2Reflect (Image): Red (620-650nm)
Transmit (Laser): Green (510-540nm), and IR (1025-1085nm
Objective Lens (Required)
OptionDescription
-F1Focal Length F=150mm
-F2Focal Length F=300mm
Illumination (Optional)
OptionDescription
NoneNo illumination
-CLWith coaxial illumination
